OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.

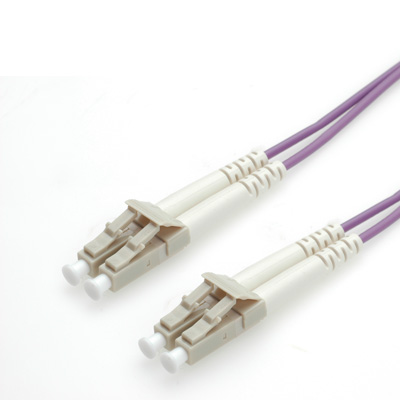

VALUE OM4 Fibre Optic Jumper cable with fiber type 50/125 µm
Color: purple
--
Technical Data:
Product group: Fibre optic cable
Product type: Fibre Optic Jumper Cables OM4
Conveyance good: No
Quantity of fibre: 2
Conductor composition: Compact conductor
Cable type: Duplex Cable
External cable: No
Fibre section: 50/125µm OM4
Length: 5.0 m
side 1 connector type: LC
side 2 connector type: LC
Colour (Cable): violet
Kevlar strain relief: Yes
Twisted: not applicable
External cable diameter: 2 mm
Mantle of external cable: PVC
Halogen free cable: No
