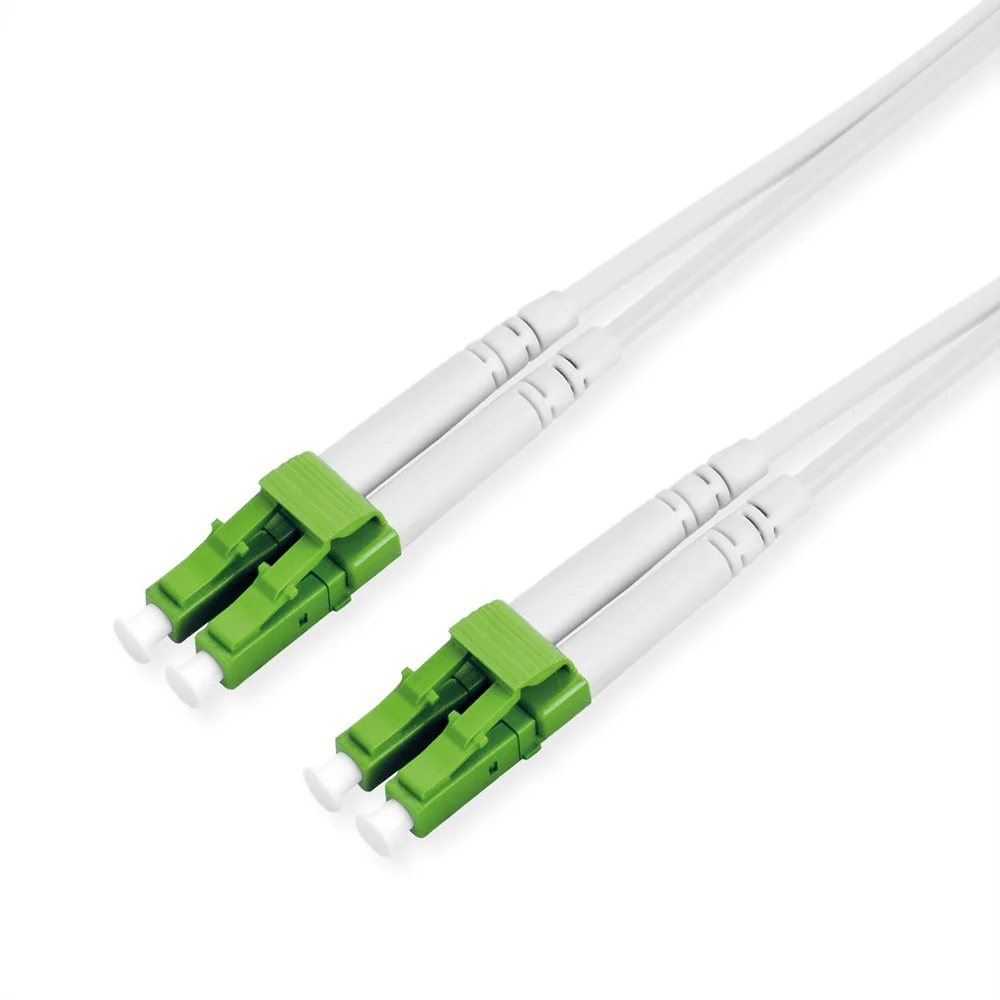

ROLINE Fibre Optic Jumper Cable Duplex, 9/125µm, OS2, LC/LC, APC, Steel Armored, white, 20 m
- Item number
- 21.15.8637-5
- Part number
- 21.15.8637
- EAN
- 7630049681859
- Brand
- ROLINE
- Weight
- 535.1 g
ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality.
- Cable sheathing made of halogen-free, low smoke and flame-retardant material
- Assembled with high-quality connectors with ceramic ferrule
- Core structure: Duplex cable I-VH
- High tensile strength due to aramid yarn strain relief
- APC Polish (Angled Physical Contact)
- Steel armored
- Compared to standard fiber optic patch cables, these cables are additionally protected by a flexible steel spiral helix
- Due to this high-quality cable construction, FO cables are tread-resistant and suitable for applications with increased mechanical demands
- Only suitable for indoor use
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OS2
- Colour
- white
- Length
- 20 m
- Quantity of fibre
- 2
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Single mode 9/125µm OS2
- Connection ports
- LC APC / LC APC
- Side 1 Connector Type
- LC APC
- Side 2 Connector Type
- LC APC
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Colour (Cable)
- white
- Aramid strain relief
- yes
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Armouring
- yes
- Max. insertion loss
- 0.3 dB
- Min. return loss
- 60 dB
- Weight
- 535.1 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.5 kg
