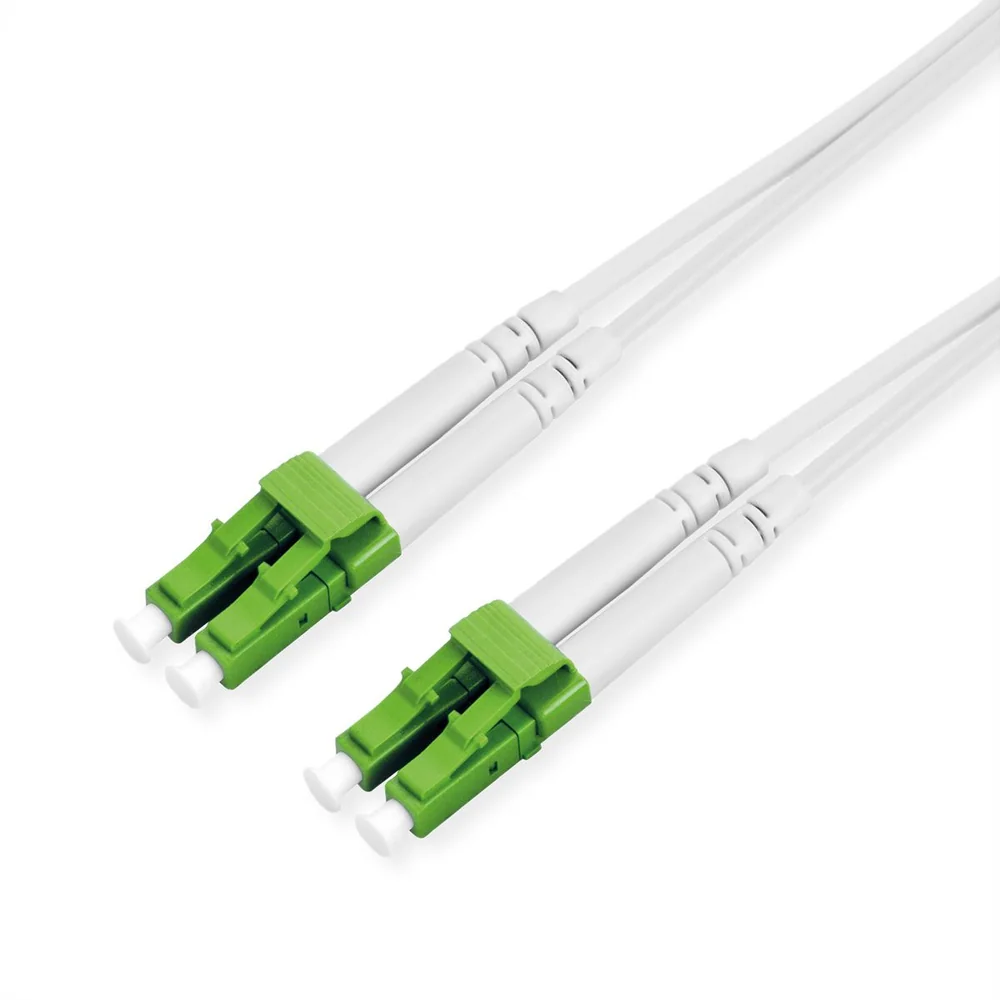

ROLINE Fibre Optic Jumper Cable Duplex, 9/125µm, OS2, LC/LC, APC, Steel Armored, white, 15 m — 1 of 2
ROLINE

ROLINE Fibre Optic Jumper Cable Duplex, 9/125µm, OS2, LC/LC, APC, Steel Armored, white, 15 m

Item number
21.15.8636-5
Part number
21.15.8636
EAN
7630049681842
Brand
ROLINE
Weight
398.6 g

ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality.

This product is not sold online — send an enquiry and we will reply with price and lead time.

Request a quote

Description

ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality.

  • Cable sheathing made of halogen-free, low smoke and flame-retardant material
  • Assembled with high-quality connectors with ceramic ferrule
  • Core structure: Duplex cable I-VH
  • High tensile strength due to aramid yarn strain relief
  • APC Polish (Angled Physical Contact)
  • Steel armored
  • Compared to standard fiber optic patch cables, these cables are additionally protected by a flexible steel spiral helix
  • Due to this high-quality cable construction, FO cables are tread-resistant and suitable for applications with increased mechanical demands
  • Only suitable for indoor use

Specifications

Product

Manufacturer
ROLINE
Product group
Fibre optic cable
Product type
Fibre Optic Jumper Cables OS2
Colour
white
Length
15 m
Quantity of fibre
2
Cable type
Duplex Cable
External cable
no
Fibre section
Single mode 9/125µm OS2
Connection ports
LC APC / LC APC
Side 1 Connector Type
LC APC
Side 2 Connector Type
LC APC
Min. Bending radius, static
30 mm
Min. Bending radius, dynamic
60 mm
Colour (Cable)
white
Aramid strain relief
yes
Cable LSOH
yes
Flame retardant according to IEC 60332-1-2
yes
Low smoke according to IEC 61034-2
yes
Halogen free according to IEC 60754-2
yes
Armouring
yes
Max. insertion loss
0.3 dB
Min. return loss
60 dB
Weight
398.6 g

Packaging

Height of packaging (single piece)
30 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
180 mm
Package weight (single piece)
0.4 kg
