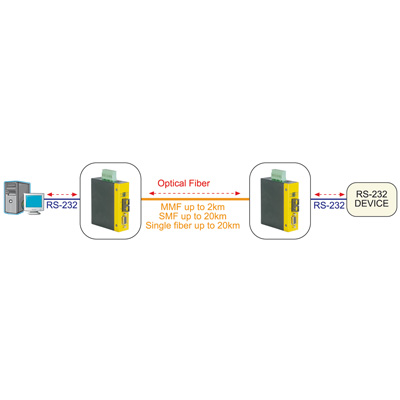

The converter is designed to provide the most versatile connection possible between 2 RS-232 serial equipment using fiber optic cable. The converter supports transparent conversion for not only RS-232 data lines, but also all RS-232 control signals. It also supports all RS-232 baud rates with no need for user configuration. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. Further, more designs such as signal protection, wide operating temperature range, wide power voltage range are also provided to suit for more industrial applications.
Transparent conversion for all RS-232 signals
Supports RS-232 baud rate higher than 115.2Kbps
Auto adaptation and conversion to any RS-232 baud received
Operation with no required configuration
Extending all RS-232 signals over long optical cables
Provides surge protection (transient voltage) on RS-232
Provides high ESD protection on RS-232 signals
Provides optical isolation between RS-232 and main circuitry
Designed for industrial environments with:
- RS-232 surge, ESD, and isolation protection
- DIN-rail and panel mounting support
- Wide power voltage range support
- Wide operating temperature range
- Alarm relay output for device power failure
- Industrial-rated emission and immunity performance
Power: Вход: 7 - 30V DC: (2.4W max.)
DC Input via terminal block or DC power jack (6.3mm/2.0mm)
Размери: 28 x 82 x 95 mm (WxDxH)
As according Power Supply Unit we recommend 21.13.1226
Технически данни:
Брой оптични портове, ST: 1
Влакно: Multimode
Managed: не
Макс. дължина 50 µm влакно: 2 km
Макс. дължина 62.5 µm влакно: 2 km
Продуктова група: Network converters
Удобство за пренасяне: Не
