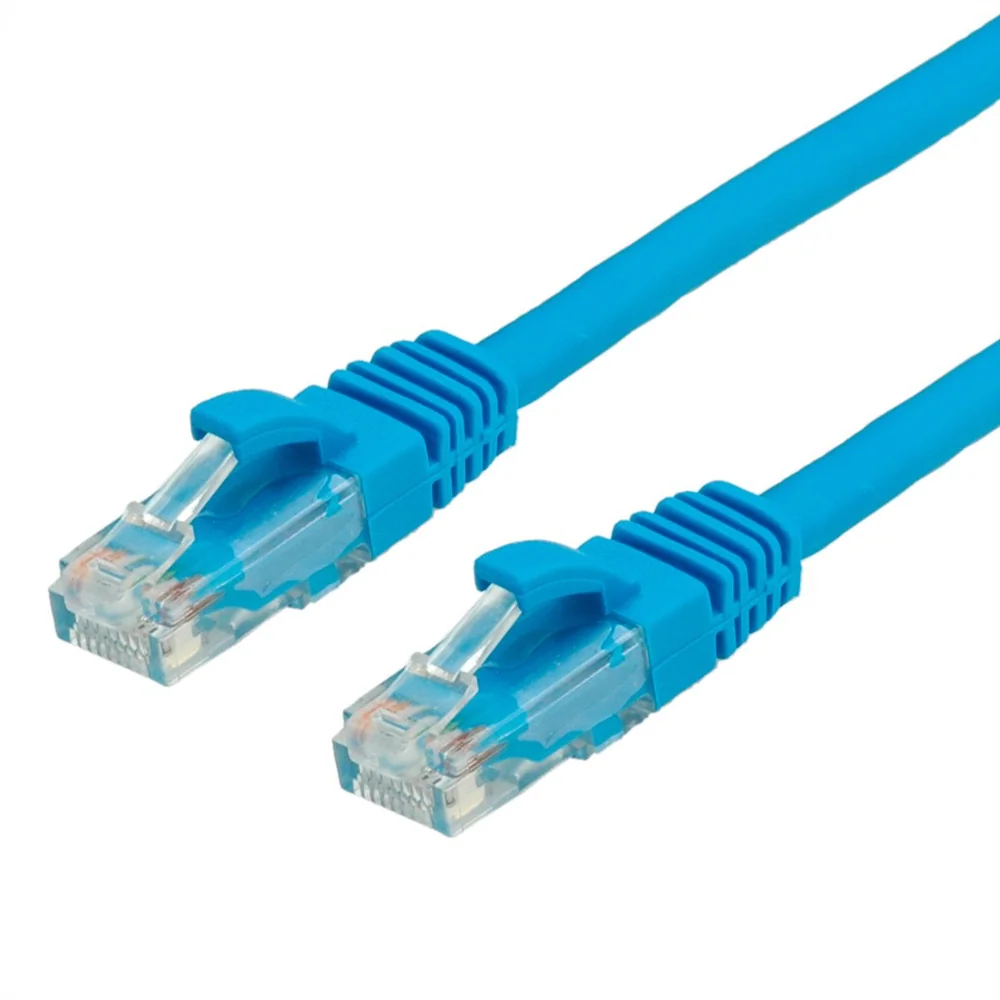

VALUE UTP Patch Cord Cat.6A (Class EA), blue, 0.3 m
- Item number
- 21.99.1454-100
- Part number
- 21.99.1454
- EAN
- 7630049692336
- Brand
- VALUE
- Weight
- 16 g
The affordable solution for Category 6A cabling for data rates up to 10Gbit / s. Twisted pair connection cable with RJ-45 connectors plugged in on both sides
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The affordable solution for Category 6A cabling for data rates up to 10Gbit / s. Twisted pair connection cable with RJ-45 connectors plugged in on both sides
- Suitable as a patch cord in patch panels or as a device connection cable
- Durable with molded kink protection
- Contact assignment 1: 1 according to EIA / TIA 568, 8 cores
- Construction: 8 cores wire
- Impedance: 100 ohms
For a structured shielded Cat.6a cabling system we recommend to use the following components:
VALUE Cat.6a UTP Cable, Solid Wire, 300 m: 21.99.1681
Flush Mount Wall Jack for Keystones: 25.16.8579
Surface Wall Mount Frame: 25.16.8484
VALUE Cat.6a Keystone, RJ-45, shielded: 26.99.0366
19" Keystone Patch Panel: 26.11.0358 / 26.11.0359
VALUE Cat.6a S/FTP Patch Cord, 5 m: 21.99.0875
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Twisted Pair Cable
- Product type
- U/UTP patch cord
- Colour
- blue
- Length
- 0.3 m
- Shield type
- U/UTP
- Transfer quality
- Cat6A / Class EA
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 24
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Assignment
- 1:1
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- blue
- Cable LSOH
- no
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Weight
- 16 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 140 mm
- Package weight (single piece)
- 0.028 kg
