VALUE Type C Video Extension Cable, USB-C (DP Alt Mode), C-C, M/F, black, 1.5 m — 1 of 3
VALUE

VALUE Type C Video Extension Cable, USB-C (DP Alt Mode), C-C, M/F, black, 1.5 m

Item number
11.99.5496-10
Part number
11.99.5496
EAN
7630049675766
Brand
VALUE
Weight
54.5 g

VALUE SUB Type-C Video Extension Cable (DP Alt Mode) for screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

This product is not sold online — send an enquiry and we will reply with price and lead time.

Request a quote

Description

VALUE SUB Type-C Video Extension Cable (DP Alt Mode) for screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

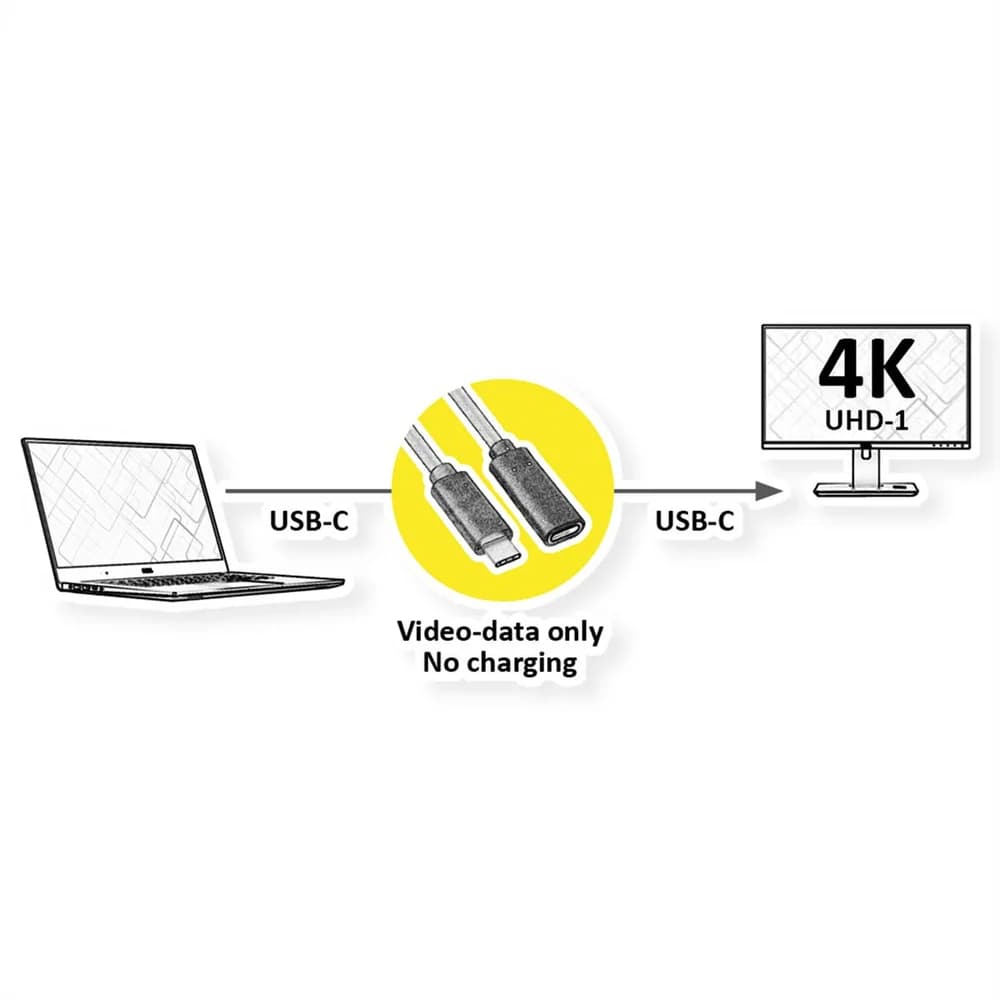

  • Extension Cable for video transmission between sources and display devices that support USB-C Alternate Mode
  • Alternate Mode (DisplayPort Alt Mode) is part of the USB Type-C interface specification and allows the transmission of DisplayPort signals (see below)
  • Since the Type-C connector requires less space, it is often found on mobile devices (ultrabooks, notebooks/laptops) and anywhere where multiple connectors need to be combined in a small space, such as on a graphics card
  • For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

Please note: This cable is not recommended for USB data transfer or as a charging cable.

What is a USB-C DisplayPort (DP Alt Mode) cable?

  • Cables with Type-C connector can offer DisplayPort technology via an alternative mode (Alt mode).
  • Alt Mode allows USB-C ports to transfer data/video via multiple interfaces, including DisplayPort video interface
  • The USB-C ports capable of transferring DisplayPort signals are called USB-C DisplayPort or DP Alt Mode
  • Allow to connect video sources (e.g. PCs, Blu-Ray players, etc.) and display devices (e.g. TVs, projectors, etc.) that support DisplayPort to each other via their USB-C ports
  • The main confusion over USB-C DisplayPort cables emerges because not all USB-C ports, available on the hardware (e.g. notebooks…) features the DisplayPort Alt Mode functionality

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Product

Manufacturer
VALUE
Product group
Cable
Product type
USB-C-Display cable
Colour
black
Length
1.5 m
Scope of delivery
Extension Cable
Transfer quality
DisplayPort v1.2
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
USB Type C (USB-C)
Side 2 Connector Gender
Female
Colour (Cable)
black
Area of application
External
Cable shielding
Screened
Operating temperature min.
0 °C
Operating temperature max.
45 °C
Storage temperature min.
-20 °C
Storage temperature max.
70 °C
Weight
54.5 g

Packaging

Height of packaging (single piece)
10 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
90 mm
Package weight (single piece)
0.035 kg
