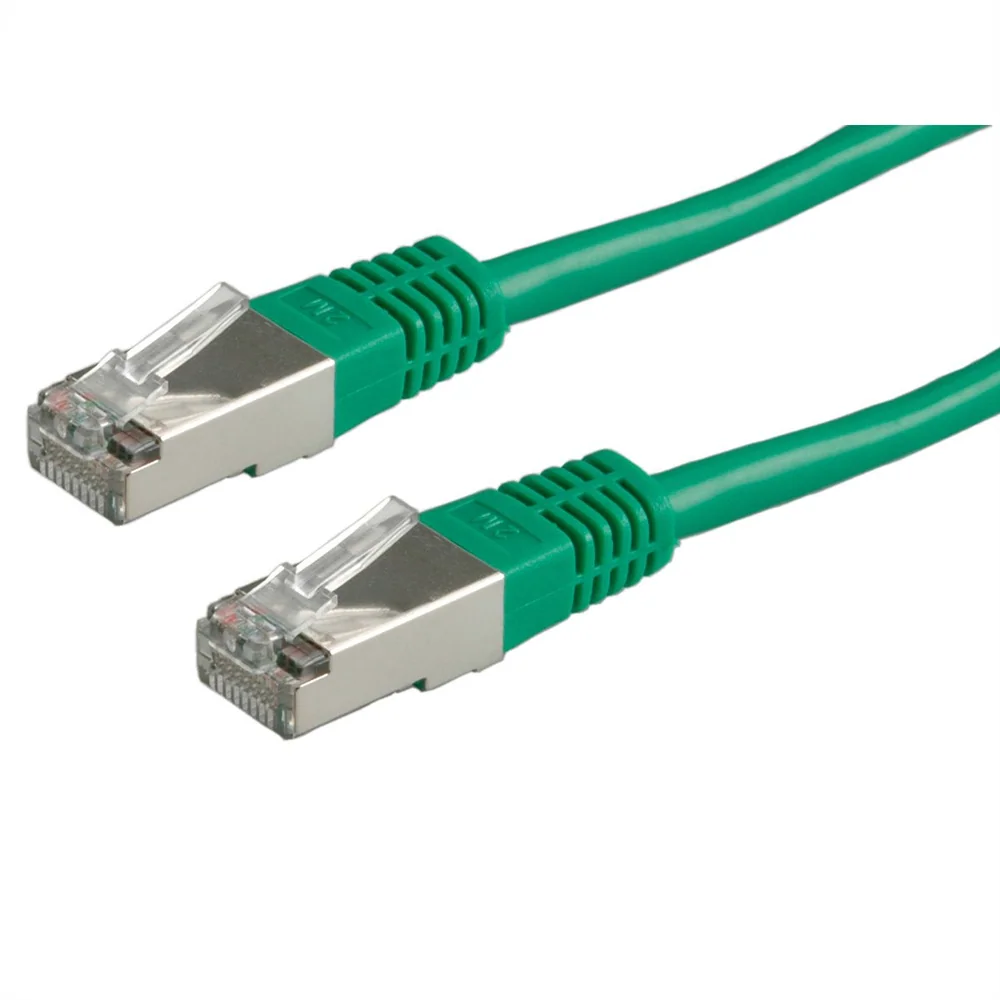

VALUE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), green, 1 m
- Item number
- 21.99.1333-200
- Part number
- 21.99.1333
- EAN
- 7611990977451
- Brand
- VALUE
- Weight
- 37.1 g
Prepared shielded Twisted Pair cable with RJ-45 connectors on both sides. Used as patch cable in wiring cabinet or as direct connection cable between devices. Flexible cable suitable for narrow bending. Contact settings…
Description
Prepared shielded Twisted Pair cable with RJ-45 connectors on both sides. Used as patch cable in wiring cabinet or as direct connection cable between devices. Flexible cable suitable for narrow bending. Contact settings 1:1, according to EIA/TIA 568, 8 wires. Construction: 8 wires stranded copper wire, braided shield. Impedance: 100 Ohm. For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m). VALUE Cat.6 Flush/Surface Mount Wall Jack, shielded, white: 25.99.8492/25.99.8392. VALUE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.99.0353 (black), 26.99.0354 (grey). VALUE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.99.0805. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Twisted Pair Cable
- Product type
- S/FTP patch cord (PiMF)
- Colour
- green
- Length
- 1 m
- Shield type
- S/FTP (PiMF)
- Transfer quality
- Cat6 / Class E
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 27
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Assignment
- 1:1
- Locking lever
- no
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- green
- Cable LSOH
- no
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Weight
- 37.1 g
Packaging
- Height of packaging (single piece)
- 13 mm
- Width of packaging (single piece)
- 120 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.045 kg
