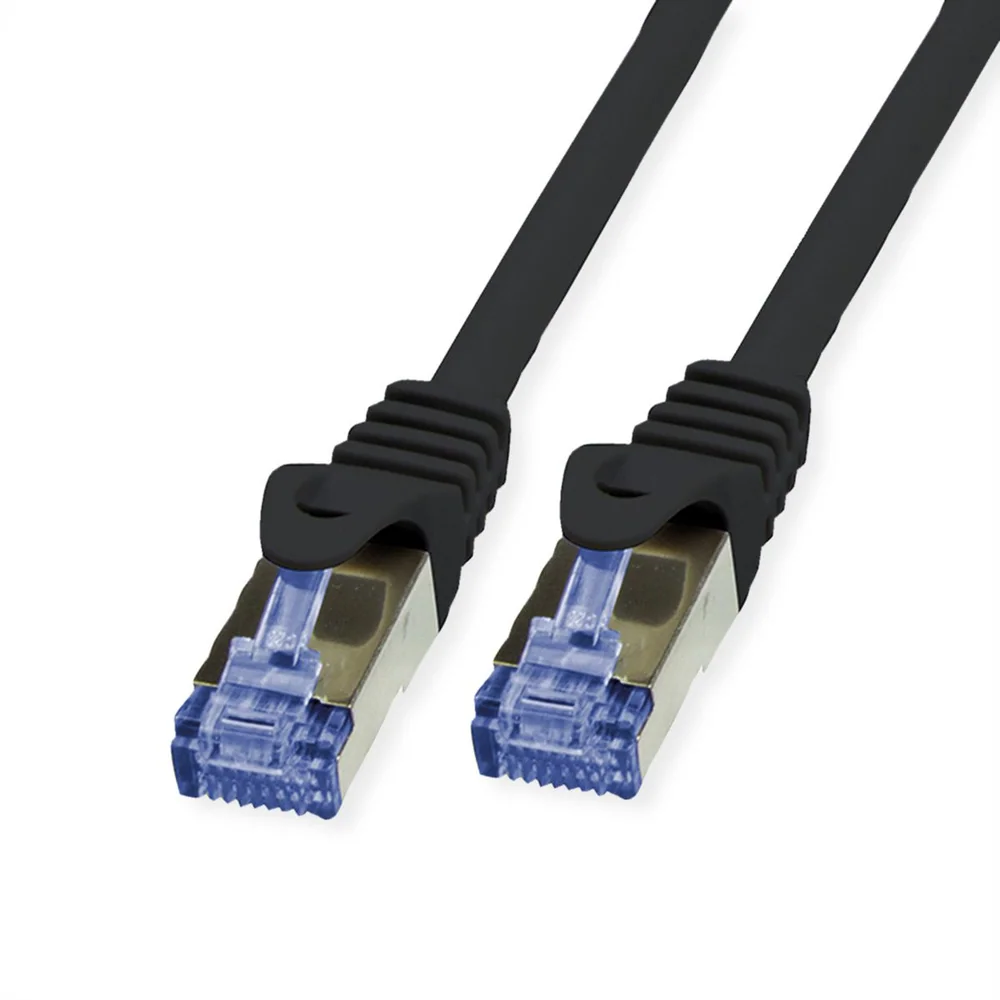

VALUE Outdoor S/FTP Patch Cord Cat.6A/Class EA, Solid, TPE, LSOH, black, 30 m
- Item number
- 21.99.0721-5
- Part number
- 21.99.0721
- EAN
- 7630049687431
- Brand
- VALUE
- Weight
- 1053 g
Patch cord for outdoor use, e.g. for connecting an IP camera
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Patch cord for outdoor use, e.g. for connecting an IP camera
Patch cords for networking connections between devices in combination with outdoor application (e.g. connection to outdoor surveillance cameras)
- Assembled double shielded (PiMF) twisted pair cable made of solid wire in category 6A with shielded RJ-45 connectors on both sides.
- Suitable for connecting external components (e.g. IP cameras), but also for PoE applications or as TP extension cable in multimedia applications
- UV - resistant
- Durable thanks to molded bend protection
- Contact assignment: 1:1 according to EIA/TIA568, 8 cores
- Construction: 8 cores solid wire. Pair shielding: aluminum-clad polyester foil. Overall shielding: copper braiding
- High quality gold plated contacts
REMARK: NOT suitable for underground installation / application
Important: Not suitable for underground installation. RJ-45 connectors must be protected from the influence of the weather.
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Twisted Pair Cable
- Product type
- S/FTP patch cord (PiMF)
- Colour
- black
- Length
- 30 m
- Shield type
- S/FTP (PiMF)
- Transfer quality
- Cat6A / Class EA
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 26
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Solid wire
- Crossed
- no
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- Cable LSOH
- yes
- Material (external cable mantle)
- TPE
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 60 °C
- Weight
- 1053 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 220 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.875 kg
