VALUE HDMI Extender, IPCOLOR over IP, 4K60Hz, 120 m
- Item number
- 14.99.3568-1
- Part number
- 14.99.3568
- EAN
- 7630049633377
- Brand
- VALUE
- Weight
- 496 g
This is a 4K@60Hz HDMI extender kit, consisting of a transmitter and a receiver, using ipcolor STREAM technology for high resolution, low latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

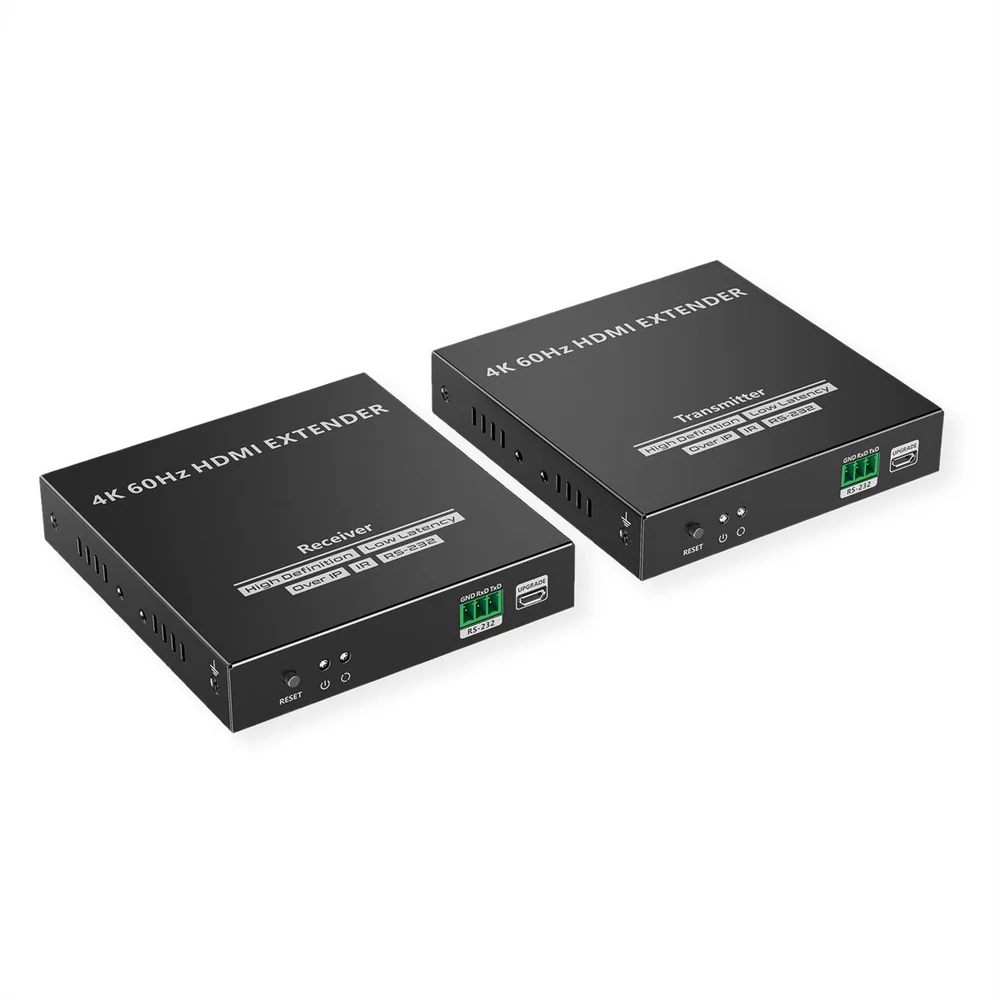

This is a 4K@60Hz HDMI extender kit, consisting of a transmitter and a receiver, using ipcolor STREAM technology for high resolution, low latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 or higher network cables. One-to-one connections, one-to-many connections via gigabit switches or one-to-many connections via gigabit switch cascades are supported. Also HDMI loop-out, IR passback and RS-232 pass-through functions are supported. This extender kit is perfect for meetings, home entertainment, educational presentations and many other areas.
- Supports up to 3840 x 2160@60Hz resolution, backwards compatible
- Compatible with Cat5/5e/6 or above network cables
- Max. transmission distance with Cat.6 or higher network cable is 120 m
- ipcolor STREAM technology (high-definition and low-latency transmission)
- Supports one-to-one connections and one-to-many connections through gigabit switches
- The transmitter supports HDMI loop out
- Supports IR passback (20 – 60kHz) and RS-232 passthrough.
- Compliant with HDCP 1.4 and HDCP 2.2
- Dimensions (TX, RX each): 21 x 106 x 103 mm
- Weight TX: 254 g, RX: 242 g
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Video Extender
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- 1x Transmitter, 1x Receiver, 2x Power Adapter, 1x IR Receiver Extension Cable, 1x IR Blaster Extension Cable, 4x Mounting Ears, 2x Terminal Blocks (RS-232), User Manual
- Interface
- HDMI
- Inputs
- 1
- Outputs
- 2
- Max. distance
- 120 m
- Video input
- TX: 1x HDMI, RX: 1x RJ-45
- Video output
- TX: 1x HDMI Loop-Out, 1x RJ-45, RX: 1x HDMI
- Video band width
- 18 Gbps
- Max. resolution (nom.)
- 3840 x 2160@60Hz
- Max. resolution
- 3840 x 2160 @60Hz (4K, UHD-1)
- Dimensions (HxWxD)
- 21 x 106 x 103 mm
- Power supply unit
- 2x
- Power supply output
- 5 V DC, 1A
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 70 °C
- Height
- 21 mm
- Width
- 106 mm
- Depth
- 103 mm
- Weight
- 496 g
Packaging
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 180 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 1 kg
