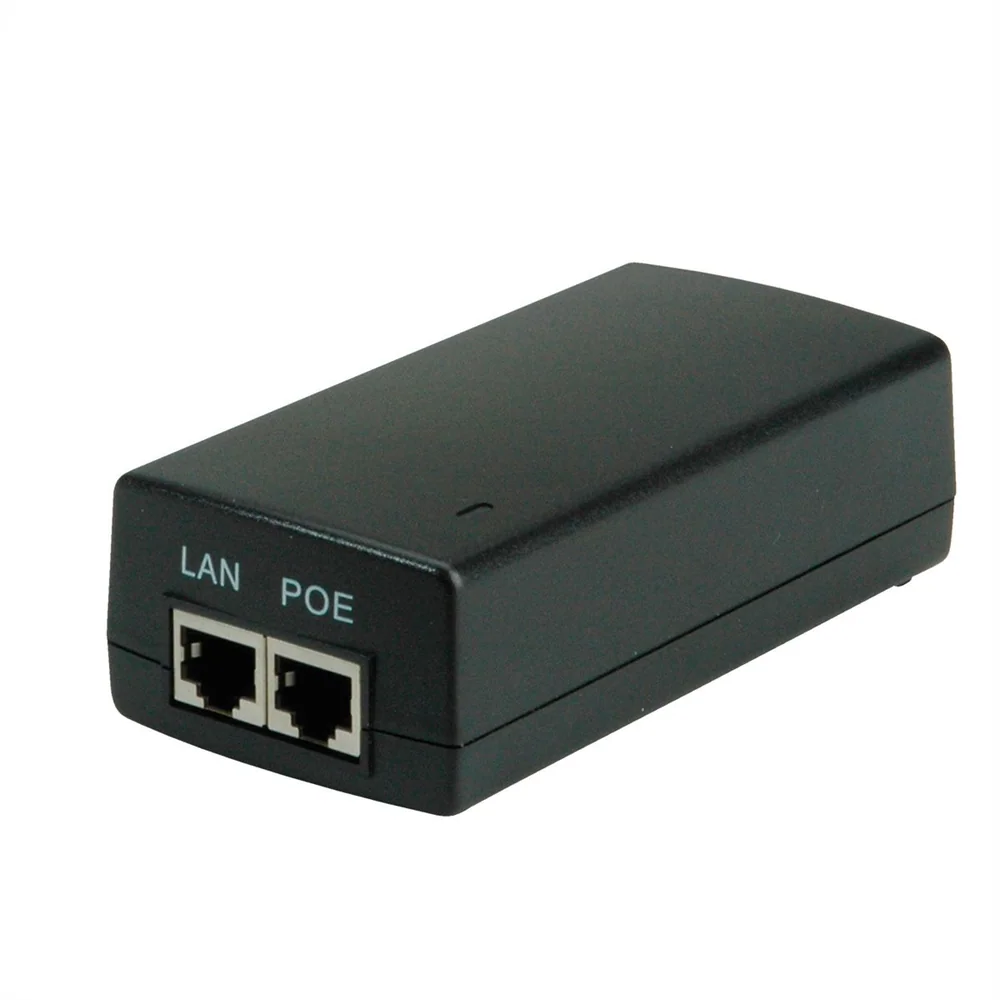

VALUE Gigabit PoE Injector
- Item number
- 21.99.1498-10
- Part number
- 21.99.1498
- EAN
- 7611990948482
- Brand
- VALUE
- Weight
- 338.6 g
The VALUE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable. A PSE supplies the current…
Description
The VALUE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.
- Supply of data and power into the network cables
- Connectors: 1x RJ-45 port (Data In, Data input), 1x IEC power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
- Compatible with 802.3af and 802.3at
- Power via PoE: up to 30W
- LED indicators for Power, Link / Act. and PoE
- Output voltage: 802.3af standard (46V-55V DC)
- Contents: Injector, manual, power cable (German safety plug to C13 plug)
Specifications
Product
- Manufacturer
- VALUE
- Product group
- PoE adapter
- Product type
- PoE-Injector
- Colour
- black
- Scope of delivery
- 1x injector, 1x power cable
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Power over Ethernet (PoE)
- PoE+ (IEEE 802.3at)
- Quantity of PoE ports
- 1
- Max. PoE output power per port
- 30 W
- Max. PoE output power (total)
- 30 W
- Mains connection
- Protective contact plug, Type-E/F
- Height
- 38.5 mm
- Width
- 62 mm
- Depth
- 165 mm
- Weight
- 338.6 g
Packaging
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.35 kg
