21.99.8820-5
VALUE FO Jumper Cable 50/125µm OM3, LC/LC, LSOH, Low-Loss, turquoise, 0.5 m
LC / LC · 0.5 m · turquoise

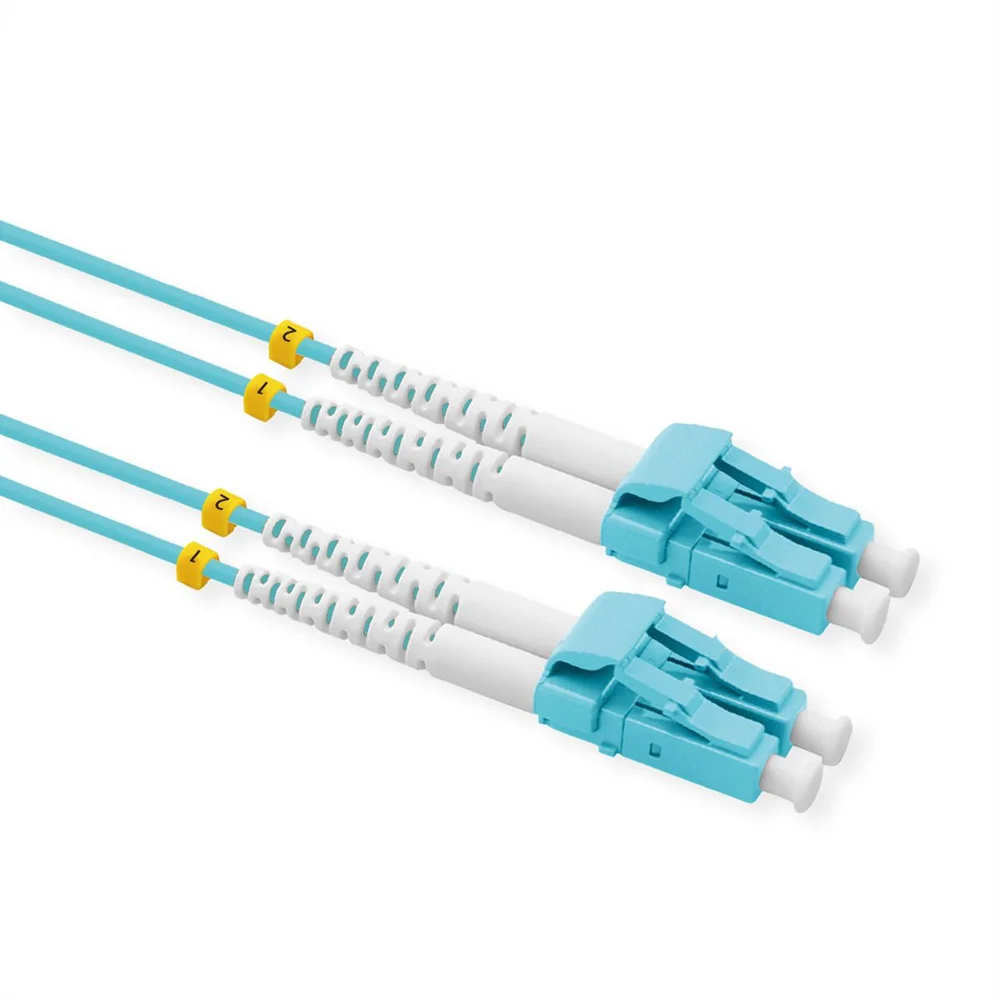

VALUE FO Jumper Cable 50/125µm OM3, LC/LC, LSOH, Low-Loss, turquoise, 3 m
- Item number
- 21.99.8823-5
- Part number
- 21.99.8823
- EAN
- 7630049696808
- Brand
- VALUE
- Weight
- 27.3 g
VALUE fiber optic low-loss patch cord in OM3 quality for high-performance fiber optic cabling
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
VALUE fiber optic low-loss patch cord in OM3 quality for high-performance fiber optic cabling
- Security for the future! The OM3 fiber and connector quality with very low insertion loss ensure an excellent quality at very high bandwidths.
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a low-loss LC connector: 0.15 dB
- Duplex cables with fiber type Multi-mode 50/125µm, OM3
- Color: turquoise
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM3
- Colour
- turquoise
- Length
- 3 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM3
- Connection ports
- LC / LC
- Side 1 Connector Type
- LC
- Side 2 Connector Type
- LC
- Min. Bending radius, static
- 20 mm
- Min. Bending radius, dynamic
- 40 mm
- Colour (Cable)
- turquoise
- Aramid strain relief
- yes
- External cable diameter
- 2 x 4 mm
- Mantle of external cable
- LS0H
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.15 dB
- Min. return loss
- 30 dB
- Weight
- 27.3 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 80 mm
- Depth of packaging (single piece)
- 80 mm
- Package weight (single piece)
- 0.02 kg
