VALUE Field Plug Cat.6A (Class EA), UTP
- Item number
- 26.99.0372-50
- Part number
- 26.99.0372
- EAN
- 7630049690080
- Brand
- VALUE
- Weight
- 9.9 g
Fast and easy tool-free installable unshielded RJ45 connector Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7 Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded…
Description

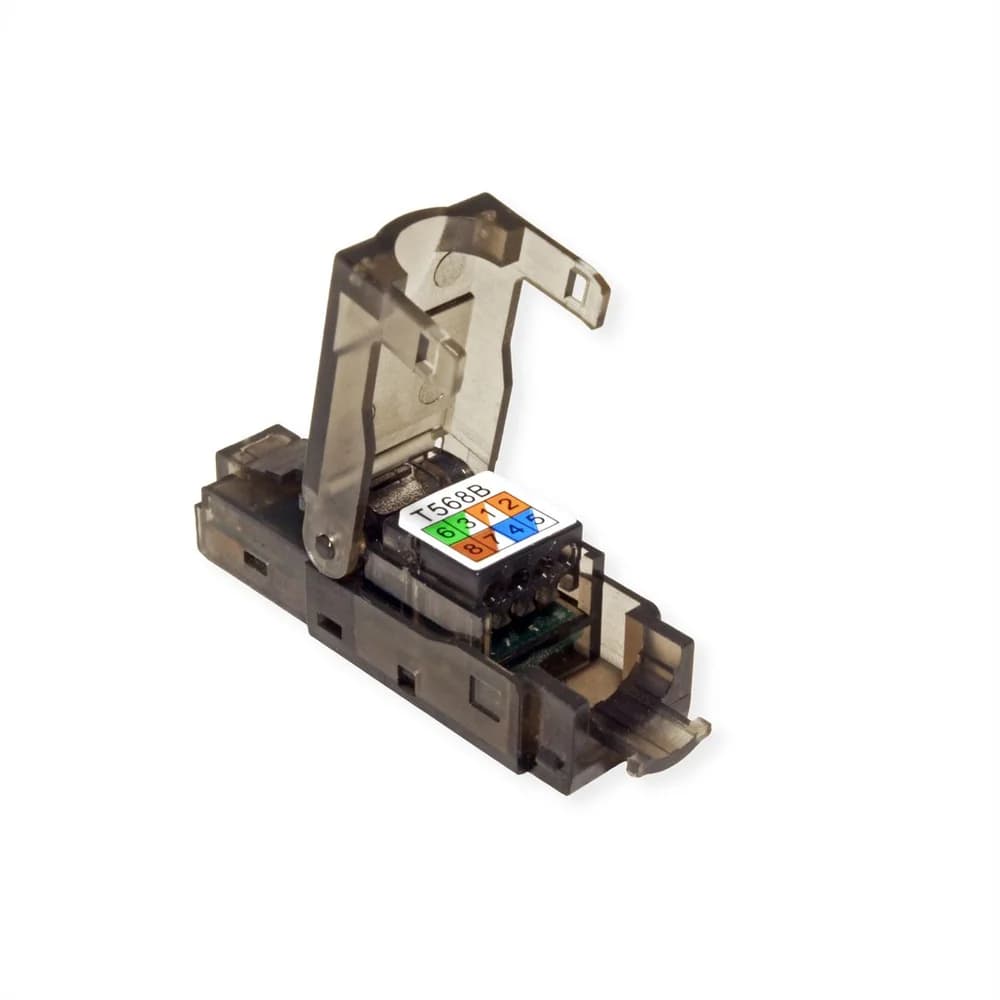

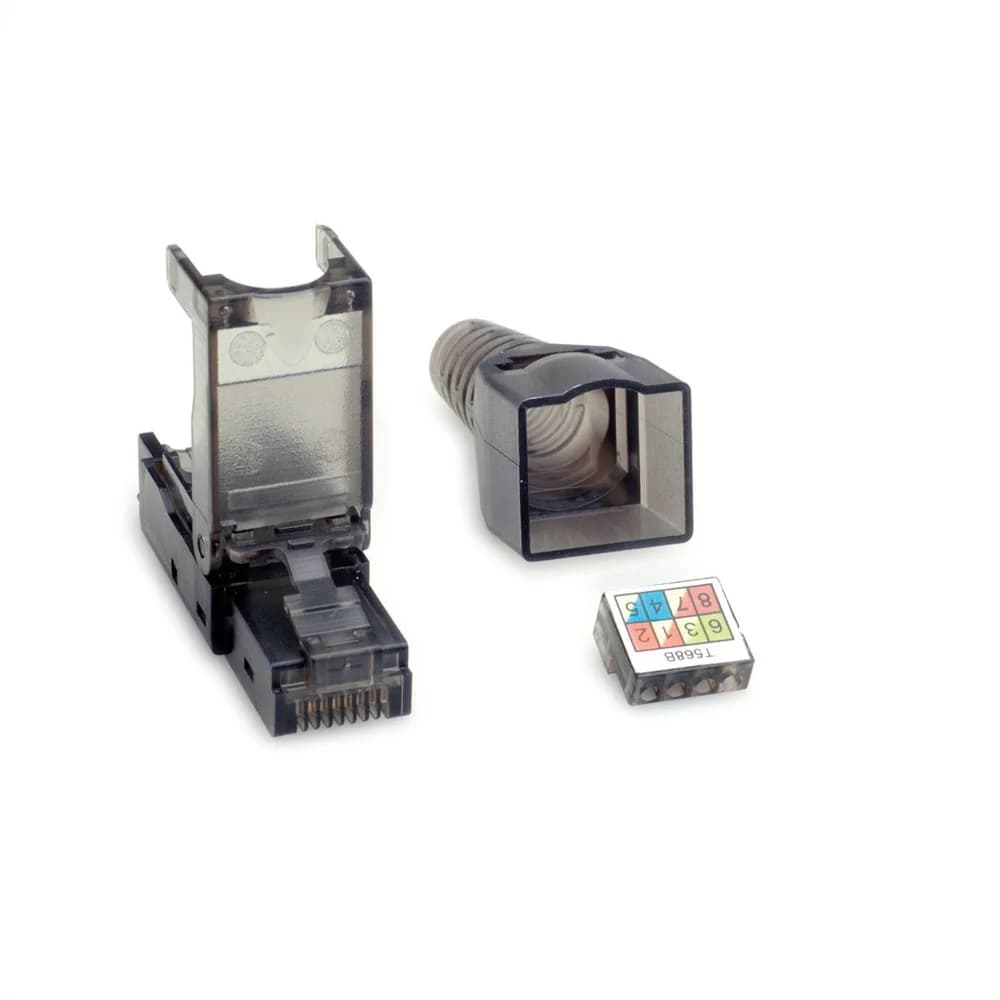

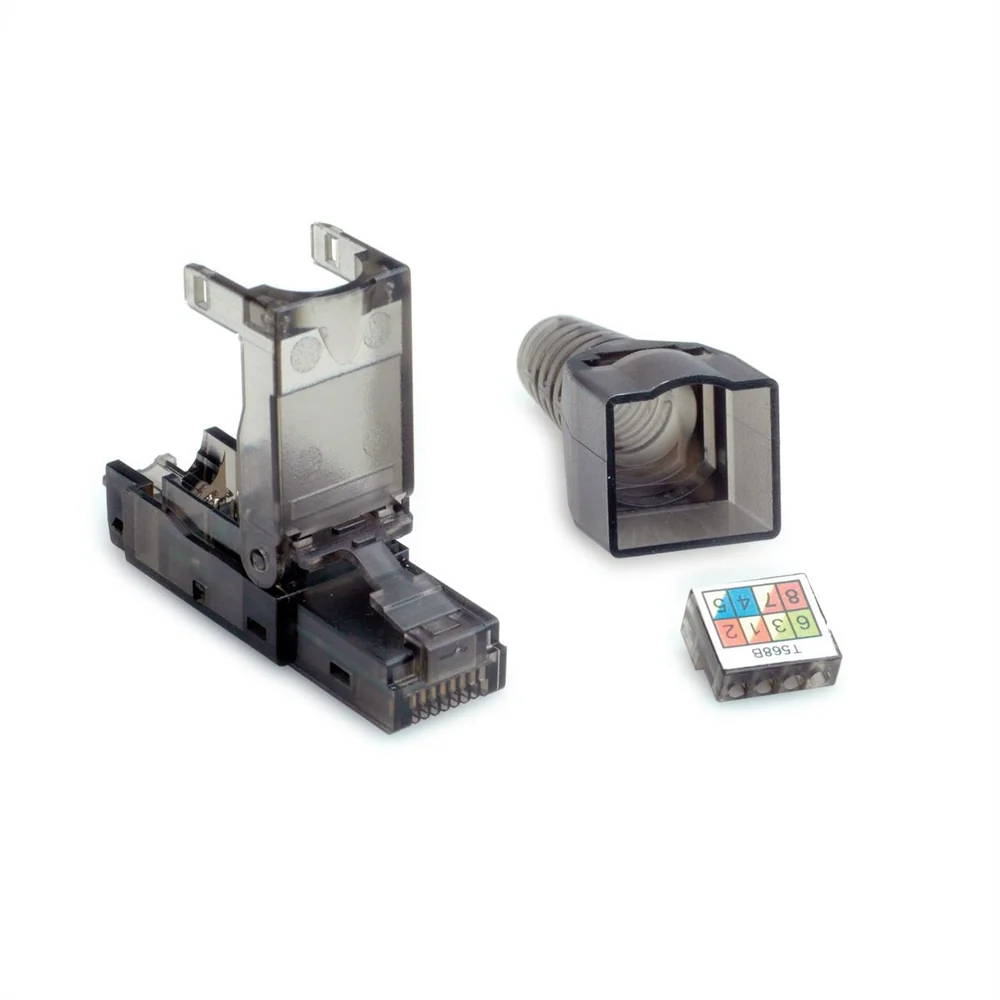

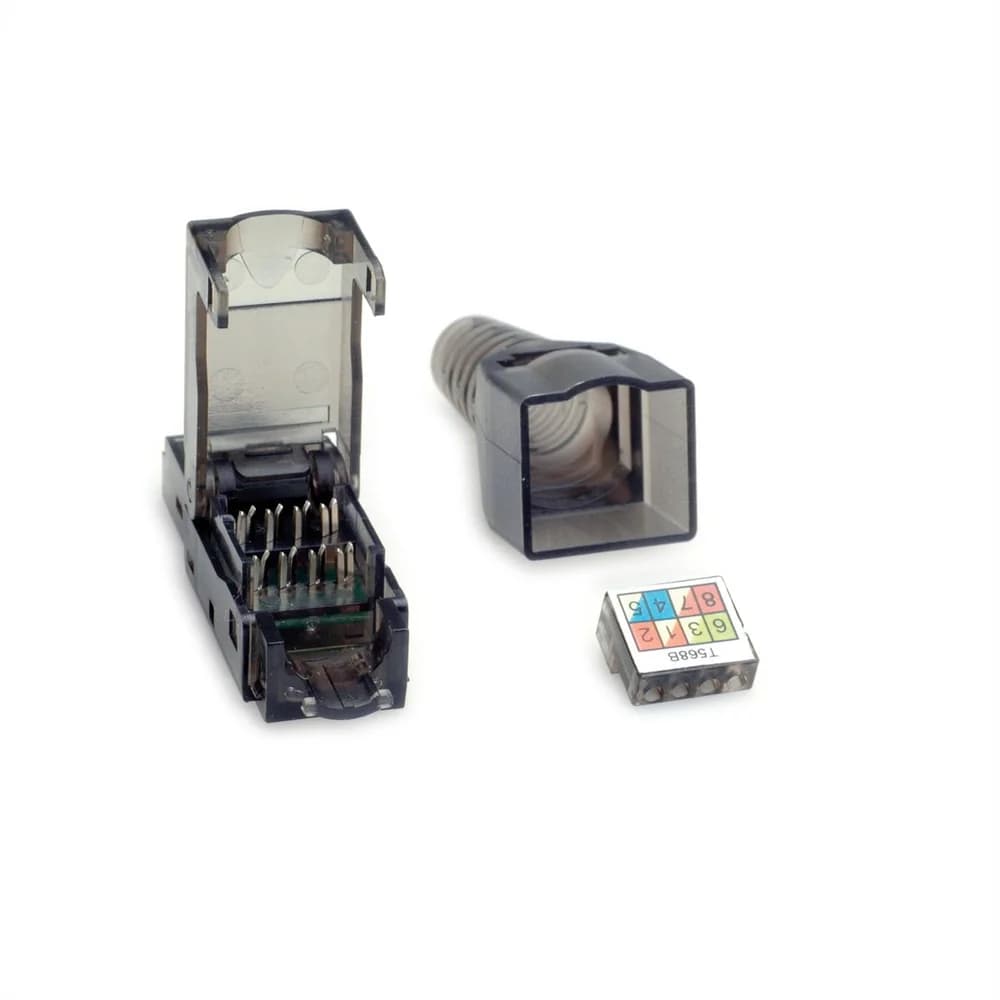

- Fast and easy tool-free installable unshielded RJ45 connector
- Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
- Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
- For cable with outer diameter OD: 6.0 - 9.0mm

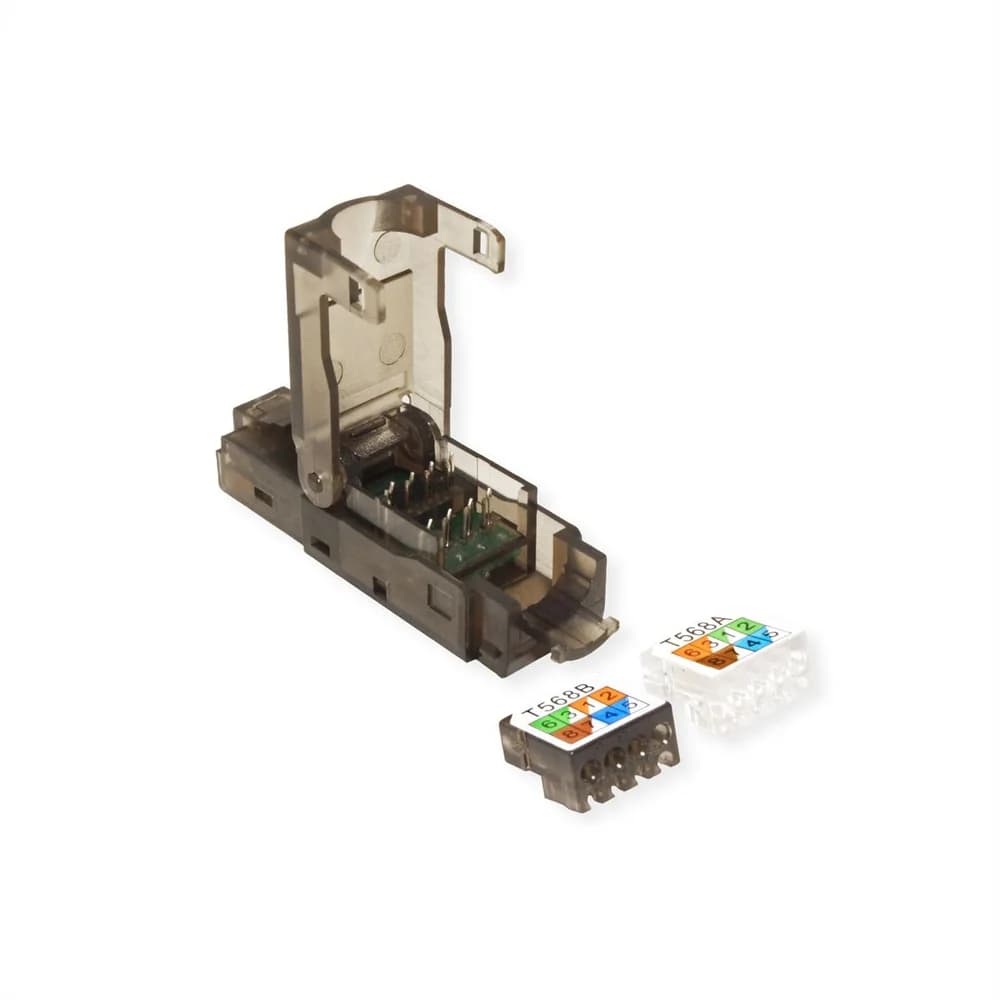

- Pair management according to TIA 568B and TIA 568A colour codes

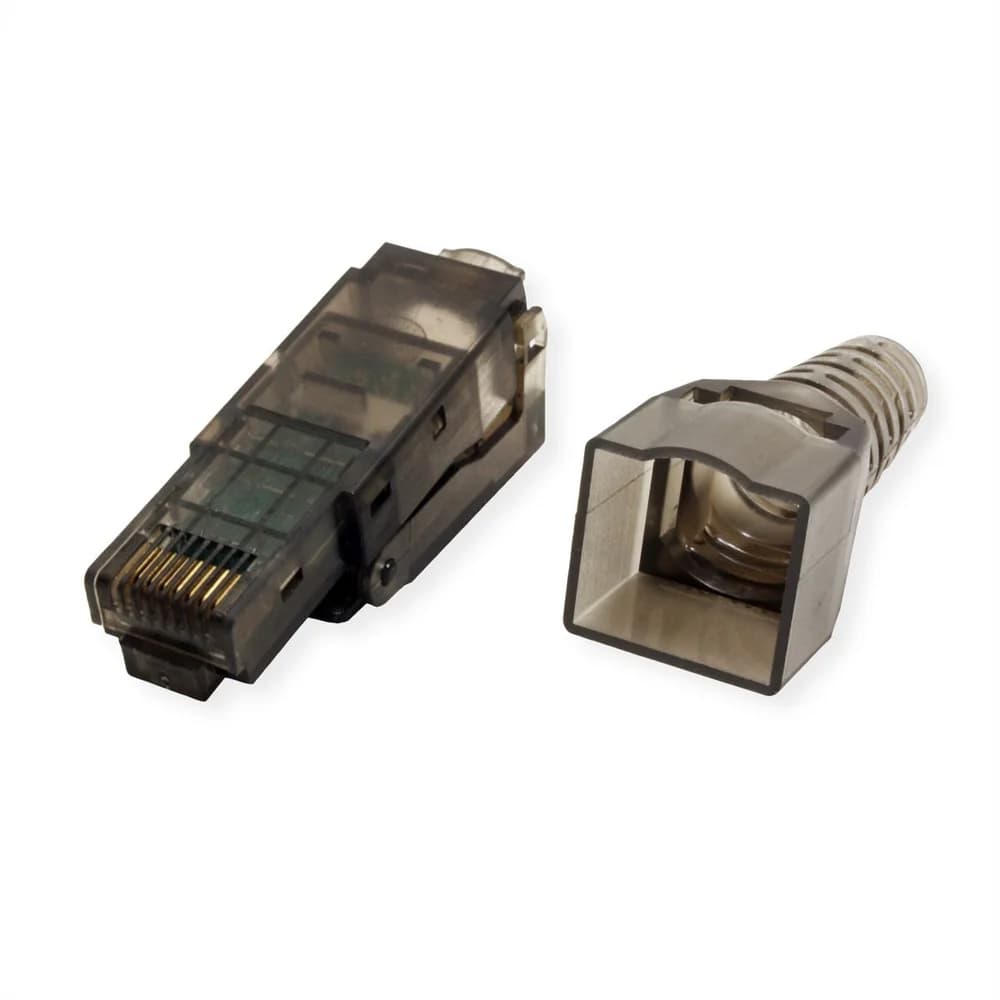

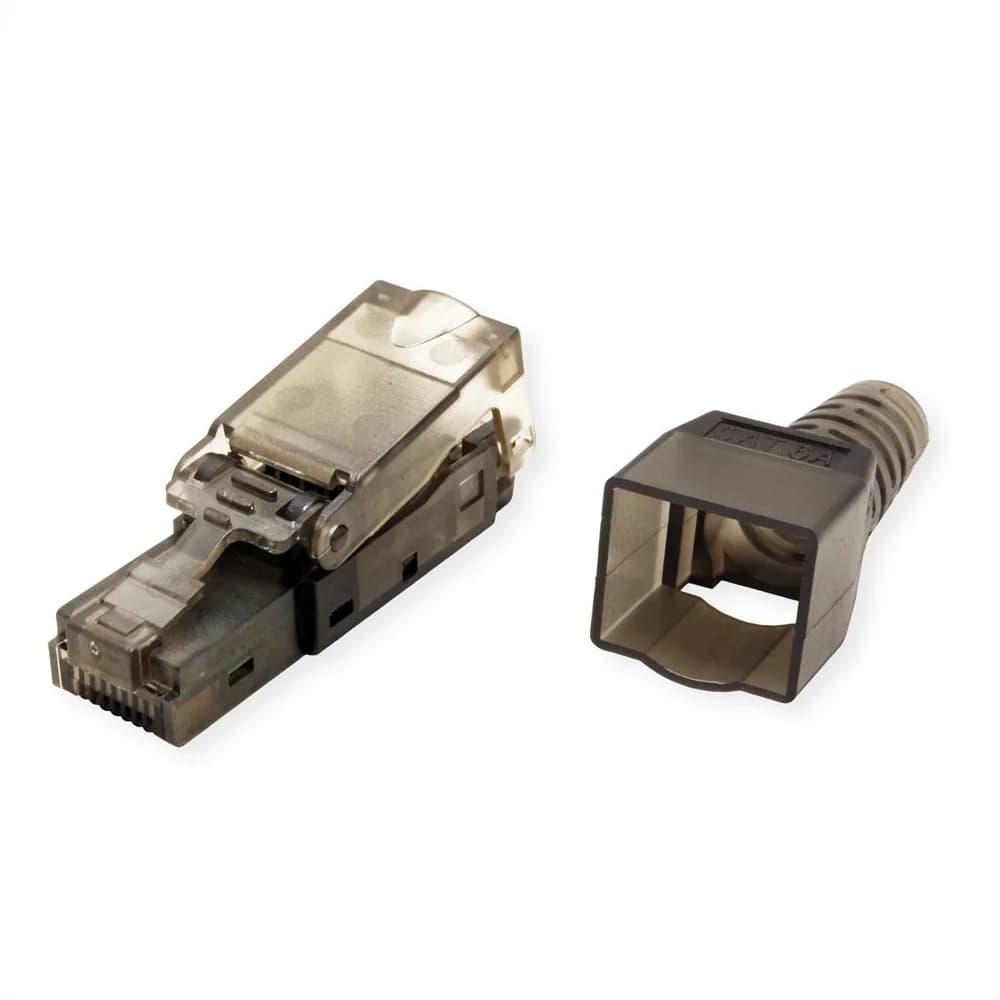

- Strain relief with cable tie and black transparent dust cup and boot
- Color: Transparent black
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- transparent
- Scope of delivery
- 1x RJ-45 plug
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Shield contacts
- ja
- separate strain relief
- yes
- Height
- 15.3 mm
- Width
- 13.9 mm
- Depth
- 69.7 mm
- Weight
- 9.9 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.02 kg
