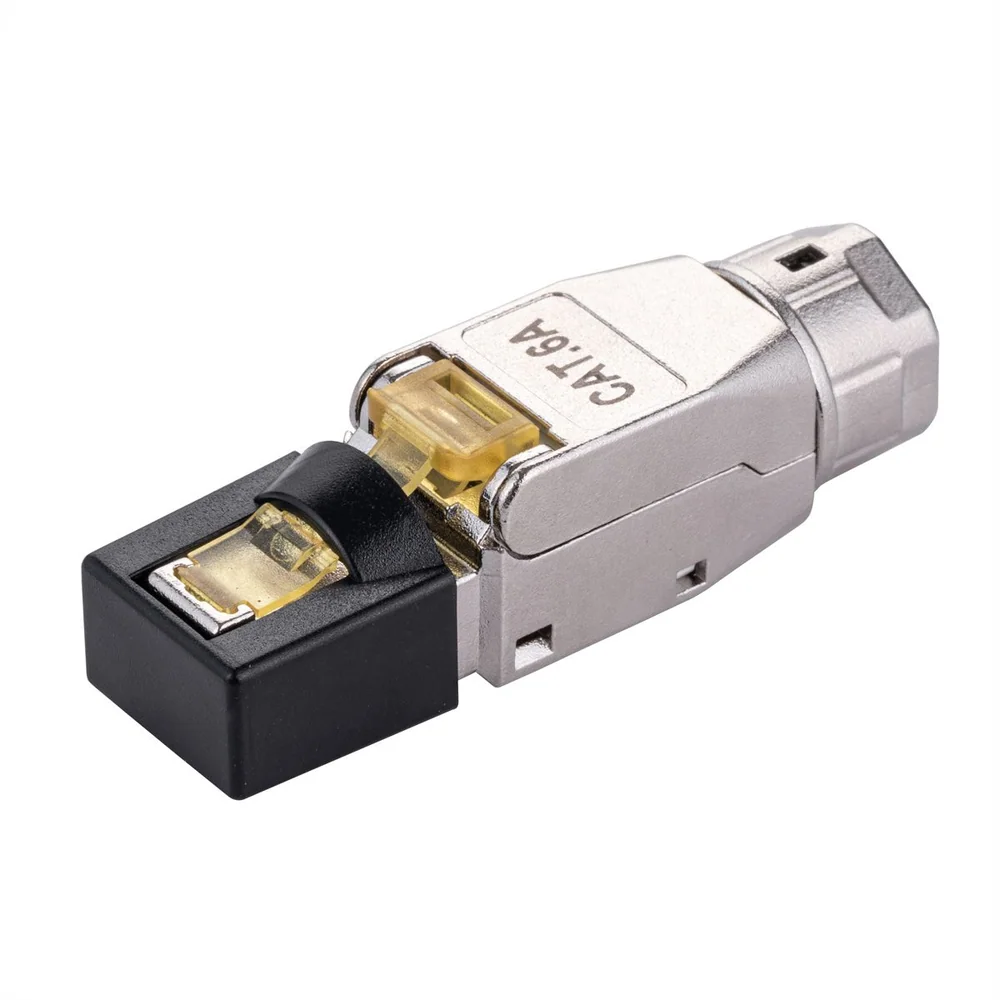

VALUE Field Plug Cat.6A/Class EA, shielded, short screw
- Item number
- 26.99.0374-50
- Part number
- 26.99.0374
- EAN
- 7630049679085
- Brand
- VALUE
- Weight
- 15 g
Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation
- Shielded RJ45 field plug with Cat.6A / Class EA performance
- For round solid cables with AWG26/1 to AWG23/1 (wire diameter from 0.9 to 1.6mm)

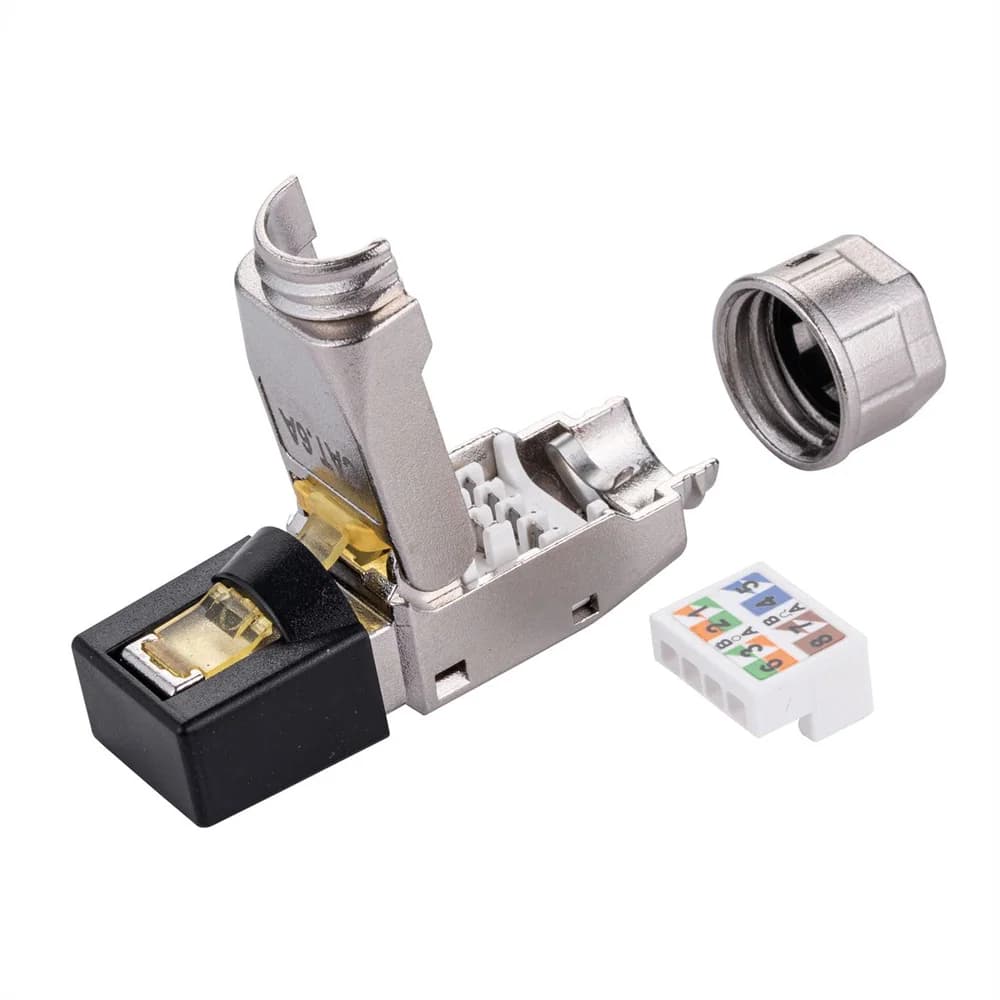

- Fast and easy installation - no special tool required
- Pair management according to TIA 568B and TIA 568A color codes
- Fully shielded with zinc alloy housing
- Strain relief through cable gland
- The ring ensures 360° forwarding of the cable shielding to the plug shielding.
- Color: silver
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Scope of delivery
- Field Plug
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Material (casing)
- Zinc alloy
- Shield contacts
- ja
- separate strain relief
- yes

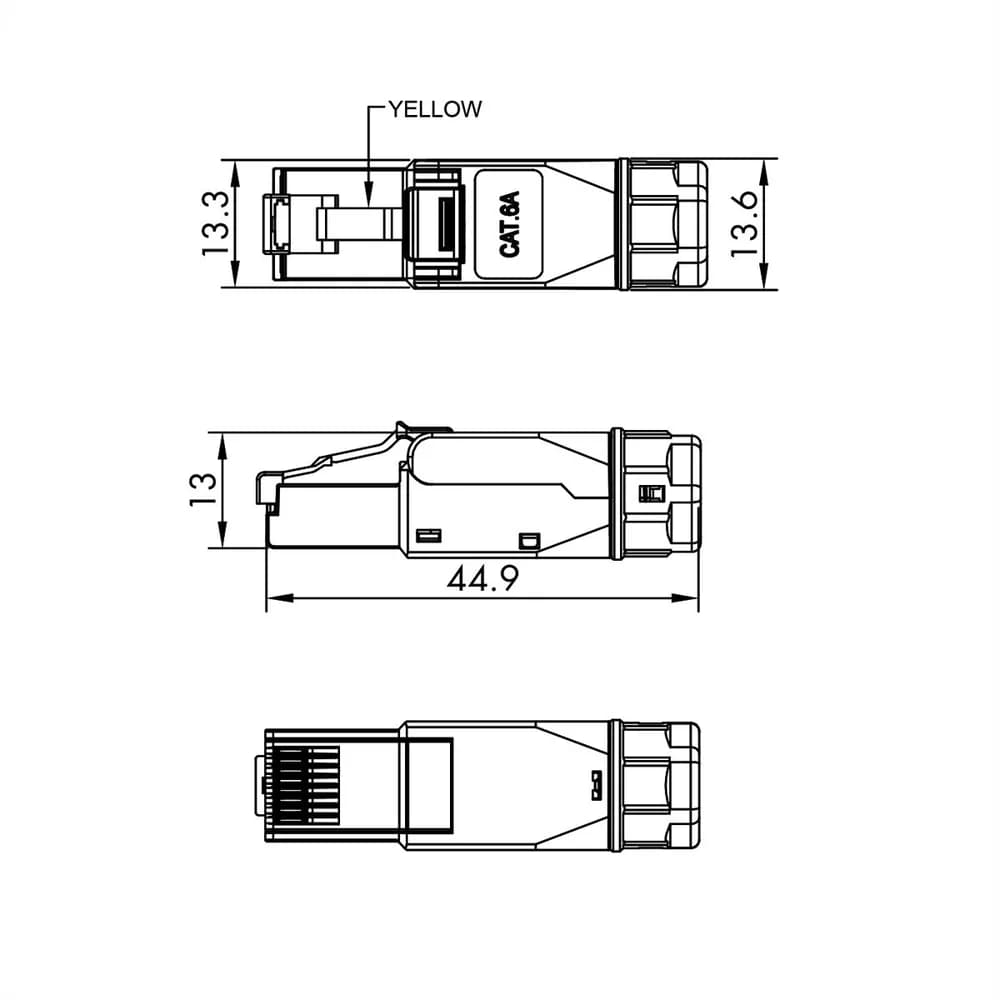

- Dimensions (HxWxD)
- 13 x 13.3 x 44.9 mm
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 70 °C
- Height
- 13 mm
- Width
- 13.6 mm
- Depth
- 44.9 mm
- Weight
- 15 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.015 kg
