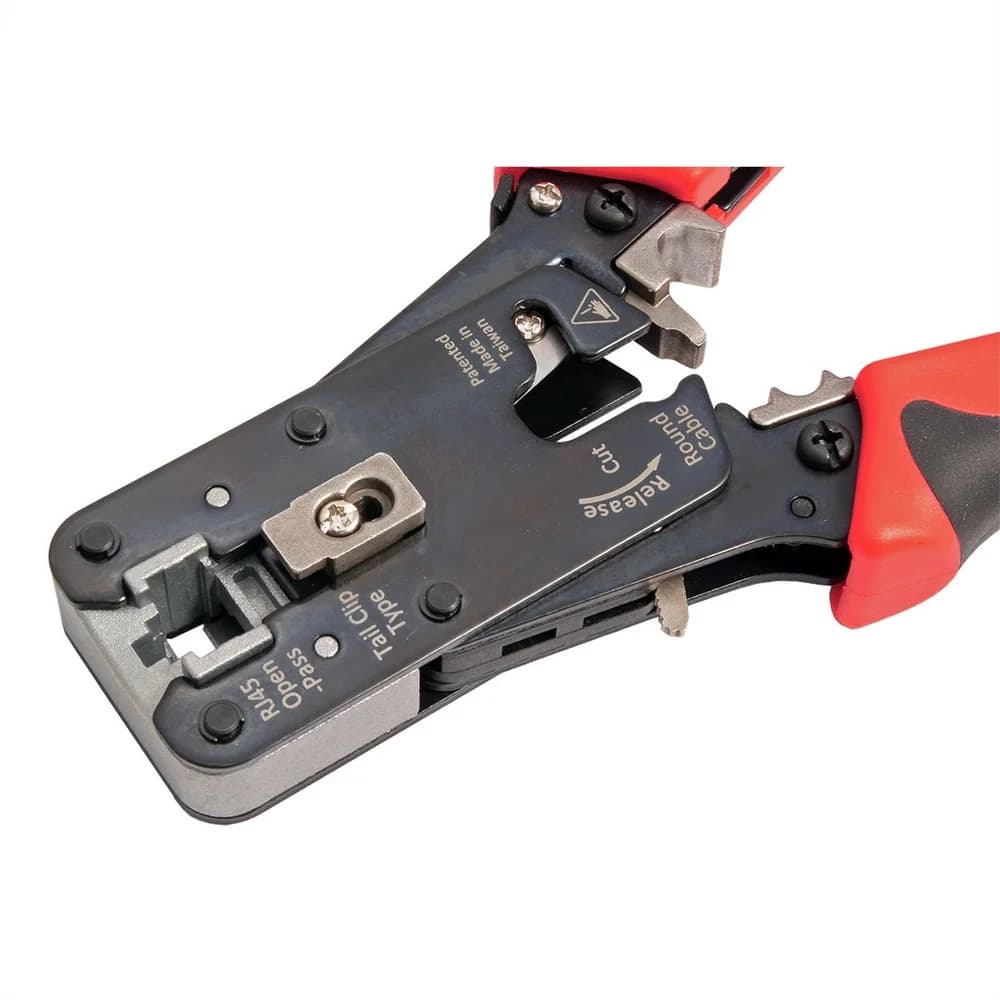

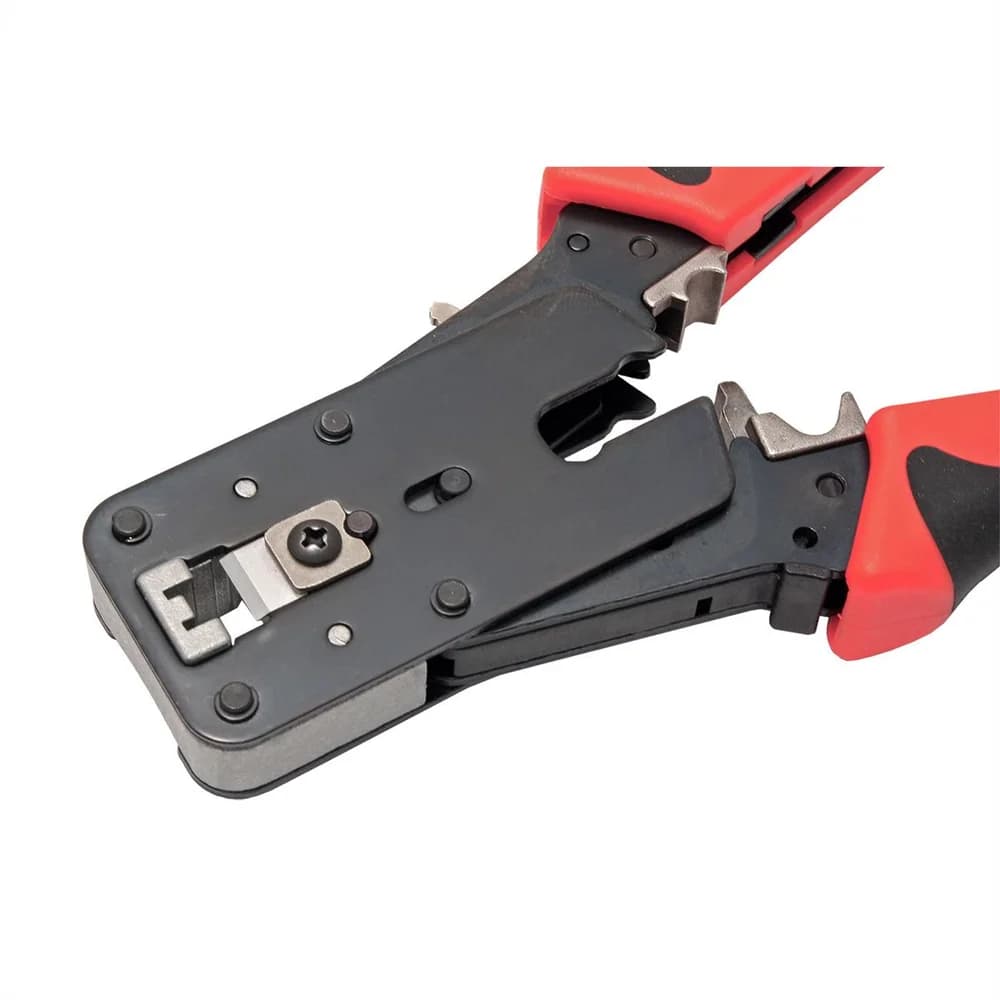

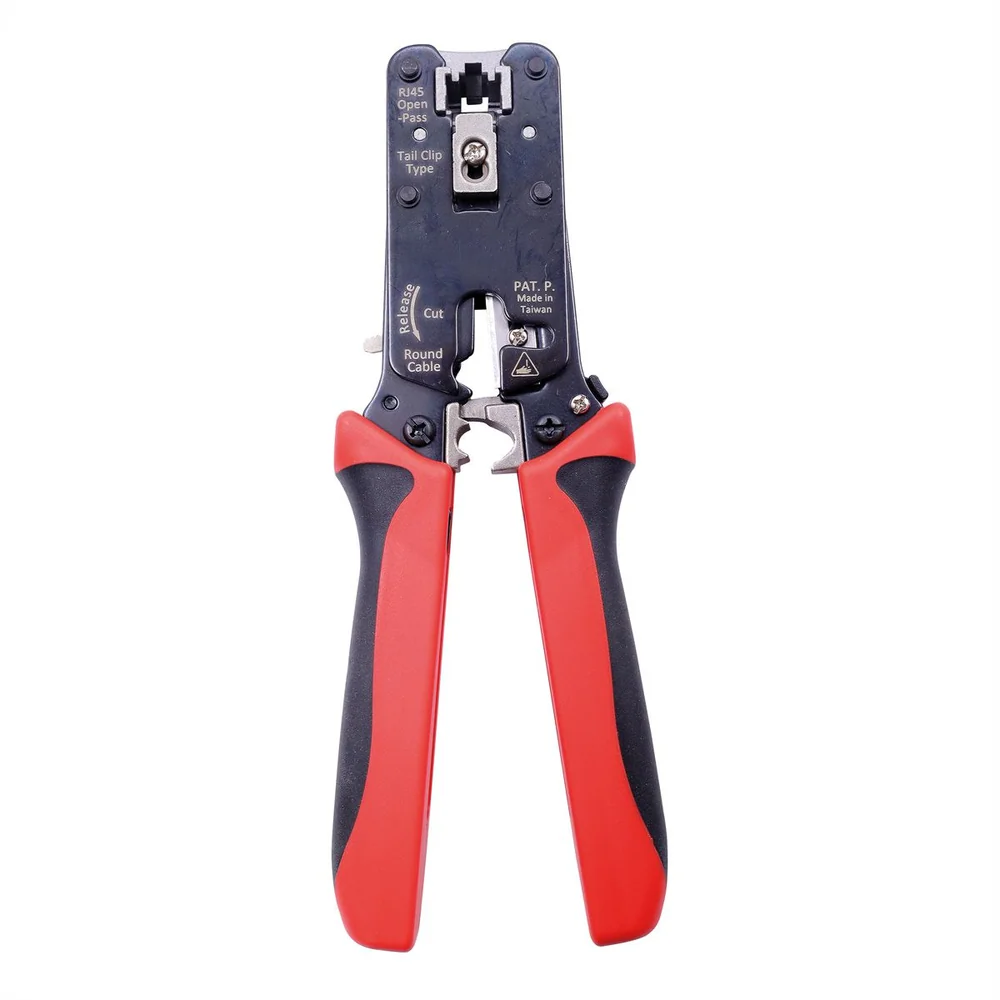

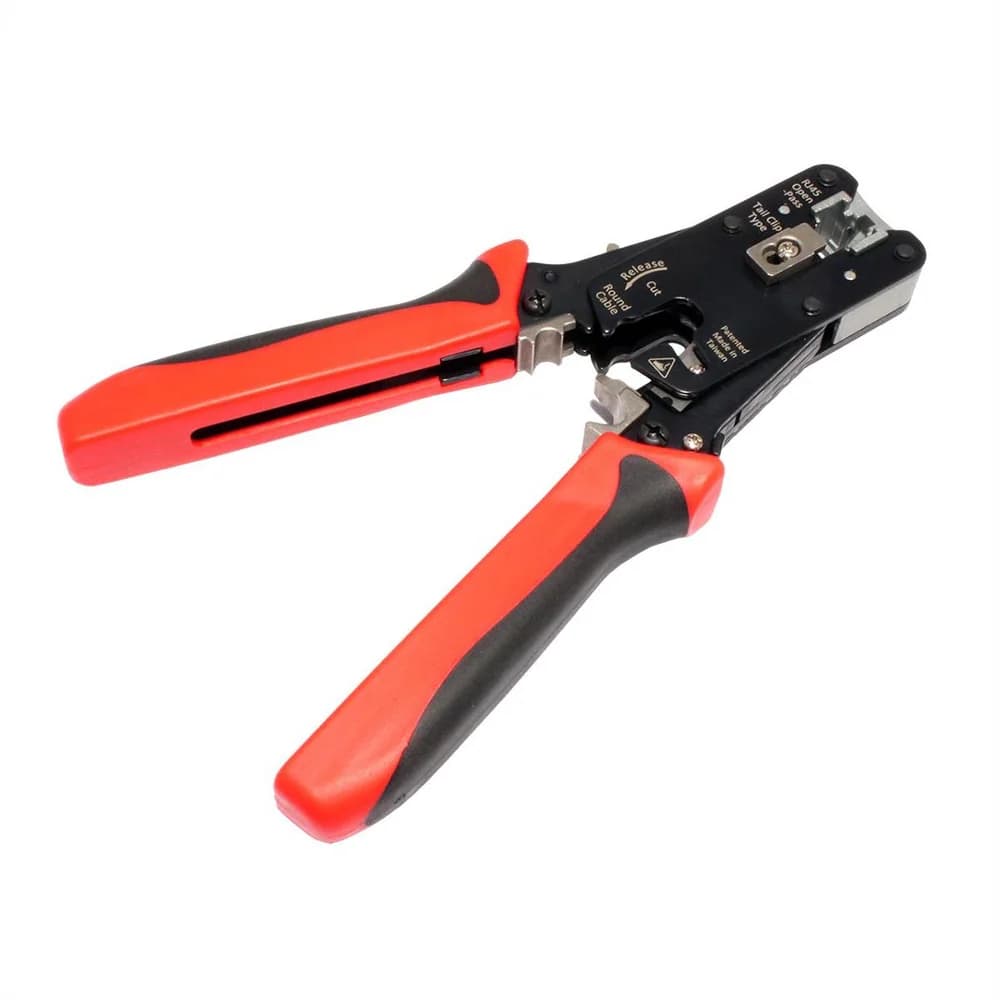

VALUE Crimping Tool for Pass-Through Modular Plugs

Pliers for cutting, stripping, and crimping shielded and unshielded, pass-through modular plugs (8P8C).

• For shielded and unshielded pass-through modular plugs (e.g. 21.17.3146 and 21.17.3147)
• Crimping, cutting and stripping functions
• Adjustable, for plugs with or without strain latch
• Comes with release (anti-jam) mechanism
• Ergonomic, non-slip, two-tone (red and black) handles ensure greater comfort during use

RJ45 Pass-Through – simple and controlled termination

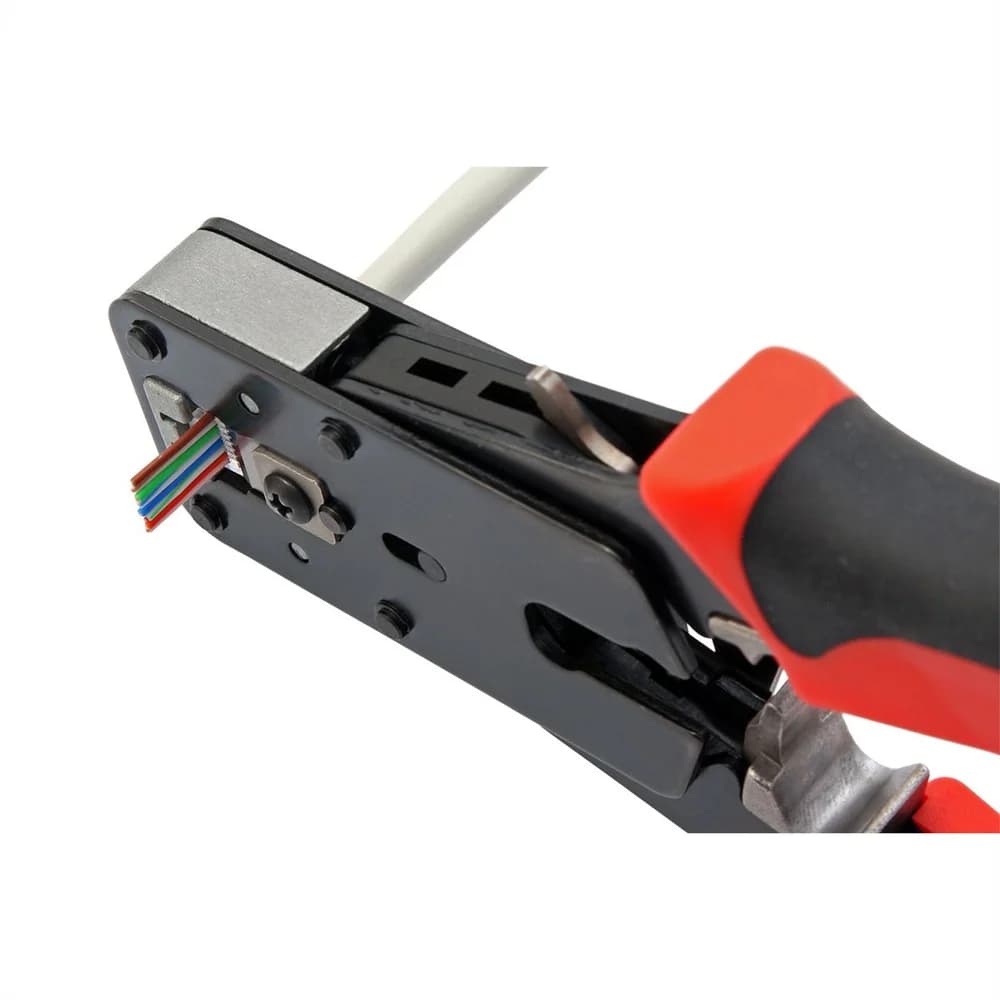

With RJ45 Pass-Through modular plugs, the individual conductors of the network cable are fed completely through the plug and extend out of the front. This makes it easy to check the correct wire sequence before crimping. Unlike conventional RJ45 plugs, the conductors do not need to be cut to the exact length before insertion. When crimping with a suitable Pass-Through crimping tool, the protruding wire ends are cut off flush. This simplifies termination and can save time and reduce wiring errors, particularly when terminating multiple network cables.
