VALUE Cat.8 (Class I) Field Connector Plug RJ45, Tool-Free
- Item number
- 21.99.1804-50
- Part number
- 21.99.1804
- EAN
- 7630049687561
- Brand
- VALUE
- Weight
- 19 g

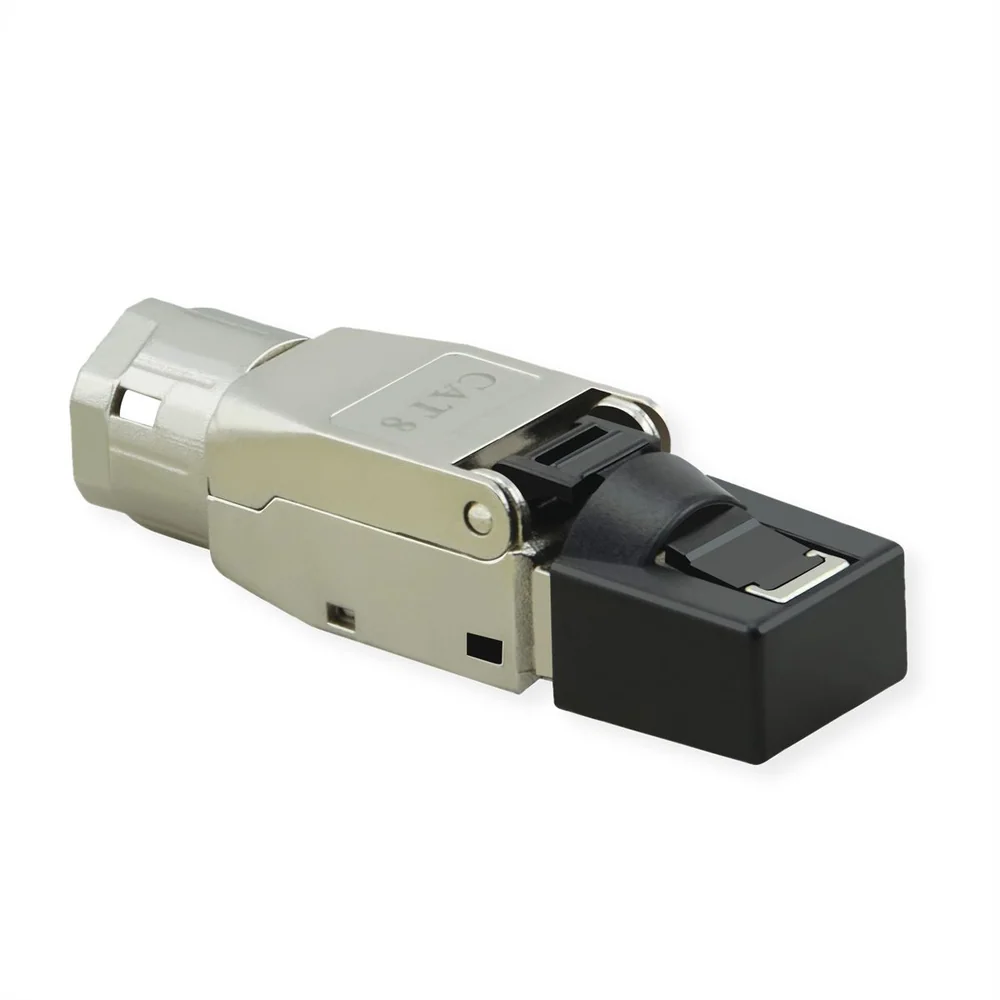

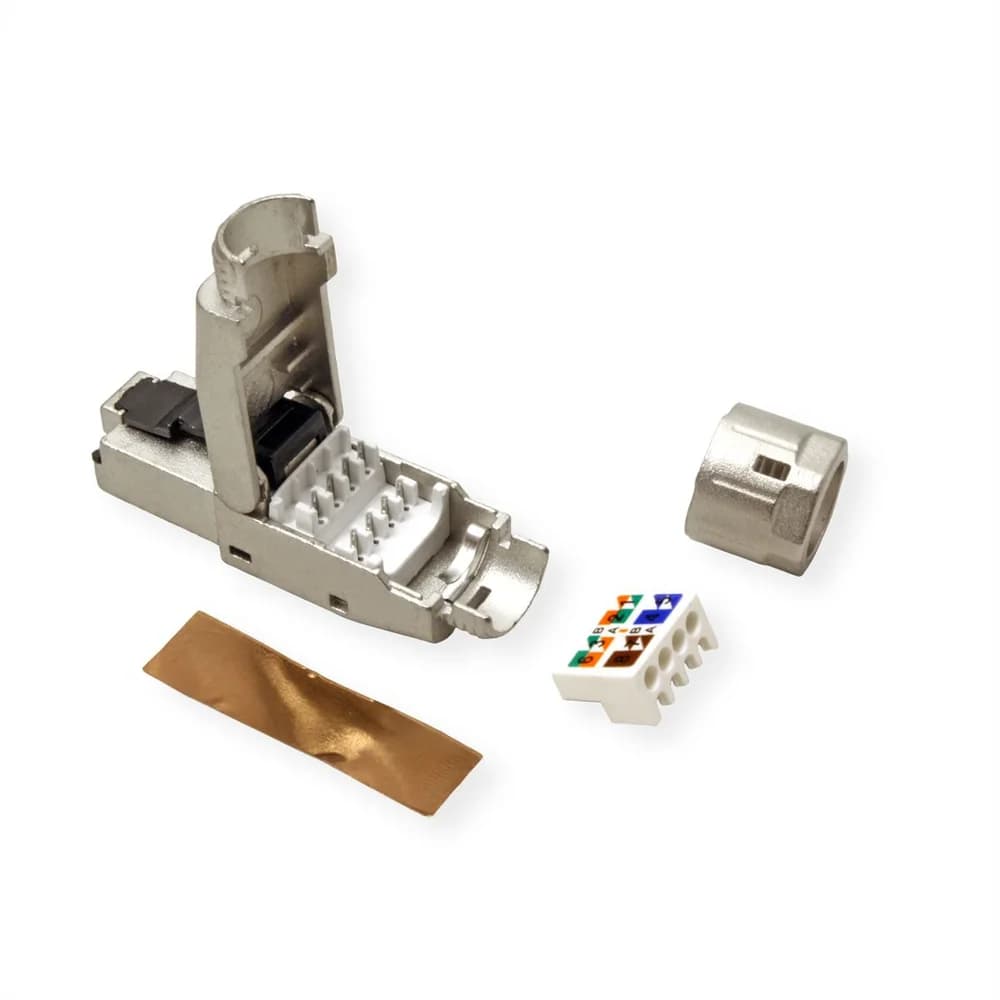

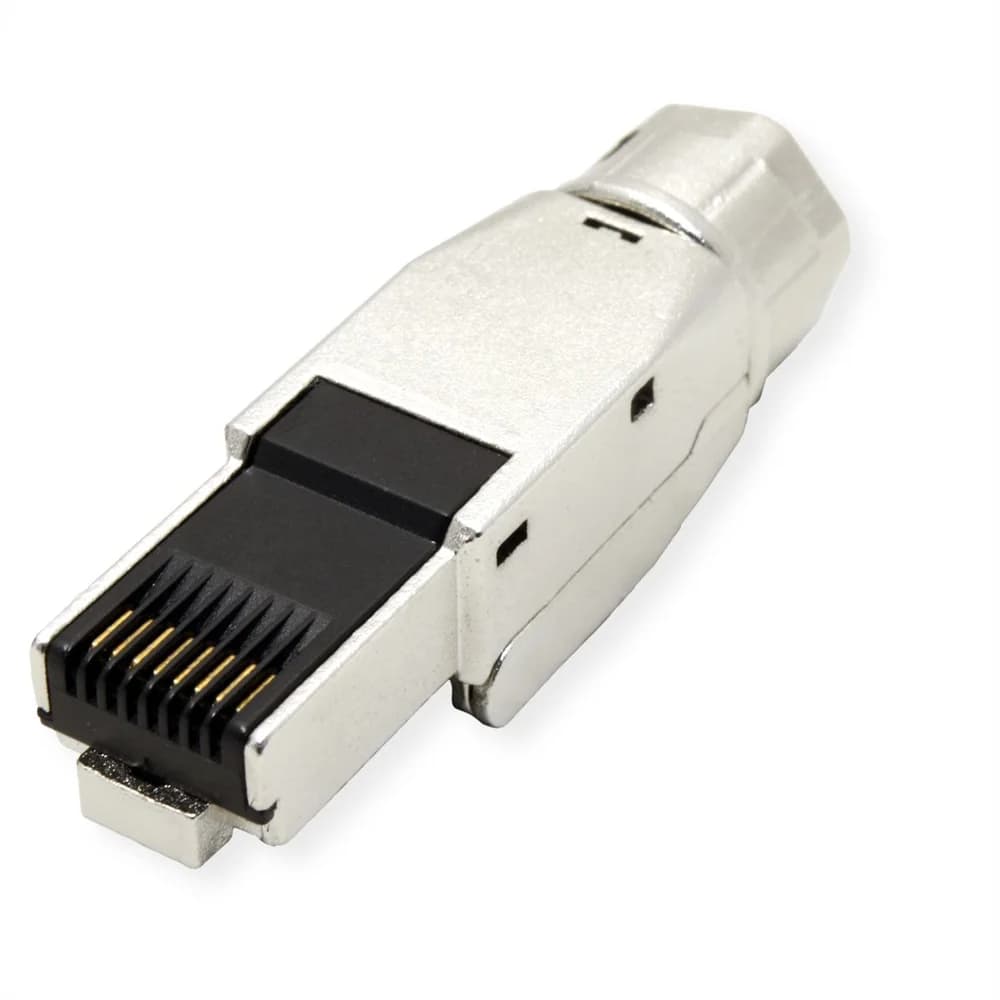

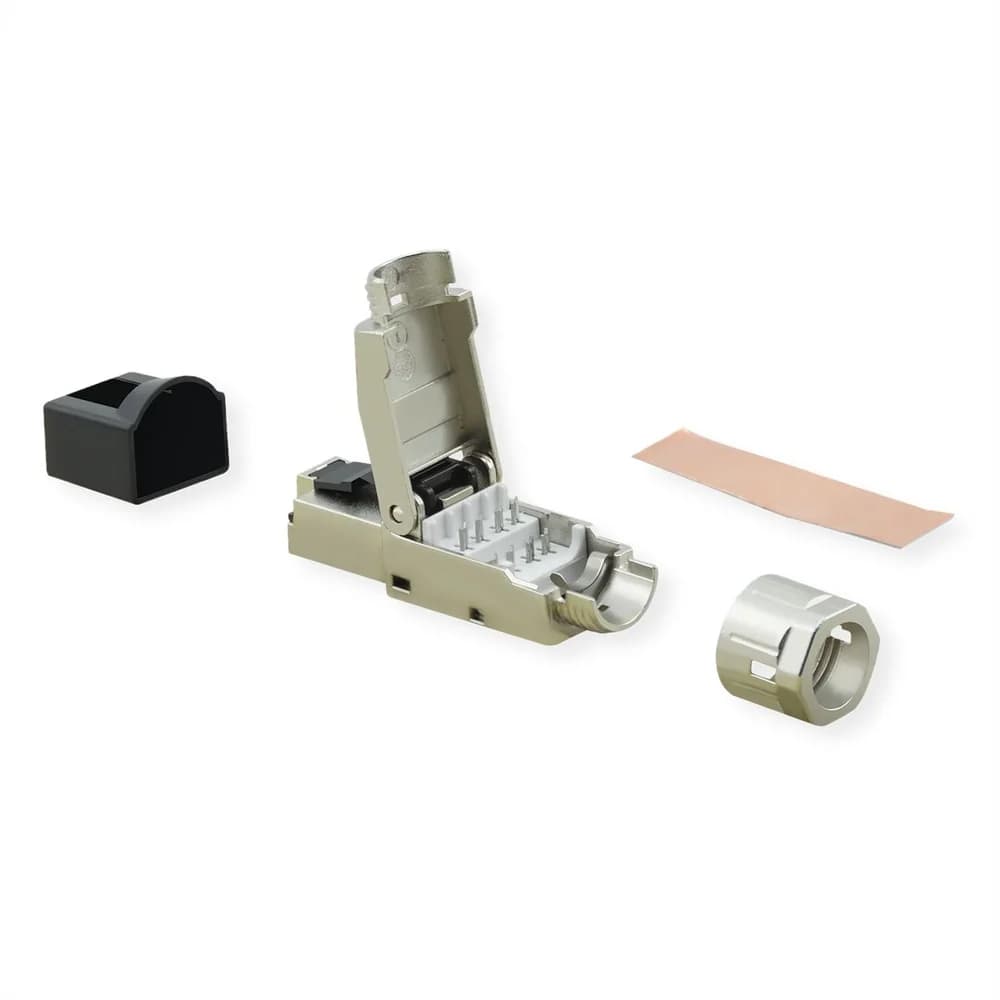

8-wire RJ45 Cat.8 (Class I) field connector plug for an easy, fast and reliable assembly without special tools.
Description
8-wire RJ45 Cat.8 (Class I) field connector plug for an easy, fast and reliable assembly without special tools.
- Full shielded with zinc alloy housing
- T568A & T568B wiring
- Cat. 8 channel performance verified
- Solid: 1/22AWG(0.65MM)-1/26AWG(0.4MM)
- Stranded: 7/22AWG-7/26AWG
- For cables with outer diameters of 5.0 to 8.5mm
- Suitable for PoE+ (IEEE 802.3at) applications
- Easy, quick and reliable installation, no special tool required
- The ring ensures 360° forwarding of the shielding of the cable to the shielding of the plug
For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat8.1 / Class I
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Material (casing)
- Zinc alloy
- separate strain relief
- yes

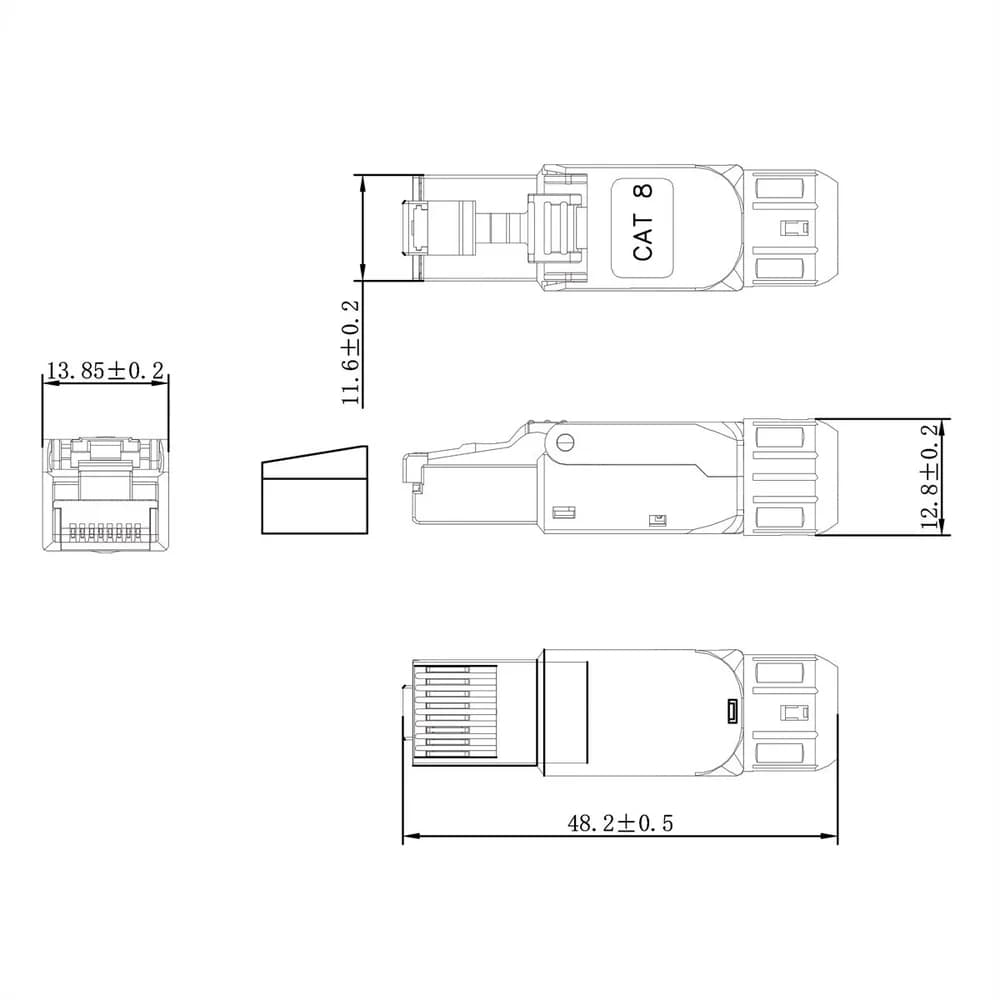

- Dimensions (HxWxD)
- 13 mm x 14 mm x 48 mm
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 13 mm
- Width
- 14 mm
- Depth
- 48 mm
- Weight
- 19 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 30 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.025 kg
