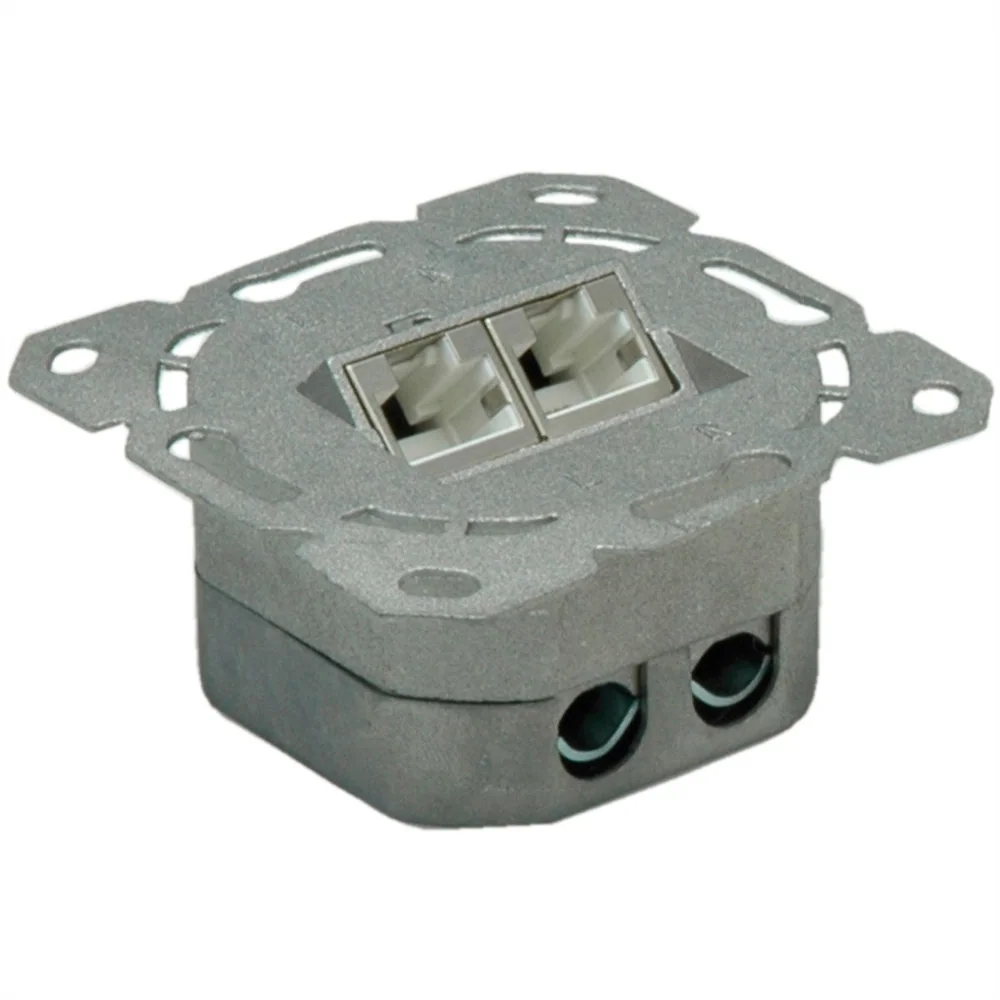

VALUE Cat.6A (Class EA) Flush Mount Wall Jack, STP, vertical, white
- Item number
- 25.99.8491-20
- Part number
- 25.99.8491
- EAN
- 7611990931361
- Brand
- VALUE
- Weight
- 181.4 g
The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks Fully screened box in a metal housing, provides security against EMI (shielded version) Cable…
Description
- The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks
- Fully screened box in a metal housing, provides security against EMI (shielded version)
- Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Connection box Cat.6A
- Colour
- white
- Scope of delivery
- 1x junction box
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Wall fixening
- Flush mount
- Quantity of ports
- 2
- Assembly cable connection
- Krone LSAplus
- Modular assembly
- no
- Material (casing)
- metal
- Shield contacts
- Yes
- Connection direction
- 45°-inclination
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Height
- 80 mm
- Width
- 80 mm
- Depth
- 39 mm
- Weight
- 181.4 g
Packaging
- Height of packaging (single piece)
- 85 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 85 mm
- Package weight (single piece)
- 0.2 kg
