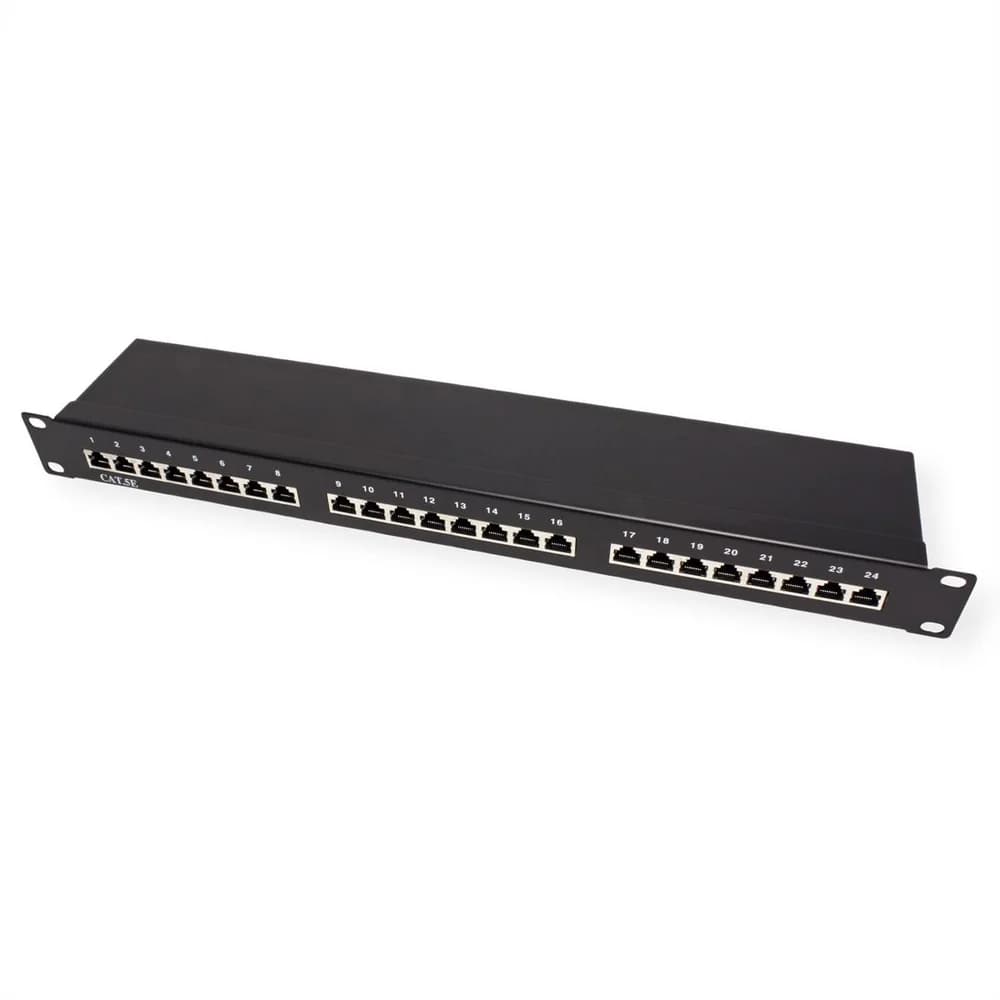

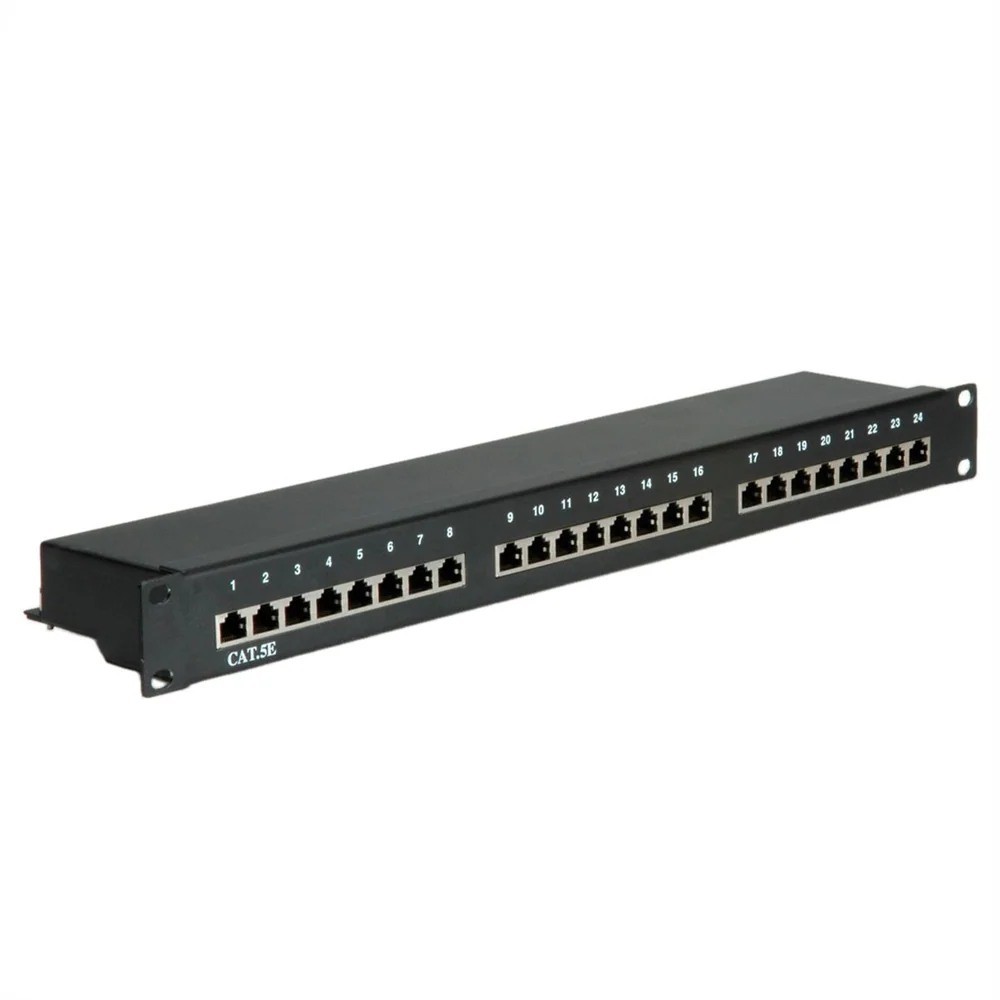

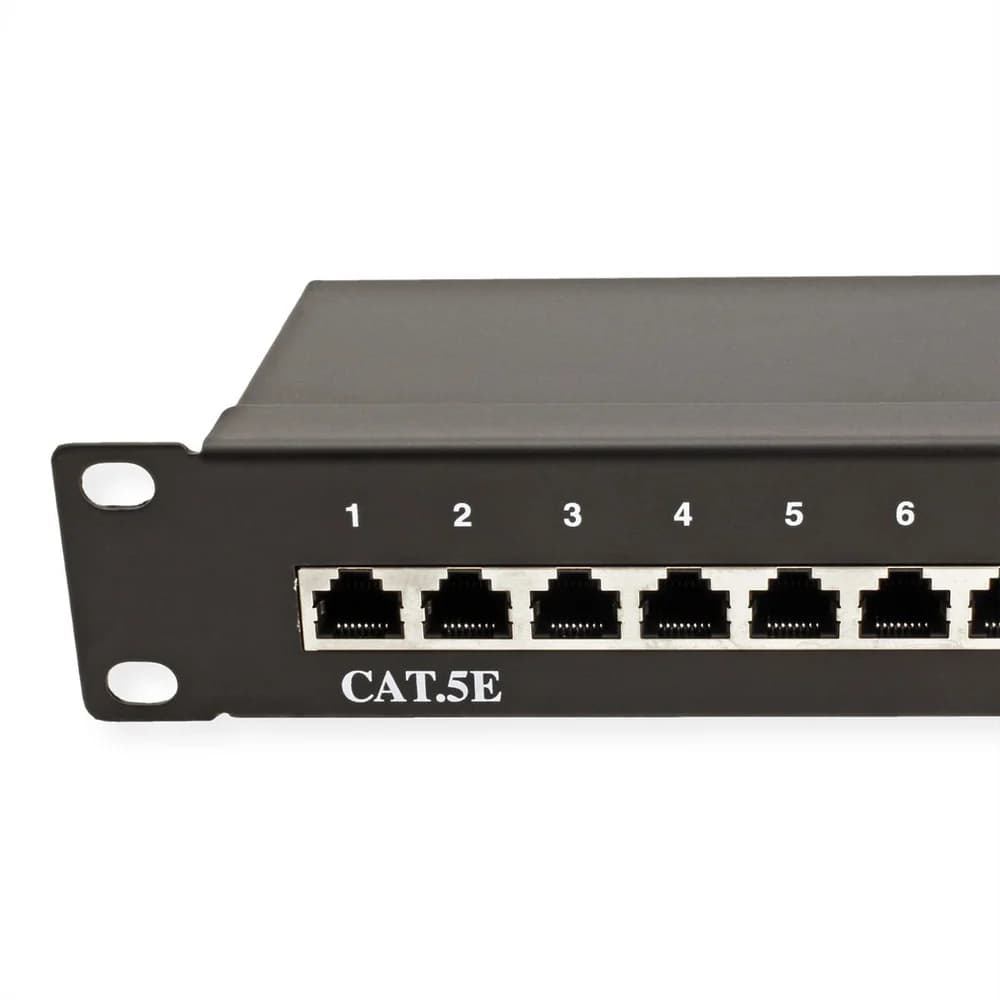

VALUE Cat.5e (Class D) 19" Patch Panel, 24 Ports, STP, black
- Item number
- 26.99.0328-5
- Part number
- 26.99.0328
- EAN
- 7611990973897
- Brand
- VALUE
- Weight
- 1484.7 g
The VALUE Cat.5e patch panels comply with the EIA/TIA 568 TSB40a standard The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568…
Description
- The VALUE Cat.5e patch panels comply with the EIA/TIA 568 TSB40a standard

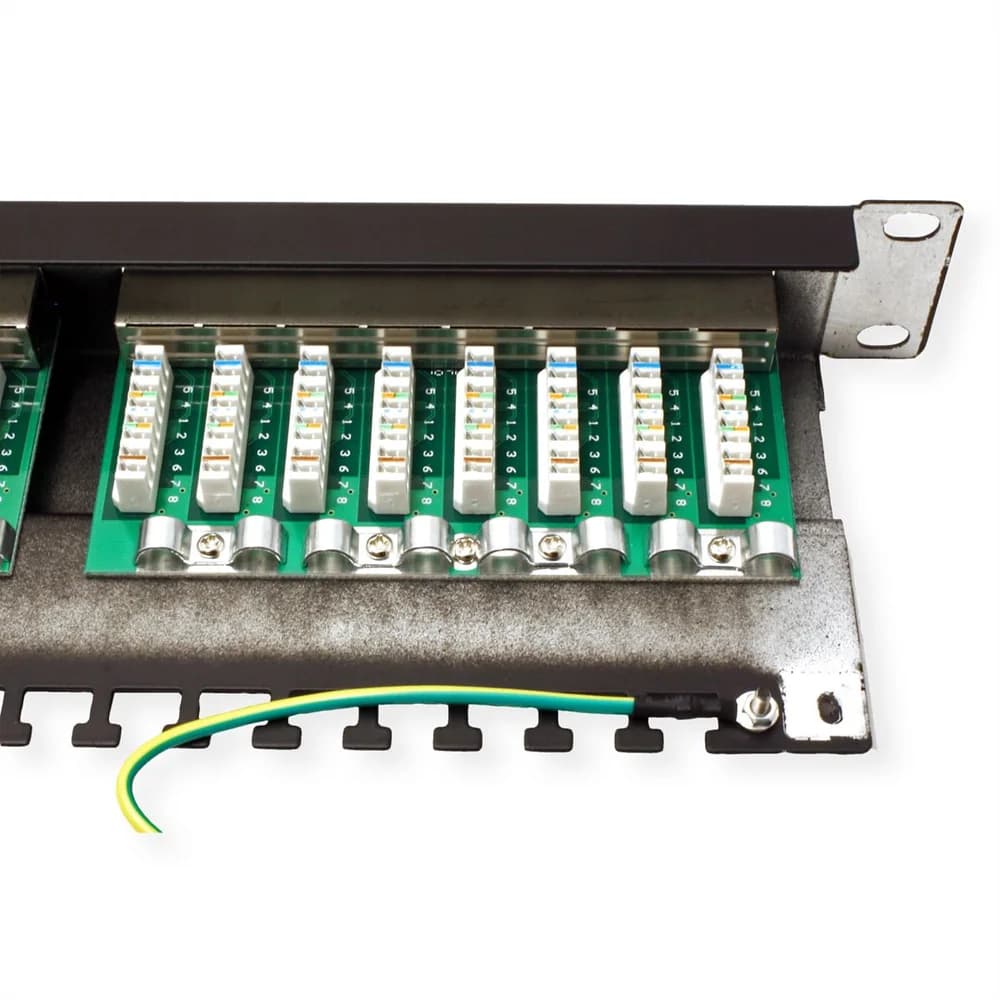

- The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
- Casing and covering hood of sheet steel
- 24 Ports
- Colours: Black
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Patchpanel Cat.5e
- Colour
- black
- Scope of delivery
- 1x patch panel, screw set, cable ties, installation instructions
- Shield type
- Screened
- Transfer quality
- Cat5e / Class D
- Cabinet system
- 19"-Technique
- Quantity of ports
- 24
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Modular assembly
- no

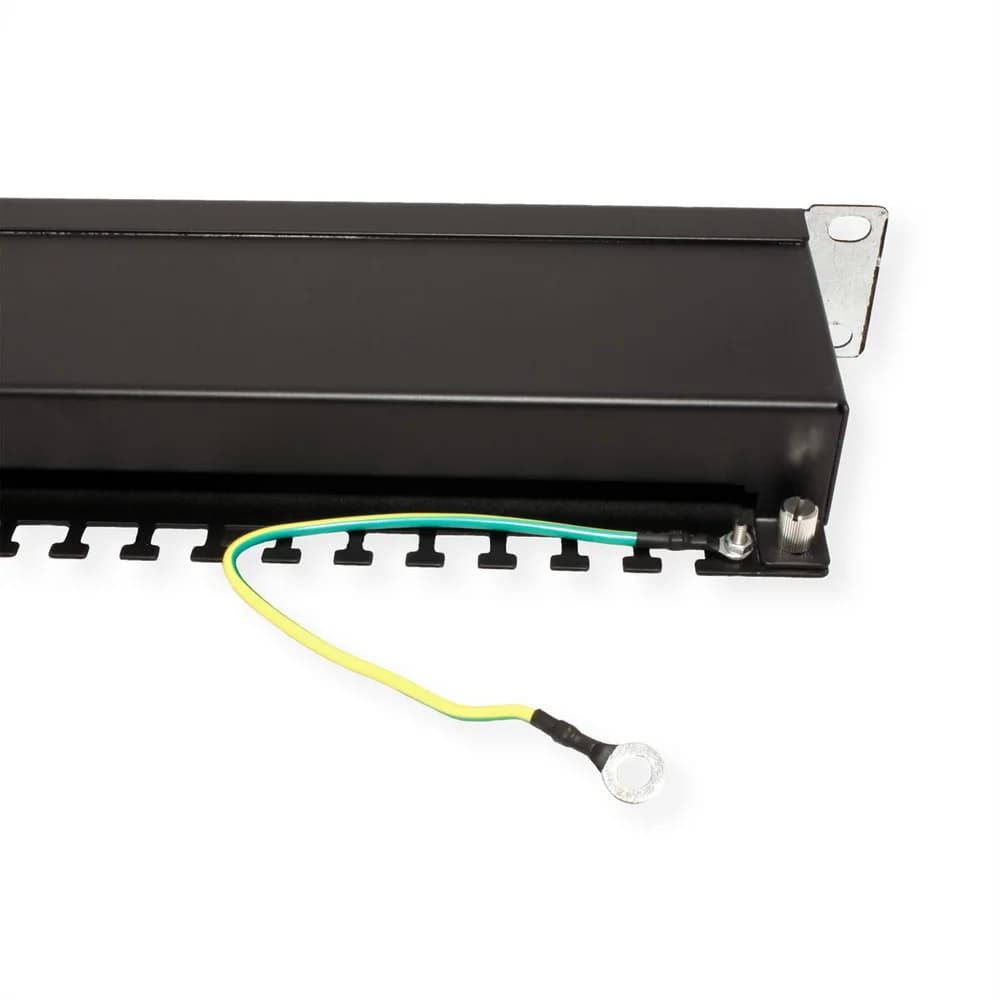

- Shield contacts
- Yes
- separate strain relief
- yes
- Connection direction
- Straight
- Height units
- 1 U
- RAL colour
- RAL 9005 Jet black
- Height
- 44.5 mm
- Width
- 482.5 mm
- Depth
- 28 mm
- Weight
- 1484.7 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 120 mm
- Depth of packaging (single piece)
- 490 mm
- Package weight (single piece)
- 1.776 kg
