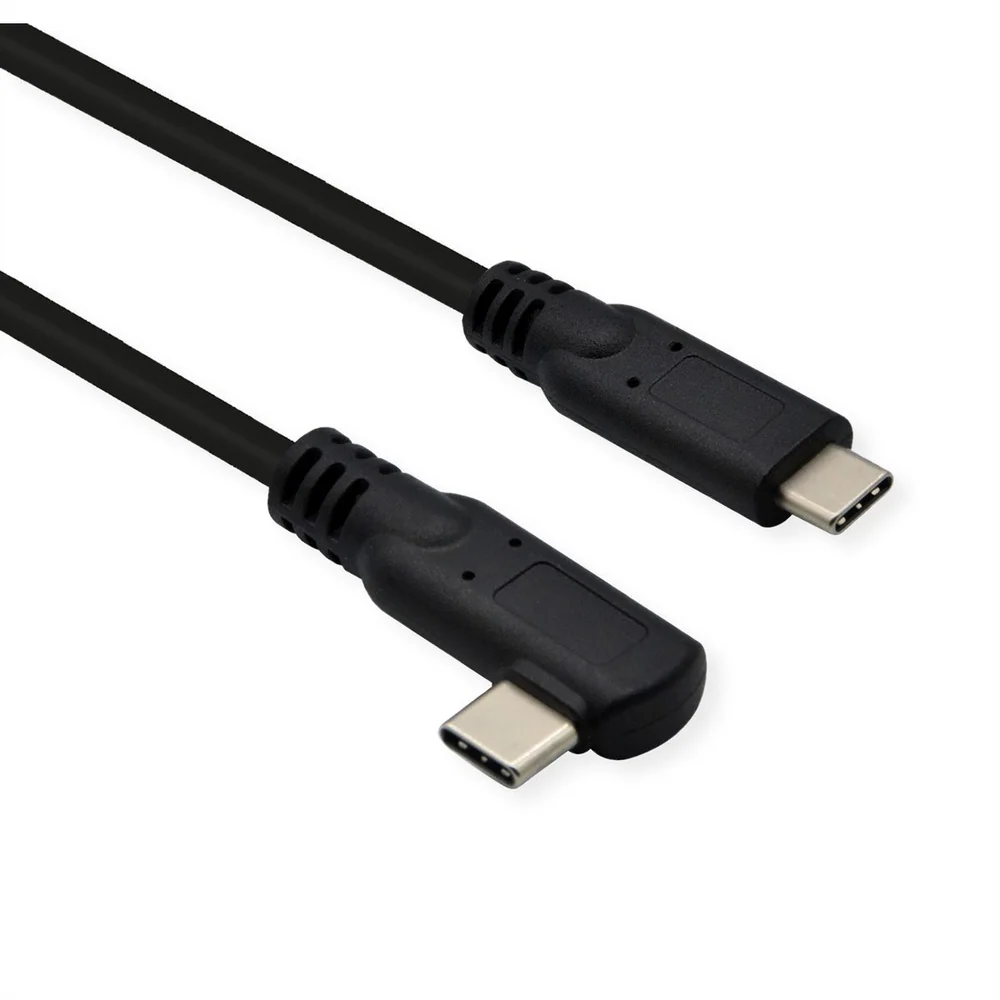

ROLINE USB 3.2 Gen 2x2 Cable, PD, C-C, M/M, 4K UHD-1, 20Gbit/s, Emark, 100W, 1x 90° angled, black, 1 m
- Item number
- 11.02.9075-10
- Part number
- 11.02.9075
- EAN
- 7630049681385
- Brand
- ROLINE
- Weight
- 38.5 g
USB 3.2 Gen 2x2 cable with up to 20 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing, fully backward compatible USB…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
USB 3.2 Gen 2x2 cable with up to 20 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing, fully backward compatible USB connectors and cables.
- High quality USB 3.1 / USB 3.2 Gen 2x2 cable with improved shielding
- With the reversible Type C connectors at both ends
- 1x Type C male connector (L-Shape, 90° angled)
- Gold-plated contacts for low wear at high plugging cycles
- Suitable for data transfer rates of up to 20 Gbit/s
- Supports USB Power Delivery to 20V / 5A
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Cable
- Product type
- USB 3.2 Cable
- Colour
- black
- Length
- 1 m
- Transfer quality
- USB 3.2 Gen 2x2 SuperSpeed 20 Gbit/s
- Connection ports
- USB Type C (USB-C) Male / USB Type C (USB-C) Male
- Side 1 Connector Type
- USB Type C (USB-C)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- USB Type C (USB-C)
- Side 2 Connector Gender
- Male
- Max. resolution
- 3840 x 2160 @60Hz (4K, UHD-1)
- Maximum data transfer rate
- 20 Gbit/s
- Area of application
- External
- Supported charging technology
- USB-PD - USB Power Delivery
- Power (max.)
- 100 W
- Cable shielding
- Screened
- Hand locking screws
- no
- Weight
- 38.5 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 50 mm
- Depth of packaging (single piece)
- 50 mm
- Package weight (single piece)
- 0.02 kg
