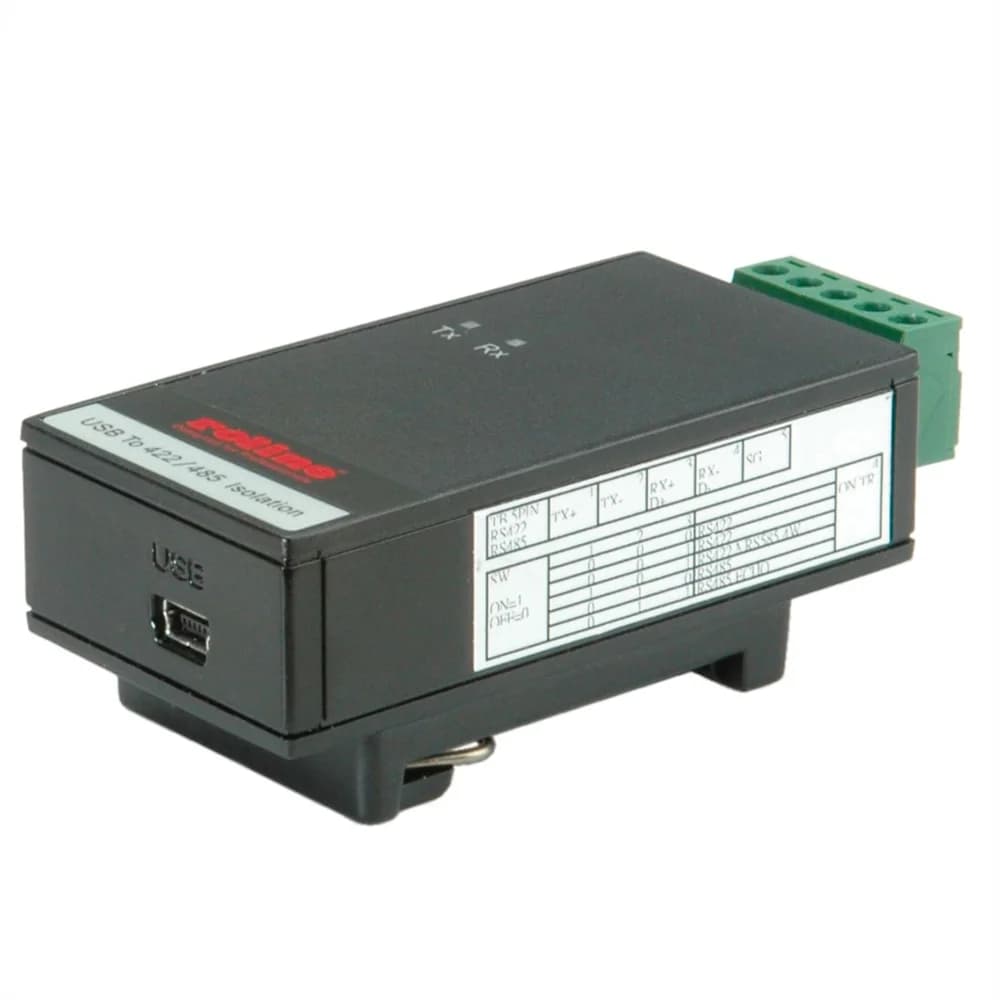

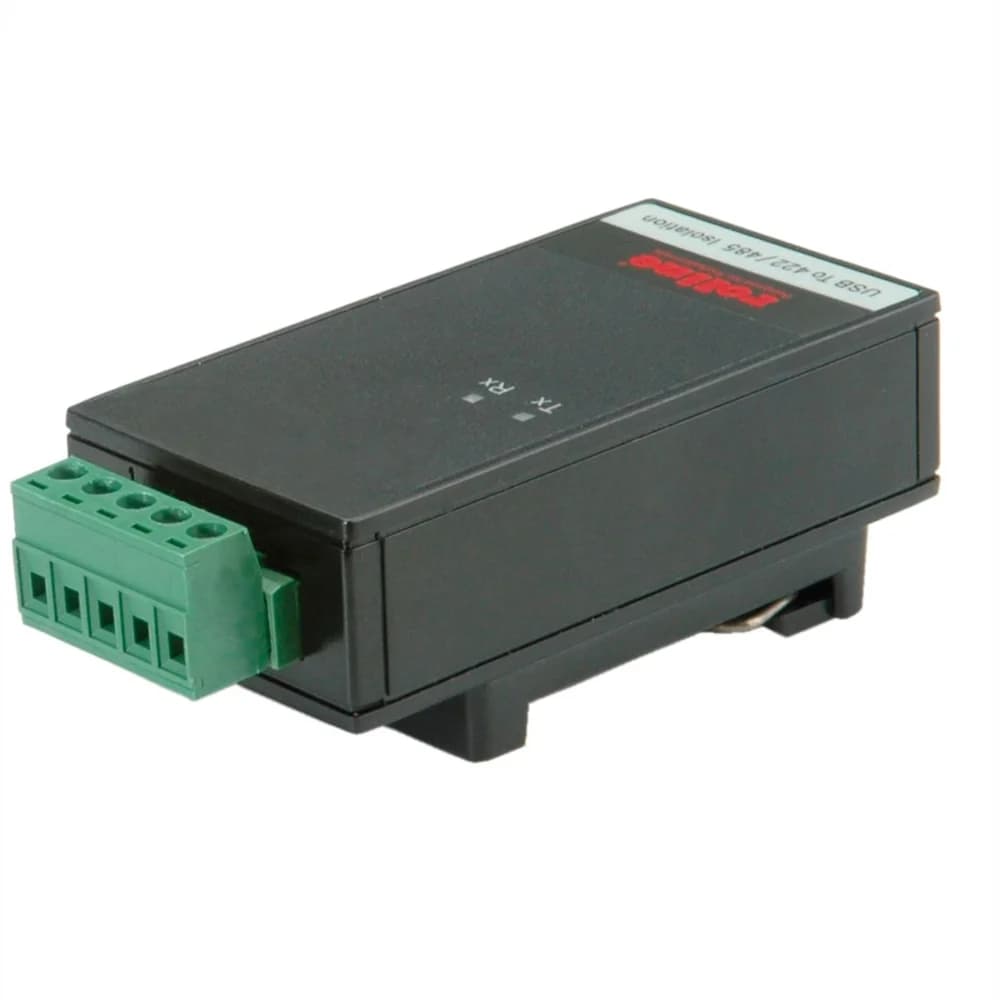

ROLINE USB 2.0 to RS422/485 Adapter, with Isolation, for DIN Rail
- Item number
- 12.02.1004-4
- Part number
- 12.02.1004
- EAN
- 7611990994847
- Brand
- ROLINE
- Weight
- 96.8 g
Converter to connect serial devices to a USB port on your PC Mode: Asynchronous serial communication Compatible with USB 2.0, USB 1.1, USB 1.0 Isolation 3000 VDC (optical) Connectors: 5-pin terminal block, 1x Mini USB…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

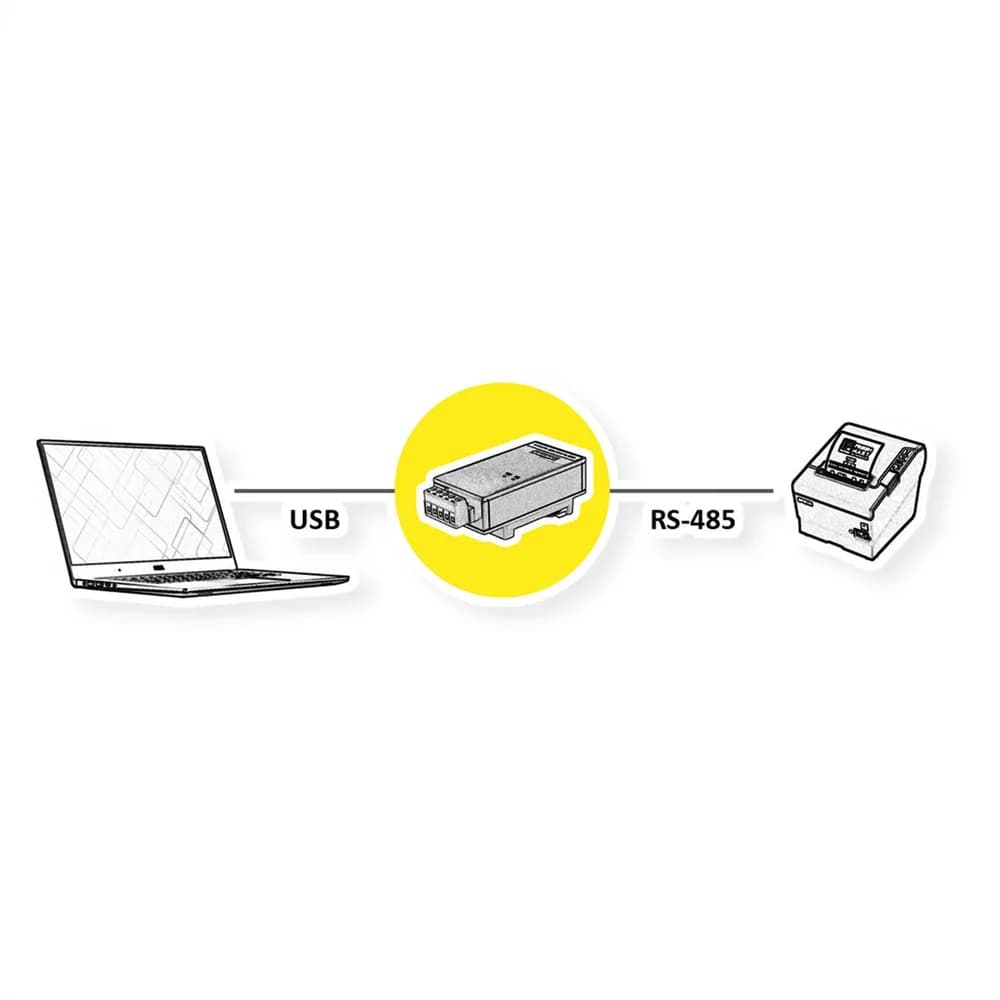

- Converter to connect serial devices to a USB port on your PC
- Mode: Asynchronous serial communication
- Compatible with USB 2.0, USB 1.1, USB 1.0
- Isolation 3000 VDC (optical)
- Connectors: 5-pin terminal block, 1x Mini USB type B
- Data transfer rate of up to 115 Kbit/s
- Terminal resistance and Echo mode
- DIP switches for terminal settings
- Signals: TX+, TX-, RX+, RX-, SGND
- Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
- Status LEDs

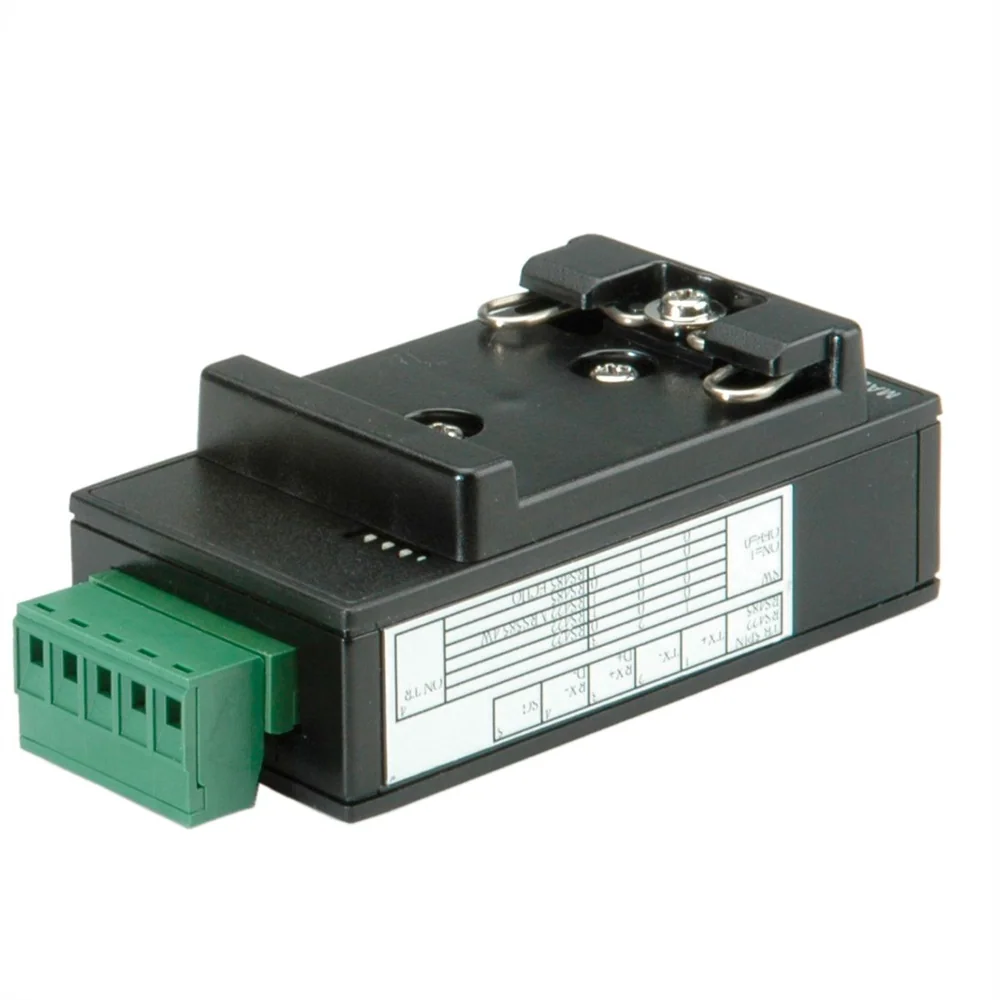

- For DIN rail mounting
- Power supply over Mini USB type B connector (54 mA)
- Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB - Serial Converter
- Colour
- black
- Scope of delivery
- Converter, USB cable, driver CD, manual
- Side 1 connection (PC)
- Mini USB
- Side 2 connection (Peripherals)
- Terminal block
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- Terminal block, 5-pin
- Side 2 Connector Gender
- Female
- Conversion direction
- RS422/RS485- USB
- Area of application
- External
- Dimensions (HxWxD)
- 22 x 42 x 92 mm
- Technical particularity
- DIN Rail
- Height
- 22 mm
- Width
- 42 mm
- Depth
- 92 mm
- Weight
- 96.8 g
Packaging
- Height of packaging (single piece)
- 45 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.2 kg
