21.15.1710-100
ROLINE U/FTP Data Center Cable Cat.7, with RJ45 Plug, 500 MHz(Class EA), LSOH, slim, white, 0.5 m
0.5 m · white
ROLINE U/FTP Data Center Cable Cat.7, with RJ45 Plug, 500 MHz(Class EA), LSOH, slim, white, 3 m
- Item number
- 21.15.1713-50
- Part number
- 21.15.1713
- EAN
- 7630049690769
- Brand
- ROLINE
- Weight
- 45.6 g

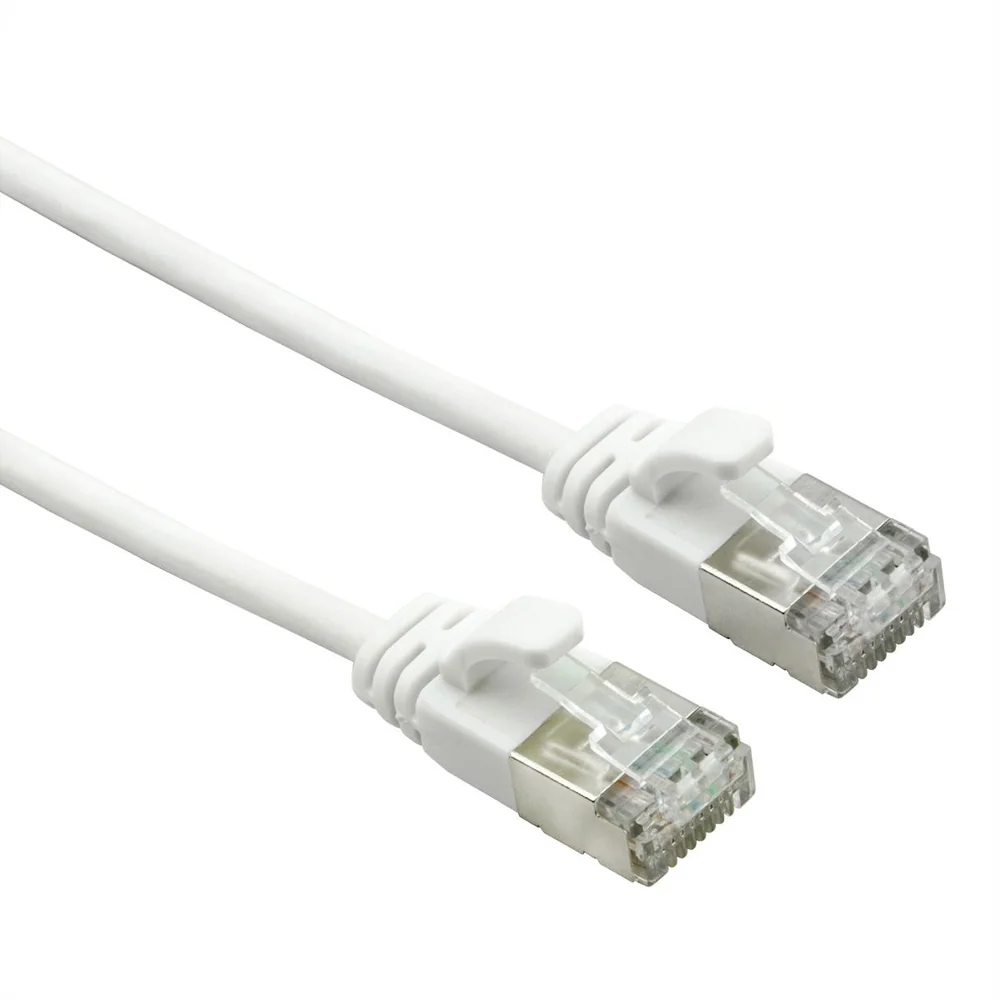

Category 7 twisted-pair cable with RJ-45 connectors on both sides. Particularly thin and flexible cable with individual pairs of wires in aluminium-laminated foil for use in confined spaces, such as in data centres.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Category 7 twisted-pair cable with RJ-45 connectors on both sides. Particularly thin and flexible cable with individual pairs of wires in aluminium-laminated foil for use in confined spaces, such as in data centres.
- Durable cable thanks to moulded-on bend protection
- Suitable as a cable in patch panels or as device connection cable and intended for use in the LAN
- Contact assignment: 1:1 according to EIA/TIA568, 8 cores
- Structure: 8 cores stranded wire, pairs shielded with alu-laminated foil
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- U/FTP patch cord
- Colour
- white
- Length
- 3 m
- Shield type
- U/FTP
- Transfer quality
- Cat6A / Class EA
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 32
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Slim cable
- yes
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- Cable LSOH
- yes
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Weight
- 45.6 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.02 kg
