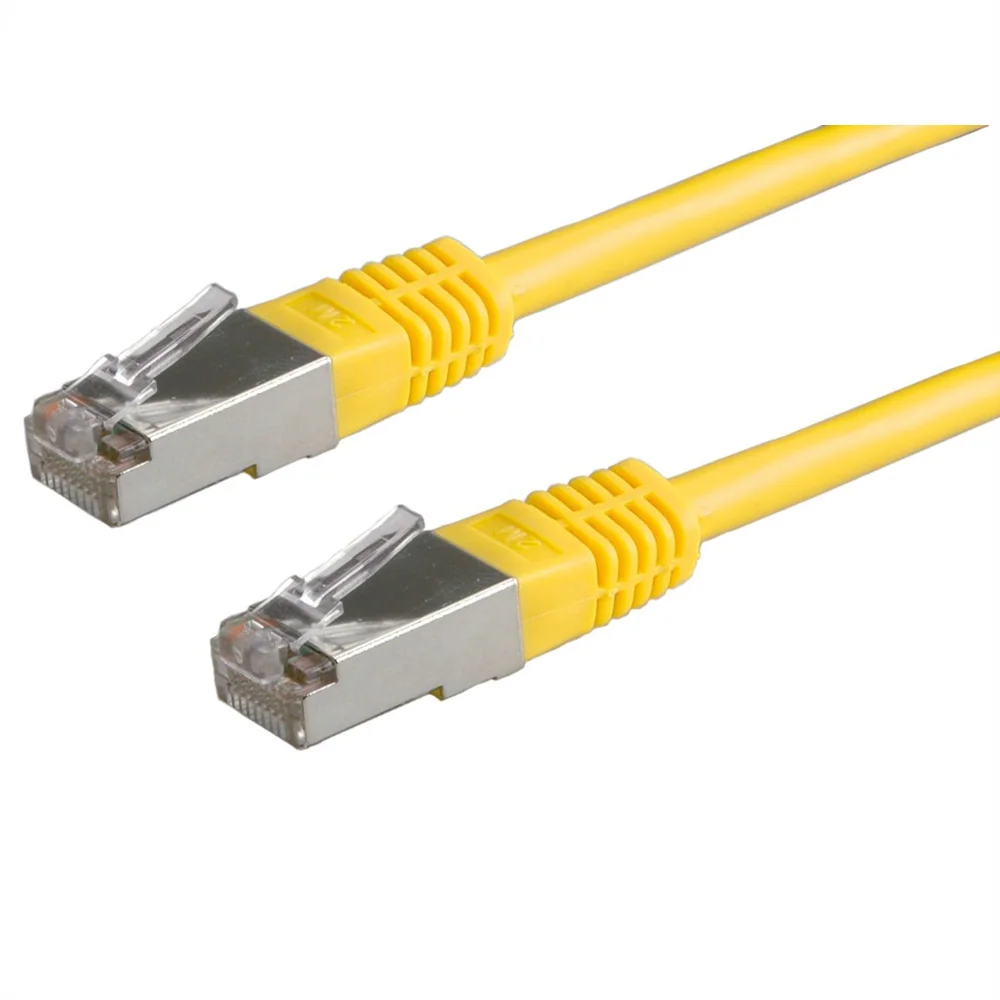

ROLINE SF/UTP Patch Cord Cat.5e (Class D), yellow, 0.5 m
- Item number
- 21.15.0382-100
- Part number
- 21.15.0382
- EAN
- 7611990967018
- Brand
- ROLINE
- Weight
- 24.2 g
Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire. Complete braid shielding and aluminium clad polyester foil.
For a structured cabling system we recommend to use the following components: ROLINE Cat.5e S/FTP Cable, Solid Wire, AWG24: 21.15.0019 (100 m), 21.15.0020 (300 m); ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory); ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black); ROLINE Cat.5e S/FTP Patch Cord, grey, 5 m: 21.15.0305. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- SF/UTP patch cord
- Colour
- yellow
- Length
- 0.5 m
- Shield type
- SF/UTP
- Transfer quality
- Cat5e / Class D
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 26
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Locking lever
- no
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- yellow
- Cable LSOH
- no
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Weight
- 24.2 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 140 mm
- Package weight (single piece)
- 0.027 kg
