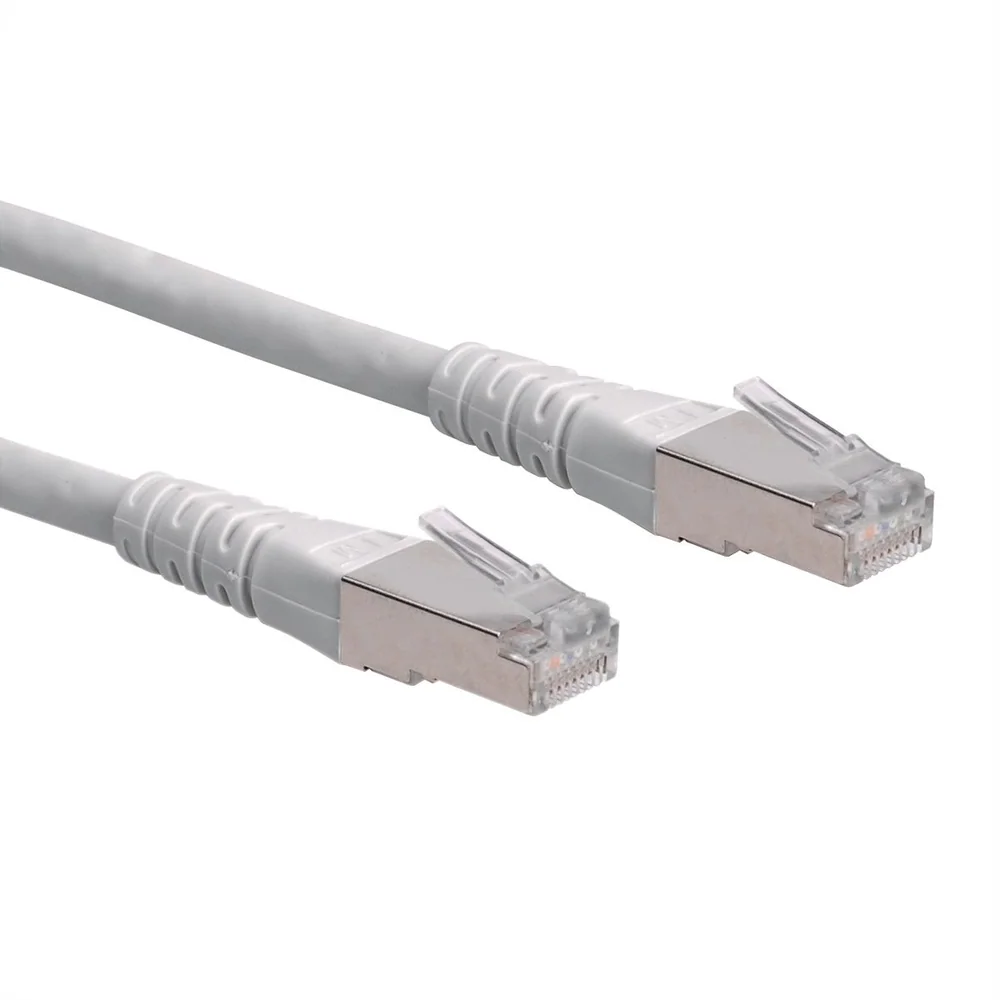

ROLINE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), grey, 0.5 m
- Item number
- 21.15.0830-100
- Part number
- 21.15.0830
- EAN
- 7611990955725
- Brand
- ROLINE
- Weight
- 28.3 g
Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for…
Description
Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire. Complete braid shielding. Pairs shielded with aluminium clad polyester foil.
For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black); ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- S/FTP patch cord (PiMF)
- Colour
- grey
- Length
- 0.5 m
- Shield type
- S/FTP (PiMF)
- Transfer quality
- Cat6 / Class E
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 26
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Locking lever
- no
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- grey
- Cable LSOH
- no
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Weight
- 28.3 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 110 mm
- Depth of packaging (single piece)
- 230 mm
- Package weight (single piece)
- 0.034 kg
