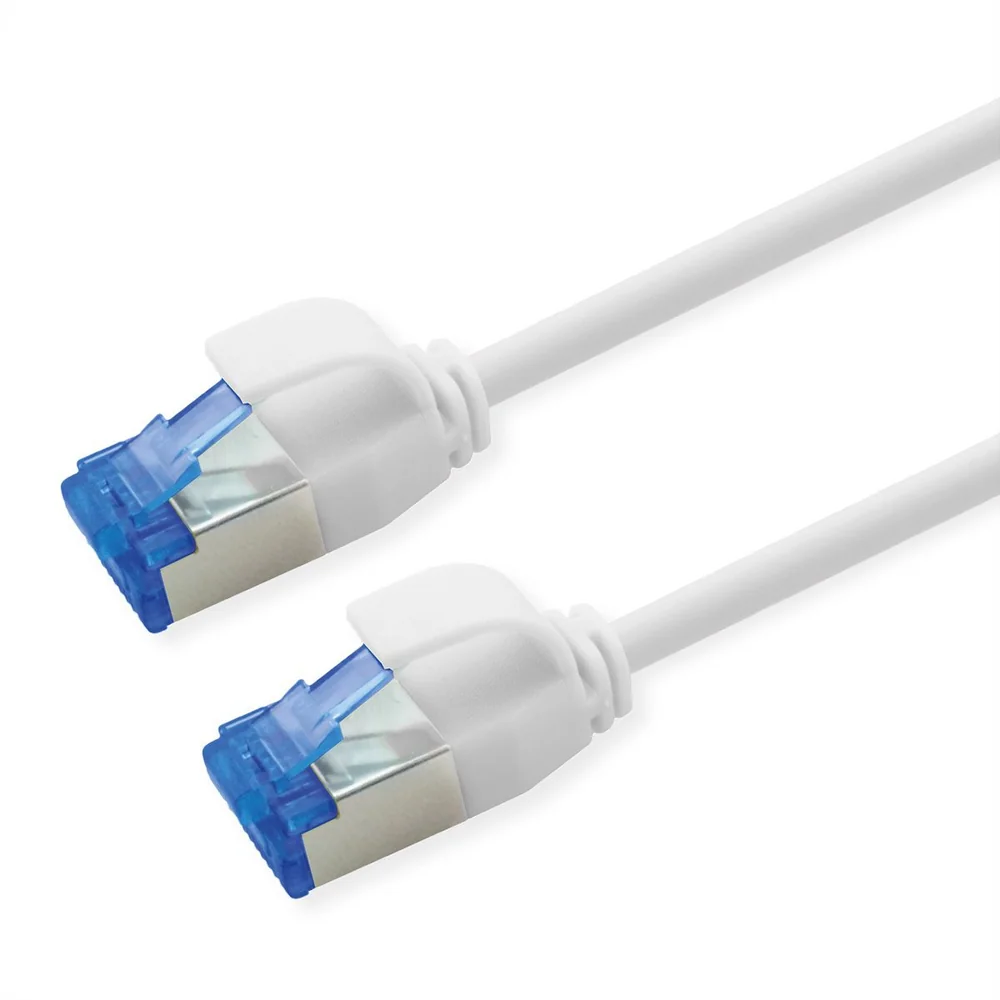

ROLINE S/FTP Patch Cord Cat.6A / Class EA, LSOH, Slim, PoE, white, 7 m
- Item number
- 21.15.4366-40
- Part number
- 21.15.4366
- EAN
- 7630049678446
- Brand
- ROLINE
- Weight
- 155 g
S/FTP (PiMF) Cat. 6A LSOH Patch Cord with shielded RJ-45 connectors on both sides. PoE-capable although it is slim, flexible and tangle-free.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
S/FTP (PiMF) Cat. 6A LSOH Patch Cord with shielded RJ-45 connectors on both sides. PoE-capable although it is slim, flexible and tangle-free.
- S/FTP (PiMF) LSOH Cat. 6A Patch Cord
- For use in 10-Gigabit Ethernet networks, especially for connecting devices (e.g. IP cameras)
- Slim, flexible and tangle-free
- Suitable for PoE applications and multimedia applications where the extension is working over TP
- High quality plugs with gold plated contacts
- Durable due to moulded kink protection
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- S/FTP patch cord (PiMF)
- Colour
- white
- Length
- 7 m
- Scope of delivery
- Patch Cord
- Shield type
- S/FTP (PiMF)
- Transfer quality
- Cat6A / Class EA
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 28
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Slim cable
- yes
- Bend radius
- Min. 27 mm
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- white
- External cable diameter
- 4.5 +/-0.2mm
- Cable LSOH
- yes
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 75 °C
- Weight
- 155 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.163 kg
