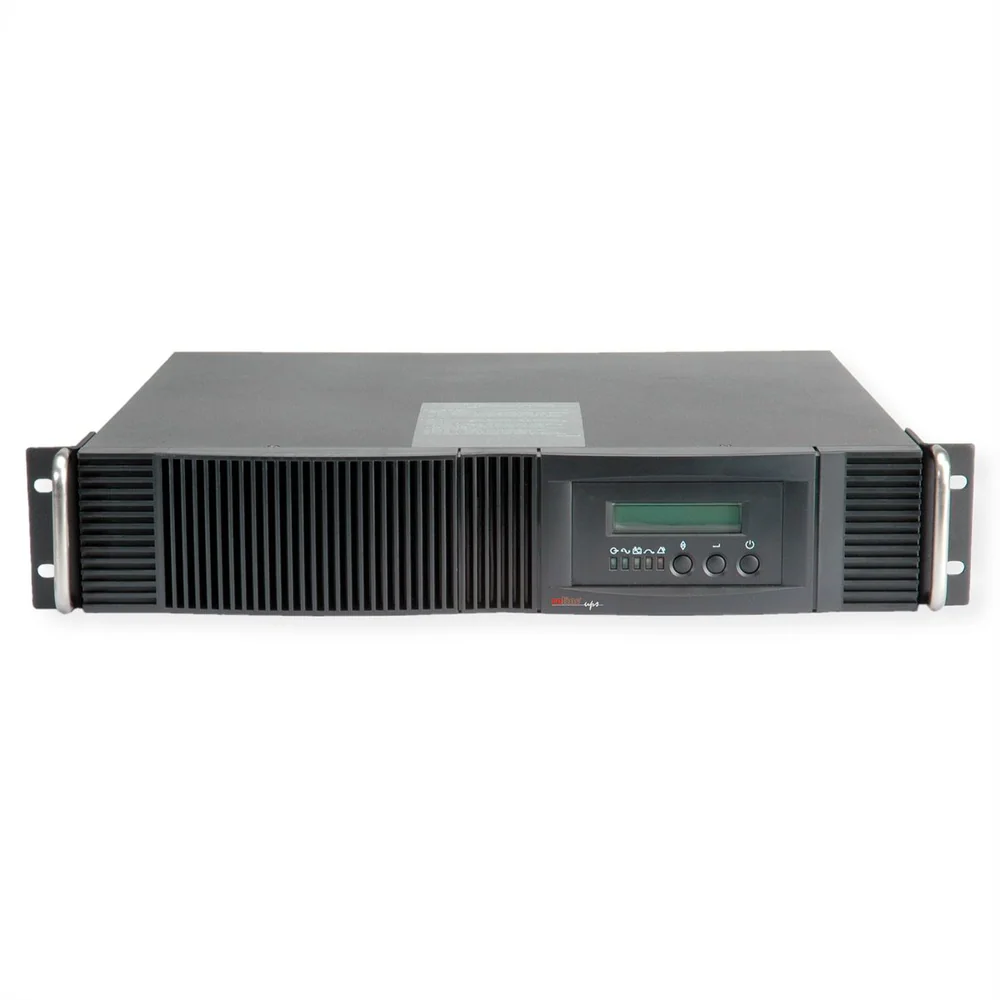

ROLINE ProSecure III 1500 RM2U - Online UPS, 19" Rack Version, black
- Item number
- 19.40.1070
- Part number
- 19.40.1070
- EAN
- 7611990130504
- Brand
- ROLINE
- Weight
- 18000 g
NOTE: The 19" rail kit is not included and is available separately as an accessory.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.
Product features:
Product features:
- Cold start function (DC power on)
- Lightning and surge protection
- Battery replacement warning
- Emergency Power Off function
- Battery remain time display
- LCD display front panel
- Power factor correction
- Support USB communication
- Multiple language LCD display
- On line output voltage selected
- Hot swappable battery by user
- True on-line technology provides all power protection
- Pure sine-wave output with less than 3% THD
- Fully digitized microprocessor controlled
- Short Circuit and overload protection
- Advanced
- Automatic battery charge in UPS off mode
- Automatic diagnostics & battery check
- RS-232 communication port with monitoring software
- Network/fax/modem surge protection
- Extended back up time with battery pack
- Load segmentation receptacles controllable
- High efficiency mode selectable
- Fan speed auto control when loads varies
- UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,
- Contents: UPS, cable set, UPS management software
NOTE: The 19" rail kit is not included and is available separately as an accessory.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- UPS
- Product type
- UPS Online, Rackmount
- Colour
- black
- Scope of delivery
- UPS, Software, Cable Set
- Classification (IEC 62040-3)
- VFI-SS-111
- UPS technology
- Online
- Power class
- 1000 ... 1900 VA
- Output (VA/W)
- 1500 / 1350 @ Pf. 0.9
- Efficiency
- 95 %
- Backup time
- 3 min
- Backup time full/half-load
- 3-5 / 9 min
- Dimensions (HxWxD)
- 84 x 428 x 500 mm; 2 HE
- Mounting form
- 19" Rackmount
- Voltage (input)
- 160-230V
- Voltage (output)
- 230V
- Output voltage regulation
- ± 2%
- Frequency
- 50Hz ± 3%
- Connector type (input)
- cold connector IEC 320 C14
- Outputs
- 4
- Connector type (output)
- 4x cold connector IEC 320 C13
- Phase in/output
- 230V/230V / 50Hz
- Over current protection
- EMI,- RFI-Filter
- Max. quantity of delay expansion units
- 2
- Delay expansion unit
- 2
- Slots for adapter card
- 1
- Slot for adapter card
- 1
- Interface
- RS232, USB
- RS-232 Interface
- yes
- USB 2.0 Interface
- yes
- Hot swap batteries
- Yes, front side
- Bypass
- Automatic + manual
- Additional over current protector
- no
- Activity
- Display
- Activity LED
- 5
- Activity Display
- LCD
- incl.Management Software
- Windows
- Internal cooling
- Active, fan
- Ambient temperature
- 0-40°C
- Mains connection
- Cold appliance connection
- Battery category
- Industrial battery
- Number of batteries
- 4 pieces
- Battery Voltage
- 12 V
- Battery Capacity
- 7 Ah
- Battery type
- Pack
- Battery
- built-in
- Battery technology
- Lead-acid
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 84 mm
- Width
- 428 mm
- Depth
- 500 mm
- Weight
- 18 kg
Packaging
- Height of packaging (single piece)
- 210 mm
- Width of packaging (single piece)
- 550 mm
- Depth of packaging (single piece)
- 620 mm
- Package weight (single piece)
- 24.312 kg
