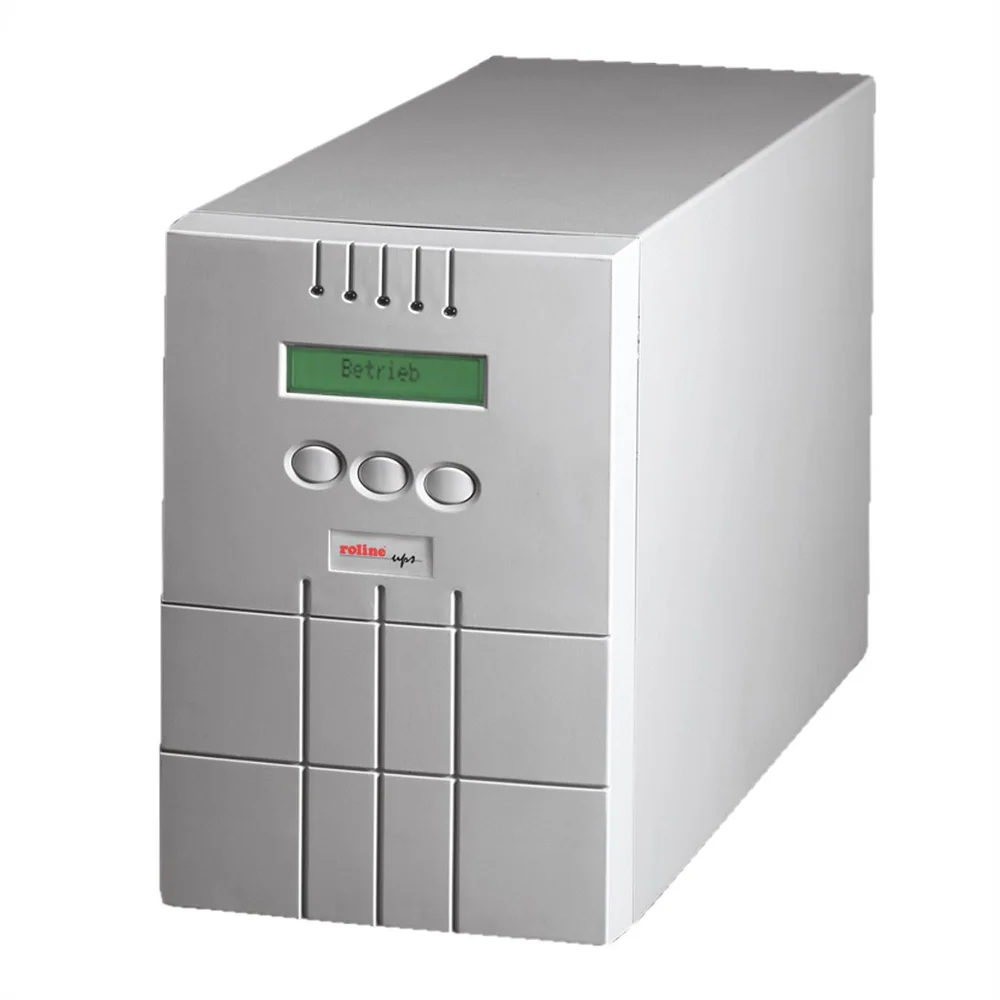

ROLINE ProSecure II 1500 - Online UPS

Item number: 19.40.1083
Part number: 19.40.1083
EAN: 7611990154814
Brand: ROLINE
Weight: 20000 g

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag,…

This product is not sold online — send an enquiry and we will reply with price and lead time.

Compare

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:

Cold start function (DC power on)
Lightning and surge protection
Battery replacement warning
Emergency Power Off function
Battery remain time display
LCD display front panel
Power factor correction
Support USB communication
Multiple language LCD display
On line output voltage selected
Hot swappable battery by user
True on-line technology provides all power protection
Pure sine-wave output with less than 3% THD
Fully digitized microprocessor controlled
Short Circuit and overload protection
Advanced battery management (ABM)

Automatic battery charge in UPS off mode
Automatic diagnostics & battery check
RS-232 communication port with monitoring software
Network/fax/modem surge protection
Extended back up time with battery pack
Load segmentation receptacles controllable
High efficiency mode selectable
Fan speed auto control when loads varies
UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64, MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
Contents: UPS, cable set, UPS management software

Specifications

Product

Manufacturer: ROLINE
Product group: UPS
Product type: UPS Online
Colour: grey
Scope of delivery: UPS, Software, Cable Set
Classification (IEC 62040-3): VFI-SS-111
UPS technology: Online
Power class: 1000 ... 1900 VA
Output (VA/W): 1500 / 1050
Efficiency: 95 %
Backup time: 5 min
Backup time full/half-load: 5 / 9 min
Dimensions (HxWxD): 235 x 155 x 410 mm
Mounting form: Tower
Voltage (input): 160-230V
Voltage (output): 230 V
Output voltage regulation: ± 2%
Frequency: 50Hz ± 3%
Connector type (input): cold connector IEC 320 C14
Outputs: 4
Connector type (output): 4x cold connector IEC 320 C13
Phase in/output: 230V/230V / 50Hz
Over current protection: EMI,- RFI-Filter
Max. quantity of delay expansion units: 2
Delay expansion unit: 2
Slots for adapter card: 1
Slot for adapter card: 1
Interface: RS232, USB
RS-232 Interface: yes
USB 2.0 Interface: yes
Hot swap batteries: Yes, front side
Bypass: Automatic + manual
Additional over current protector: no
Activity: Display
Activity LED: 5
Activity Display: LCD
incl.Management Software: Windows
Internal cooling: Active, fan
Ambient temperature: 0 - 40 °C
Mains connection: Cold appliance connection
Battery category: Industrial battery
Number of batteries: 3 pieces
Battery Voltage: 12 V
Battery Capacity: 9 Ah
Battery type: Pack
Battery: built-in
Battery technology: Lead-acid
Operating temperature min.: 0 °C
Operating temperature max.: 40 °C
Height: 235 mm
Width: 155 mm
Depth: 410 mm
Weight: 20 kg
Power rating (VA / W): with 0 / 1 / 2 Battery pack (minutes), according to manufacturer
1500/1050: 5 / 13 / 28
1350/945: 6 / 16 / 34
1200/840: 7 / 20 / 40
1050/735: 9 / 25 / 48
900/630: 11 / 30 / 56
750/525: 14 / 37 / 66
600/420: 19 / 45 / 85
450/315: 27 / 60 / 140
300/210: 40 / 100 / 220
150/105: 60 / 270 / 400
