19.08.0125-4
ROLINE Portable EV Charging Cable, Italian Plug - Type 2, Mode 2, 10 A, 2.3 kW, 5 m
5 m · black
ROLINE Portable EV Charging Cable, Italian Plug - Type 2, Mode 2, 10 A, 2.3 kW, 3 m
- Item number
- 19.08.0123-4
- Part number
- 19.08.0123
- EAN
- 7630049673595
- Brand
- ROLINE
- Weight
- 1770 g

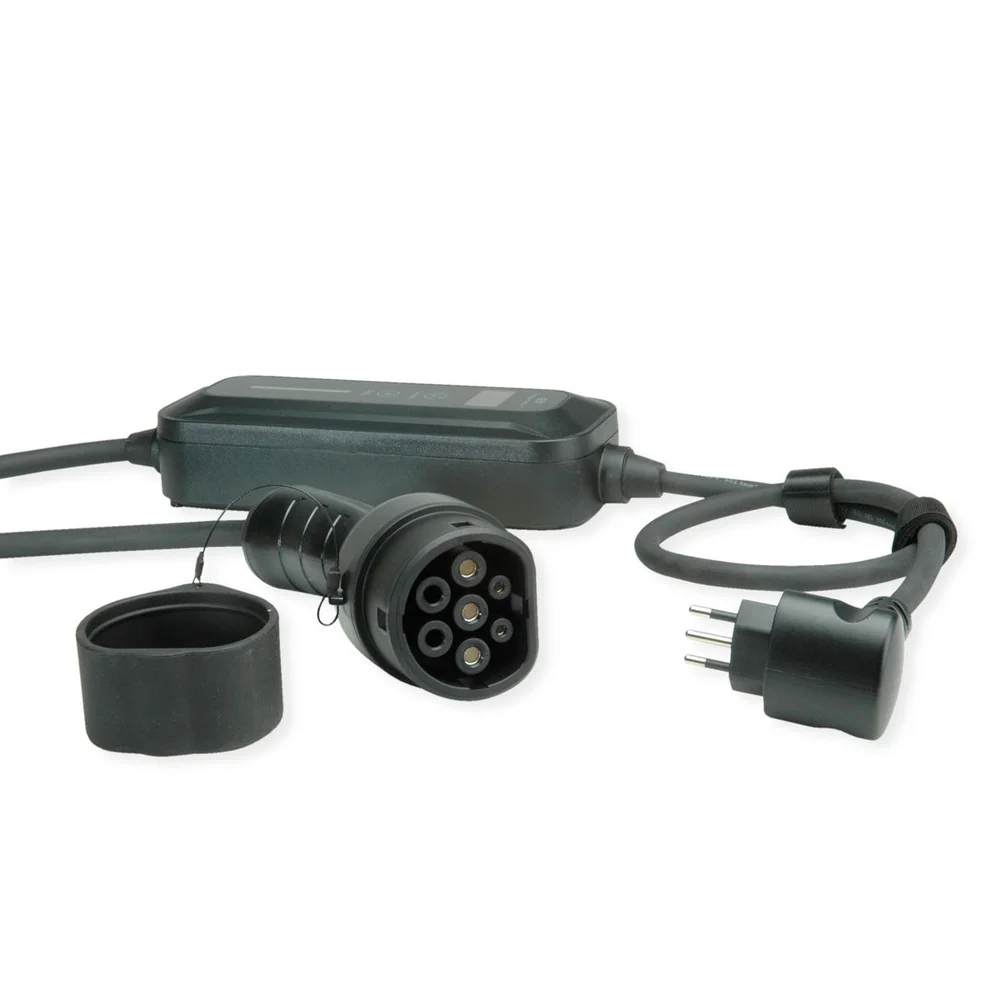

ROLINE Portable Charging Cable Mode 2 with Italian Plug (Type L) and Type 2 Connector for Electric and Hybrid Cars - with up to 2.3 kW.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE Portable Charging Cable Mode 2 with Italian Plug (Type L) and Type 2 Connector for Electric and Hybrid Cars - with up to 2.3 kW.
- Enables easy and fast charging at home or on the go
- Suitable for charging electric and hybrid vehicles
- Connections: Type L /(Italian Plug) and Type 2 Connector
- For all electric or hybrid cars with Type 2 connection
- Ergonomically shaped plug and coupler
- IP-Protection of Type 2 Connector: IP65 (mated) / IP54 (unmated)
- IP-Protection of IC-CPD (In-cable control and protection device): IP67
- 10 A / 1-phase (250 VAC)
- Max. Charging Power: 2,3 kW
- Flame retardant (IEC 60332-1)
- Halogen free (IEC 60754-1/2)
Note:
It is recommended to wire the supply line to the socket with 2.5 mm². Mode 2 emergency charging cable chargers are not suitable for permanently charging an electric car.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Power Cables
- Product type
- Electric car charging cable
- Colour
- black
- Length
- 3 m
- Scope of delivery
- Charging Cable, Carrying Bag, User Manual
- Charging power
- 2.3 kW
- Current
- 10 A
- Number of phases
- 1-phase
- Supported charging technology
- Mode-2
- Side 1 Connector Type
- CEI23-50, Type-L
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
- Side 2 Connector Gender
- Female
- Material (external cable mantle)
- TPU
- Cable LSOH
- flame retardant
- Protection class (IP Code)
- IP67 IP65 IP54
- Technical particularity
- Rated Current: 6/8/10A
- Regional use
- Italy, San Marino, Vatican City, Albania
- Mains connection
- Power plug Italy, Type-L
- Operating temperature min.
- -30 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 85 °C
- Height
- 80 mm
- Width
- 360 mm
- Depth
- 360 mm
- Weight
- 1770 g
Packaging
- Height of packaging (single piece)
- 100 mm
- Width of packaging (single piece)
- 370 mm
- Depth of packaging (single piece)
- 370 mm
- Package weight (single piece)
- 2.5 kg
