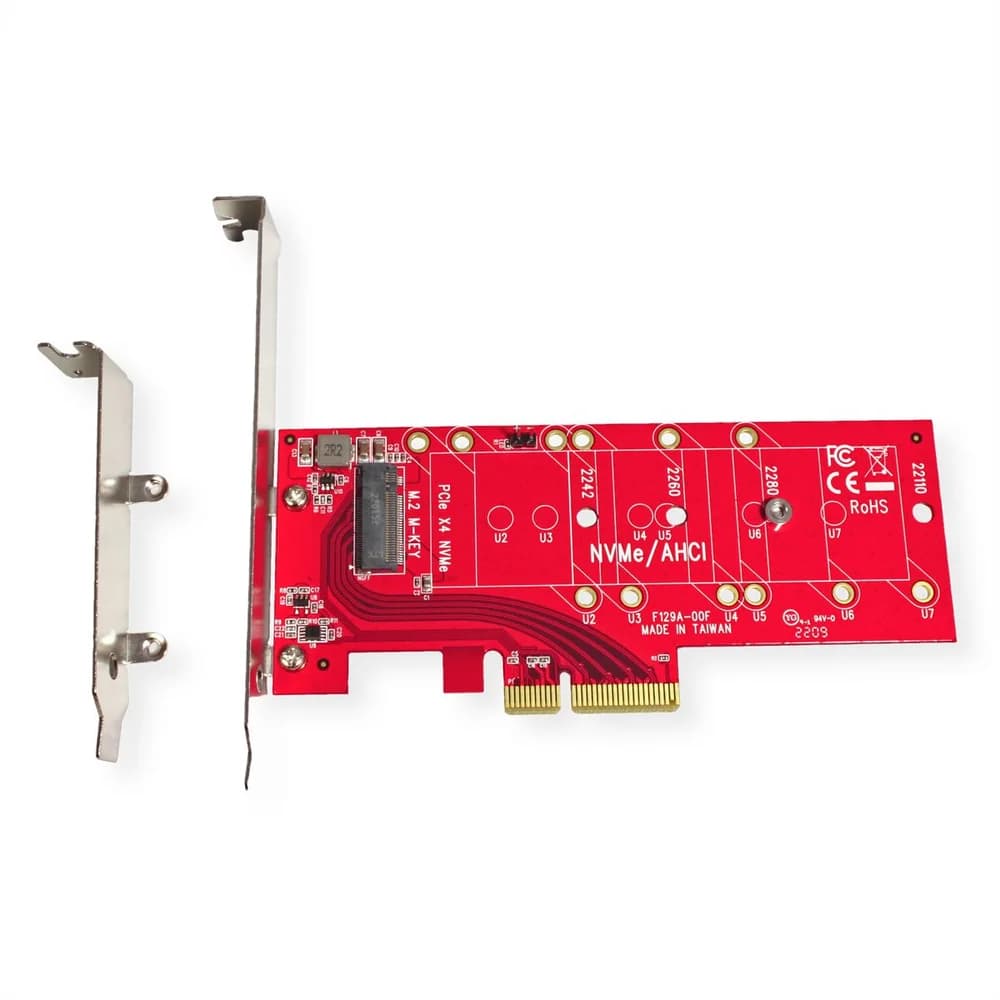

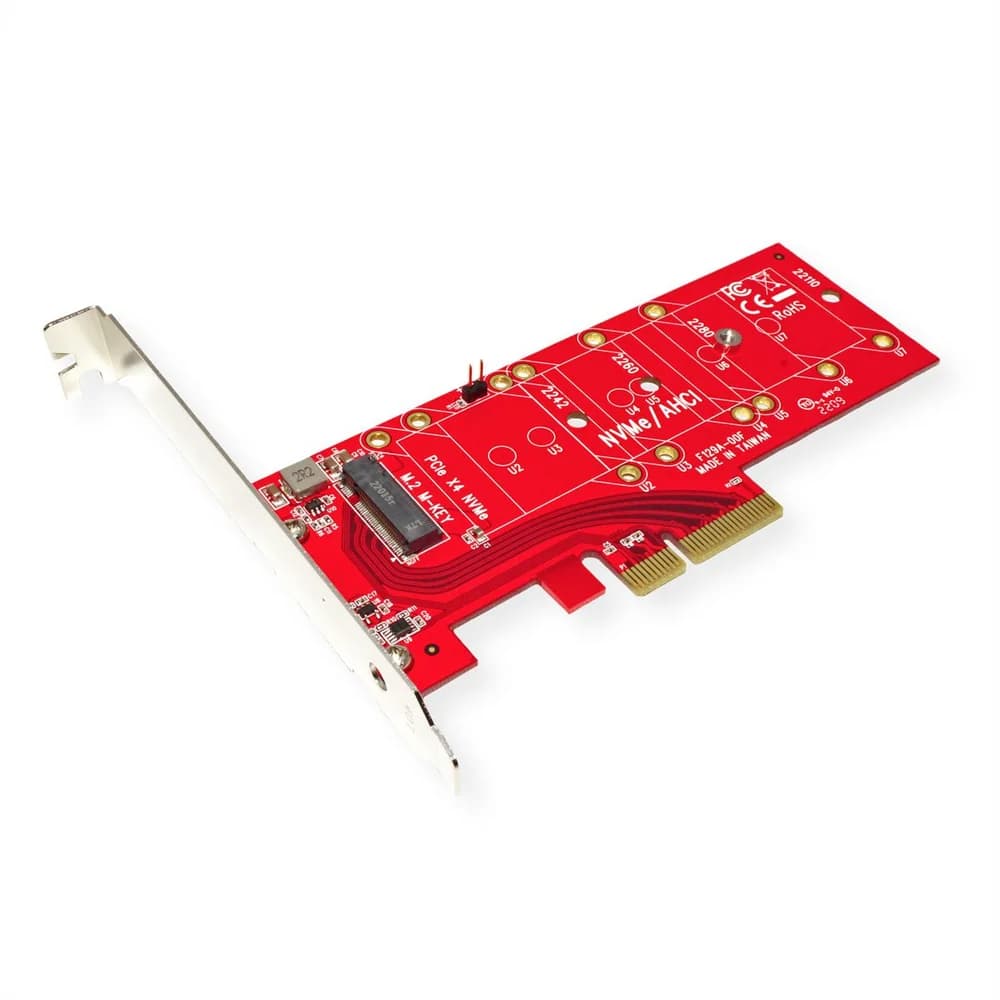

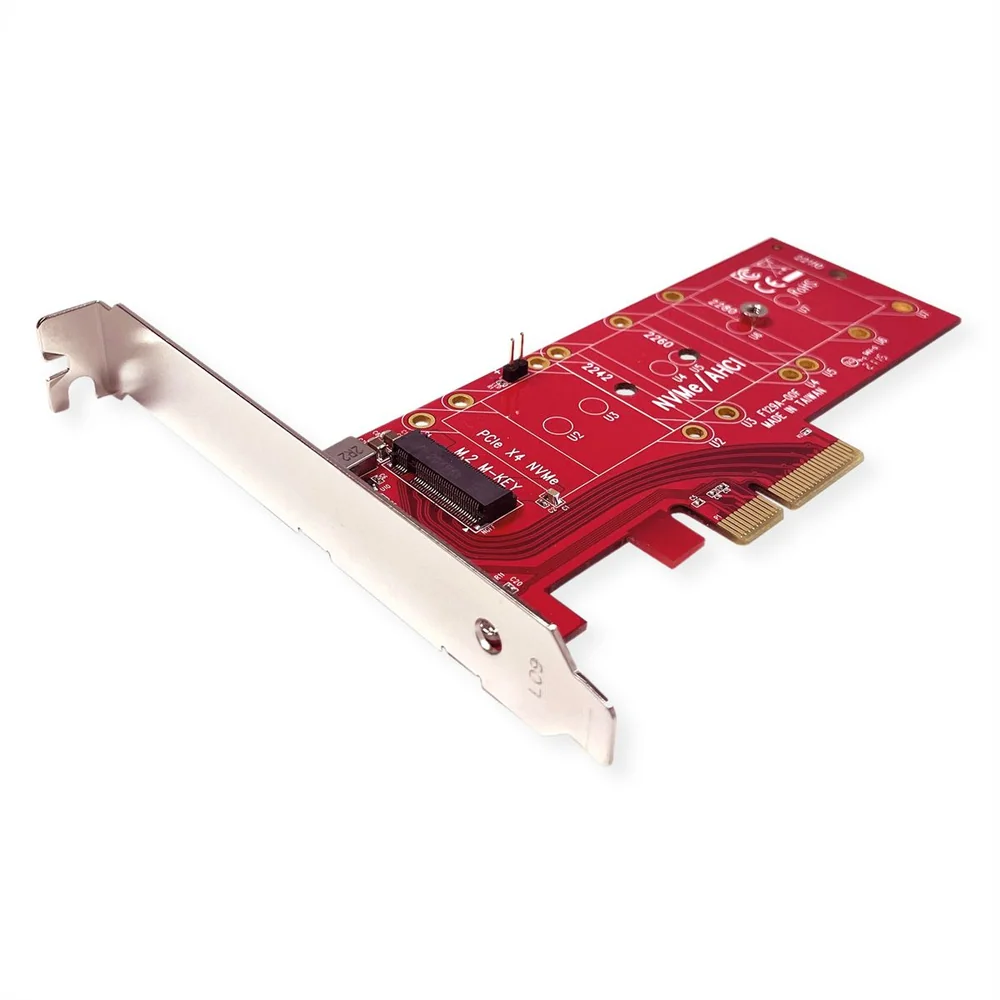

ROLINE PCIe 4.0 x4 3.3V5A Host Adapter for PCIe-NVMe M.2 110mm SSD

New NVMe standard (based on PCI Express 4.0 with 4 lanes) makes it possible to increase data speed even further compared to a normal SATA SSD. The result: more bandwidth and reduced latency compared to the SATA interface.
Optimal solutions for workstations.

• PCIe 4.0 x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot
• PCI Express 4.0 x4 Lane Host adapter
• Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm SSD
• M.2 NGFF type 22110-D5-M connector on board
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
• Supports PCIe 3.0, PCIe 2.0 motherboard
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side
• Compliant with PCI Express 4.0
• Pin header on board for drive LED connection
• Low Profile PCIe Form Factor
• Low Profile PCIe bracket on board and Regular size bracket included
• Transparent to the operating system and no board driver required
• Operating system: Windows 7/8/10 Vista, Server 2012 (64bit / 32bit), and Mac OS 10.x
• Supports M.2 PCIe SSD High Power 3.3V5A
