ROLINE LineSecure III 2000R - Line Interactive UPS, Rack Version — 1 of 12
ROLINE

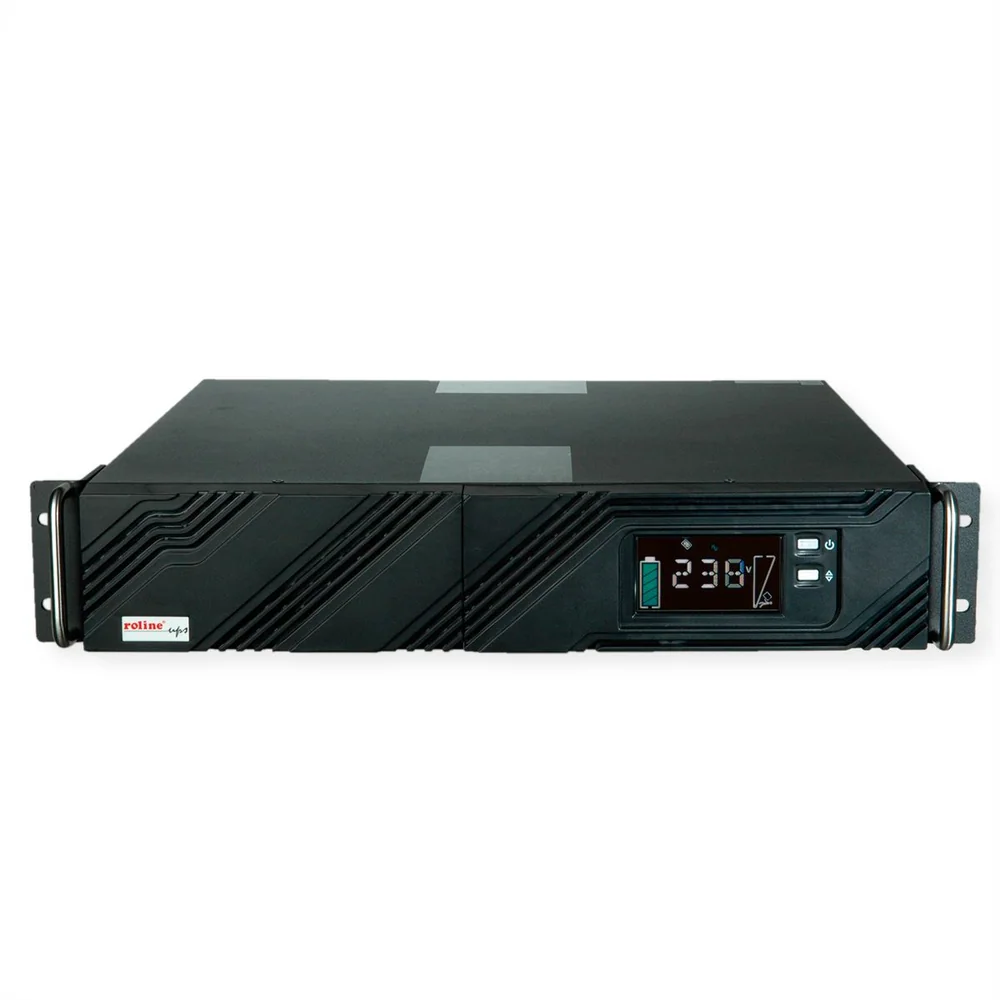

ROLINE LineSecure III 2000R - Line Interactive UPS, Rack Version

Item number
19.40.1128
Part number
19.40.1128
EAN
7630049628021
Brand
ROLINE
Weight
18900 g

The ROLINE LineSecure UPS series uses line-interactive technology and is used wherever reliable protection is required.

This product is not sold online — send an enquiry and we will reply with price and lead time.

Request a quote

Description

The ROLINE LineSecure UPS series uses line-interactive technology and is used wherever reliable protection is required.

The LineSecure III UPS series, with its intelligent design and pure sine wave output for connected applications, is the best choice for office, SOHO, and home applications. It provides high-quality pure sine wave output for connected critical devices. Additionally equipped with an AVR (Automatic Voltage Regulator), it stabilizes fluctuating voltages such as overvoltages and undervoltages as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and increases user-friendliness. The LS III series offers power protection, including overload, surge, and short-circuit protection. The USB port allows you to monitor UPS status, schedule UPS events, and receive instant notifications via a computer system or portable device. It also has a slot for an SNMP/web card.

In areas with significant voltage fluctuations, the UPS uses buck and boost regulation to compensate for differences between the input and target voltage. The battery management system monitors the UPS batteries and only charges them when necessary, extending battery life by up to 50%.

  • RS232 interface
  • USB interface
  • Operating display via LCD panel
  • Battery management
  • Automatic voltage regulation
  • Tel/modem protection
  • SNMP/WEB via optional LAN adapter
  • Sine wave output

NOTE: The 19" rail kit is not included and is available separately as an accessory.

Specifications

Product

Manufacturer
ROLINE
Product group
UPS
Product type
UPS Line Interactive, Rackmount
Colour
black
Scope of delivery
UPS, Software, Cable Set, (19" Rail Kit not included > see accessories!)
Classification (IEC 62040-3)
VI-SS-333
UPS technology
Line Interactive
Power class
2000 ... 3000 VA
Output (VA/W)
2000 / 1600
Efficiency
95 %
Backup time
3 min
Backup time full/half-load
3 / 6 min
Dimensions (HxWxD)
84 x 483 x 430
Mounting form
19" Rackmount
Voltage (input)
230V +- 10%
Voltage (output)
230V
Frequency
50Hz
Connector type (input)
Connector IEC320 C14
Outputs
8
Connector type (output)
8 x Cold Connector IEC320 C13
Phase in/output
230V/230V / 50Hz
Over current protection
EMI,- RFI-Filter
Max. quantity of delay expansion units
0
Delay expansion unit
--
Slots for adapter card
1
Slot for adapter card
1
Acoustic level
40dBA
Interface
USB, RS232
RS-232 Interface
yes
USB 2.0 Interface
yes
Hot swap batteries
no
Bypass
no
Additional over current protector
Telephone/Fax
Activity
Display
Activity LED
--
Activity Display
LCD
incl.Management Software
Windows
Internal cooling
Active, fan
Ambient temperature
0-40°C
Mains connection
Cold appliance connection
Battery category
Industrial battery
Number of batteries
2 pieces
Battery Voltage
12 V
Battery Capacity
9 Ah
Battery type
Pack
Battery
built-in
Battery technology
Lead-acid
Operating temperature min.
0 °C
Operating temperature max.
40 °C
Height
84 mm
Width
428 mm
Depth
431 mm
Weight
18.9 kg

Packaging

Height of packaging (single piece)
200 mm
Width of packaging (single piece)
580 mm
Depth of packaging (single piece)
580 mm
Package weight (single piece)
22.6 kg
