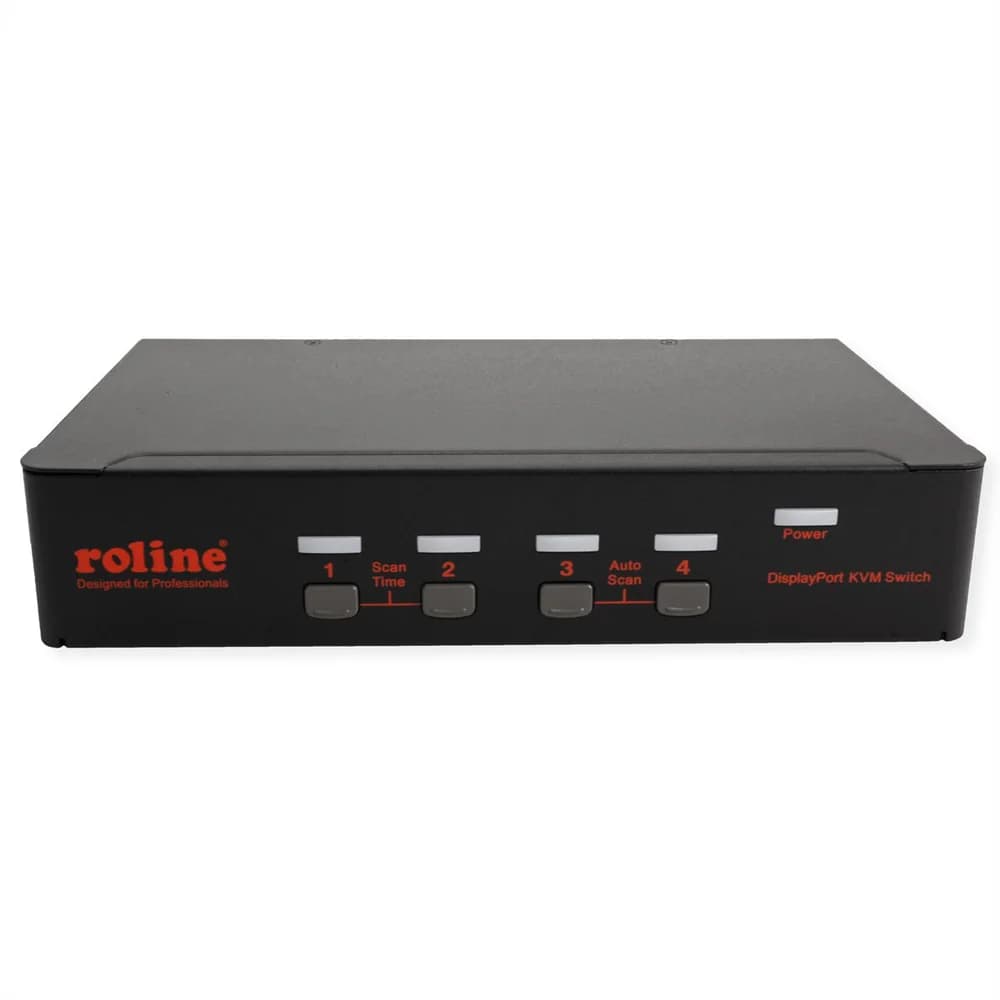

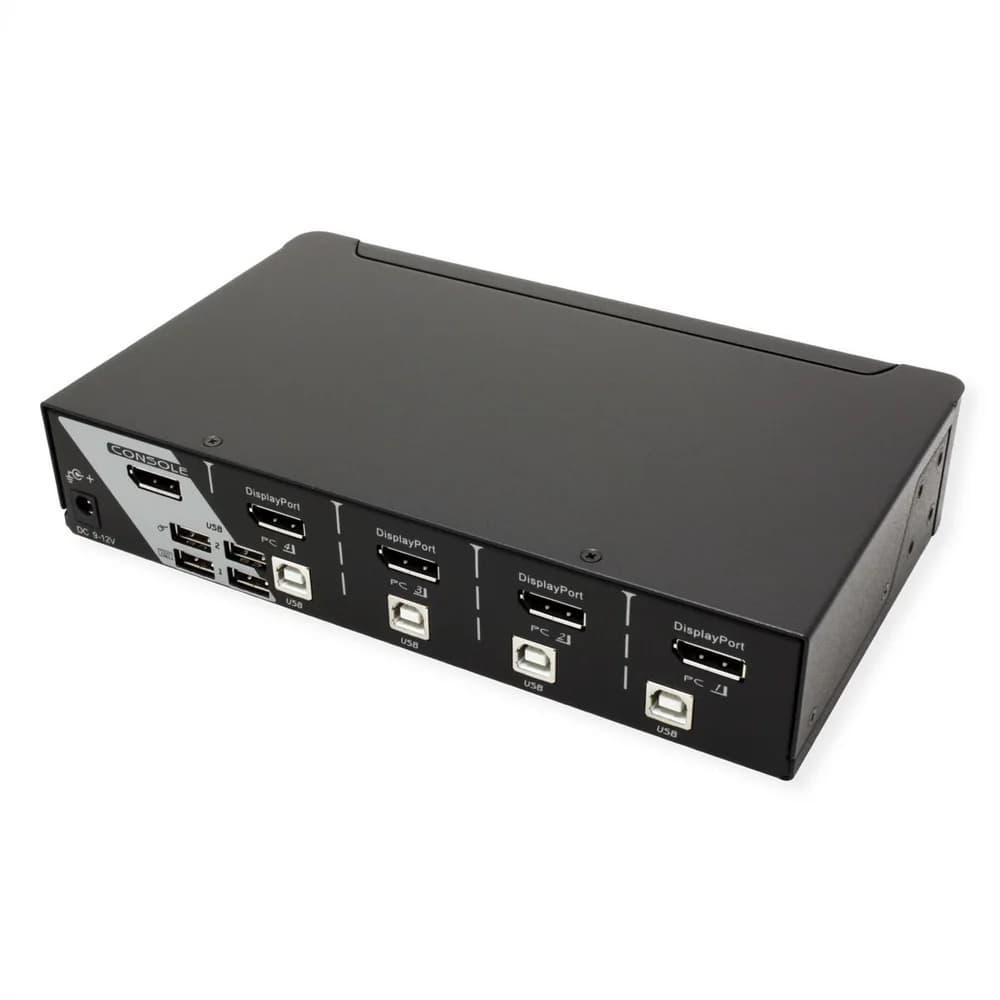

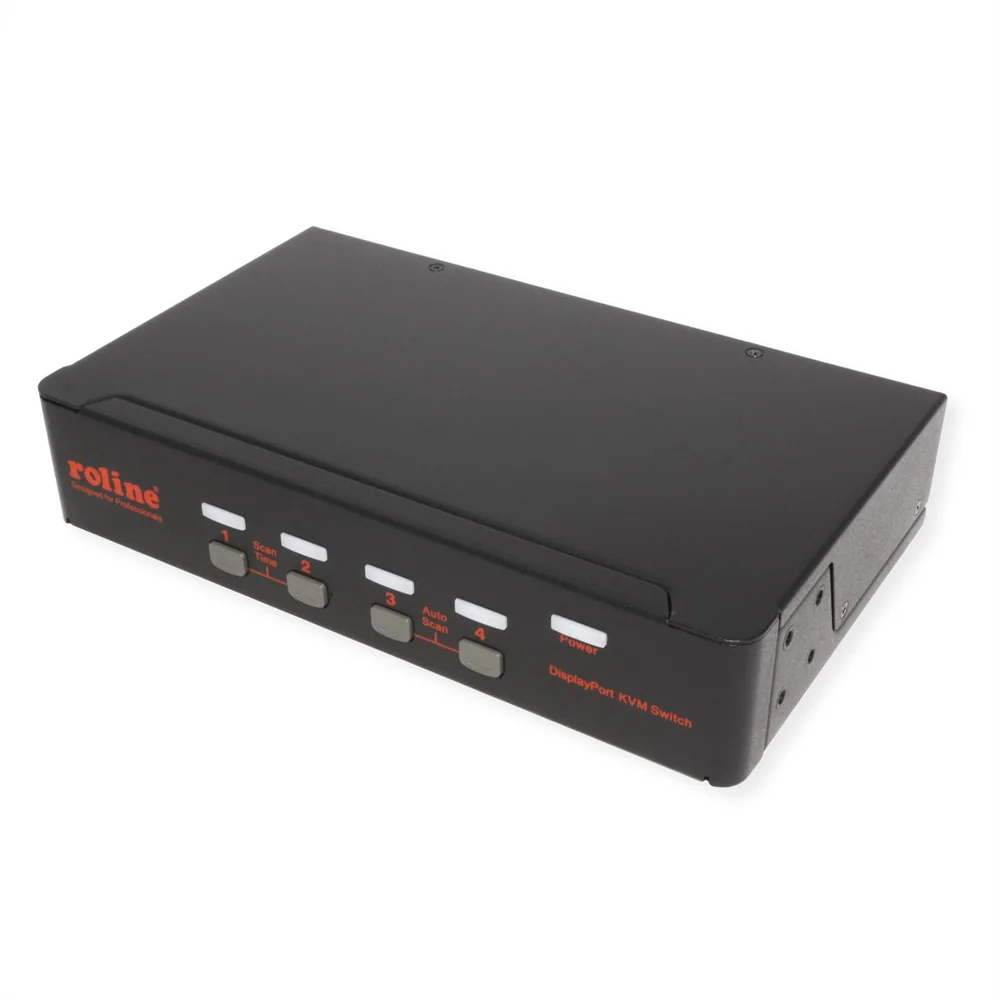

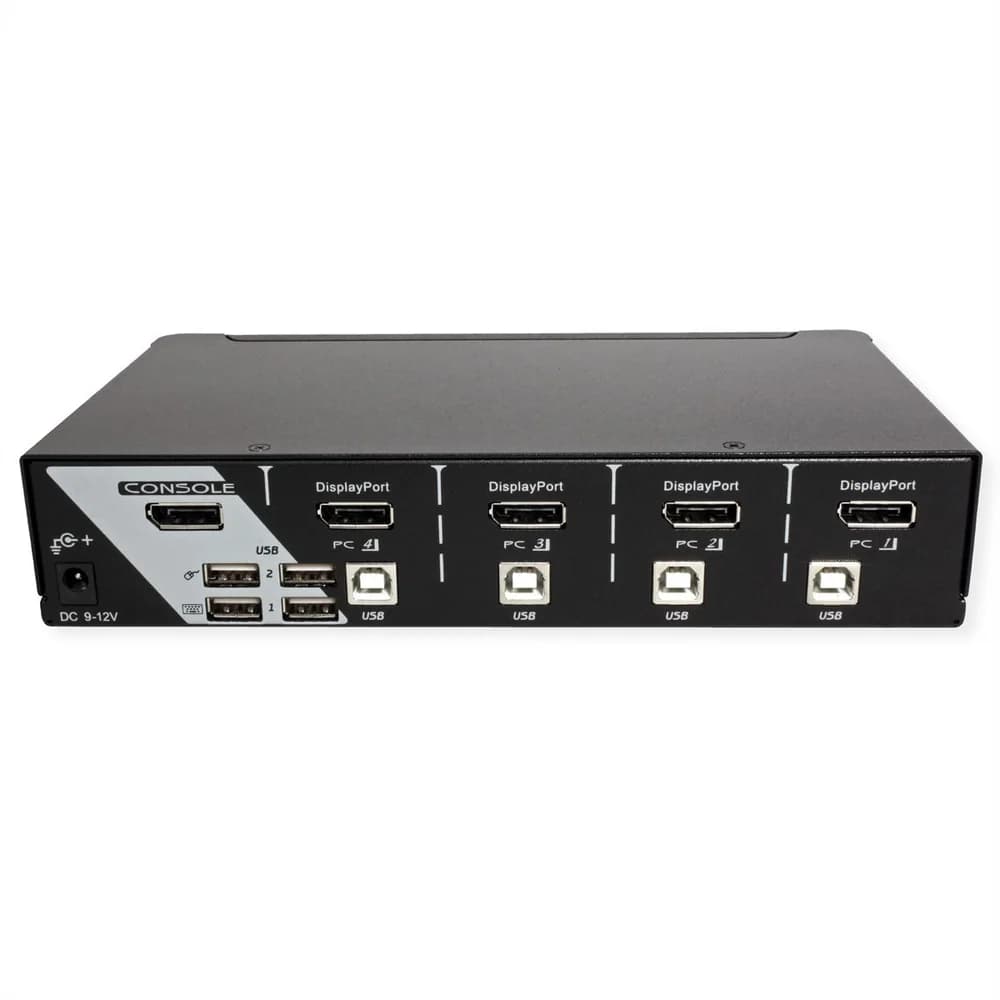

ROLINE KVM Switch, 1 User - 4 PCs, DisplayPort, with USB Hub
- Item number
- 14.01.3329-1
- Part number
- 14.01.3329
- EAN
- 7611990997879
- Brand
- ROLINE
- Weight
- 1176.4 g
Control four computers from a single USB console (DisplayPort monitor, USB mouse and keyboard) Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices Easy computer selection via front panel…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

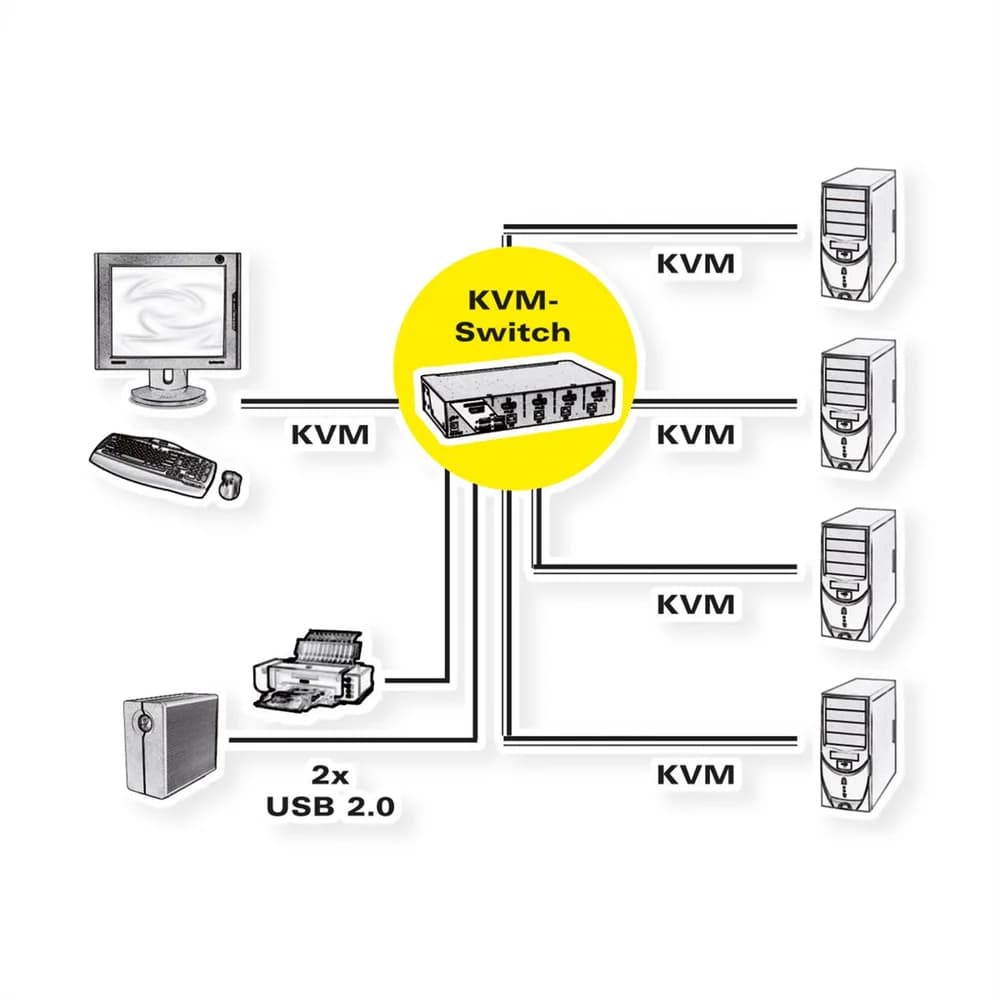

- Control four computers from a single USB console (DisplayPort monitor, USB mouse and keyboard)
- Integrated 2-port USB 2.0 hub allows two resp. four computers to share a USB devices
- Easy computer selection via front panel push buttons or hot-key function
- Auto scan function with selectable scan time interval
- Supports 7.1 channel high definition audio
- Max. resolution (nominal): 2560 x 1600
- No software required
- Supports Windows
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, DisplayPort
- Colour
- black
- Scope of delivery
- Switch, power supply, manual
- Interface
- DP
- Quantity of PCs
- 4
- Supported PC-Systems
- USB 2.0
- PC: monitor connection
- DisplayPort
- PC: mouse/keyboard connection
- USB
- PC: connection on moulded cables
- no
- Quantity of digital consoles
- 1
- Analogue Console: Monitor connection
- 1x DisplayPort F
- Analogue Console: Mouse/Keyboard connection
- 2x USB 2.0
- Integrated console
- no
- Switching over Scan Run
- yes
- Print button on device
- yes
- Switching over Hot Keys
- Keyboard and mouse
- Switching over OSD
- yes
- Audio switching separately
- yes
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 2
- USB Hub switching separately
- yes
- Keyboard/mouse emulation
- yes
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Power supply unit required
- yes
- Technical particularity
- multilingual OSD
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 44 mm
- Width
- 220 mm
- Depth
- 130 mm
- Weight
- 1176.4 g
Packaging
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 220 mm
- Depth of packaging (single piece)
- 420 mm
- Package weight (single piece)
- 1.705 kg
