ROLINE KVM Extender over Fiber Optic, HDMI 4K, USB, 20 km

Item number: 14.01.3363-1
Part number: 14.01.3363
EAN: 7630049671973
Brand: ROLINE
Weight: 1256 g

The KVM extension transmits HD audio and video signals as well as USB signals up to 20 km via a bidirectional fiber optic single-fiber cable. This allows a computer system to be controlled up to 20 km away via the…

This product is not sold online — send an enquiry and we will reply with price and lead time.

Compare

Description

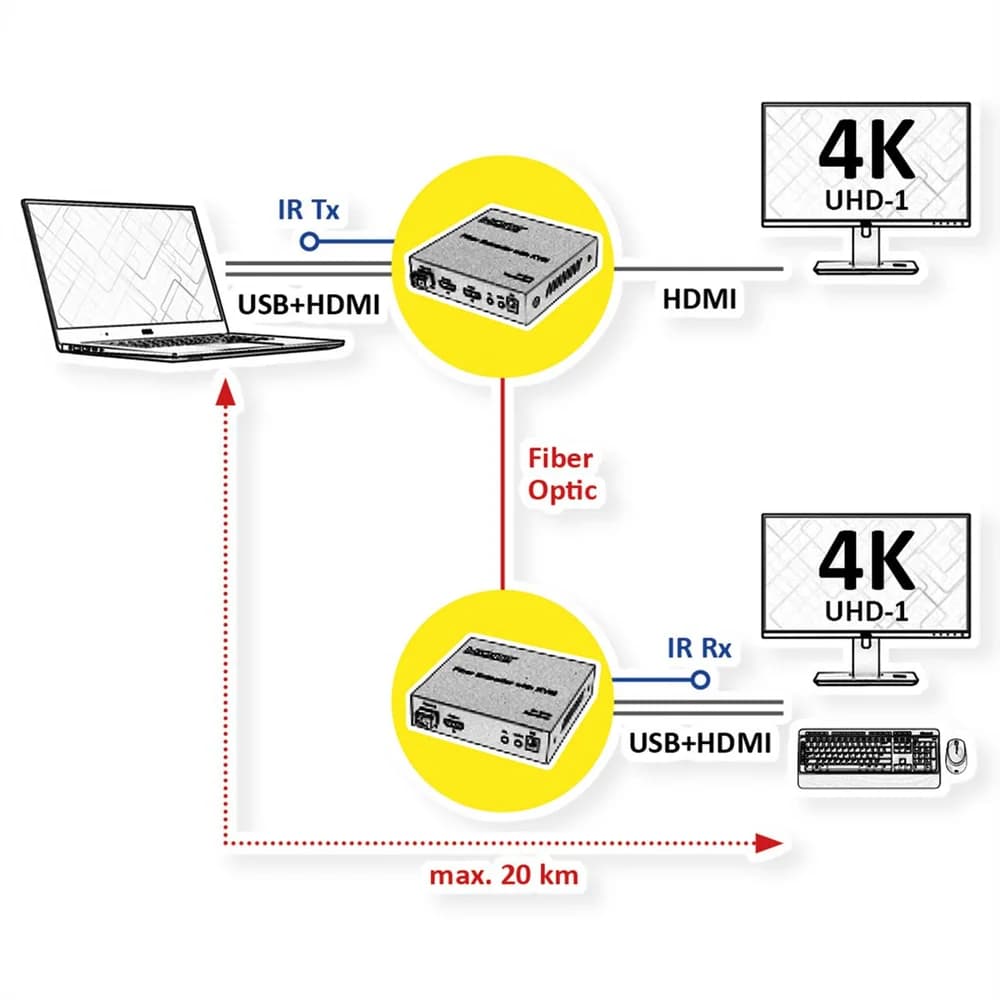

The KVM extension transmits HD audio and video signals as well as USB signals up to 20 km via a bidirectional fiber optic single-fiber cable. This allows a computer system to be controlled up to 20 km away via the remote console (HDMI 4K monitor, USB keyboard and USB mouse).

Areas of application: Security control, multimedia teaching, HDMI signal extension
Max. Resolution: 3840x2160 @60Hz
Use of bidirectional fiber optic simplex cables for low costs with stable signal transmission

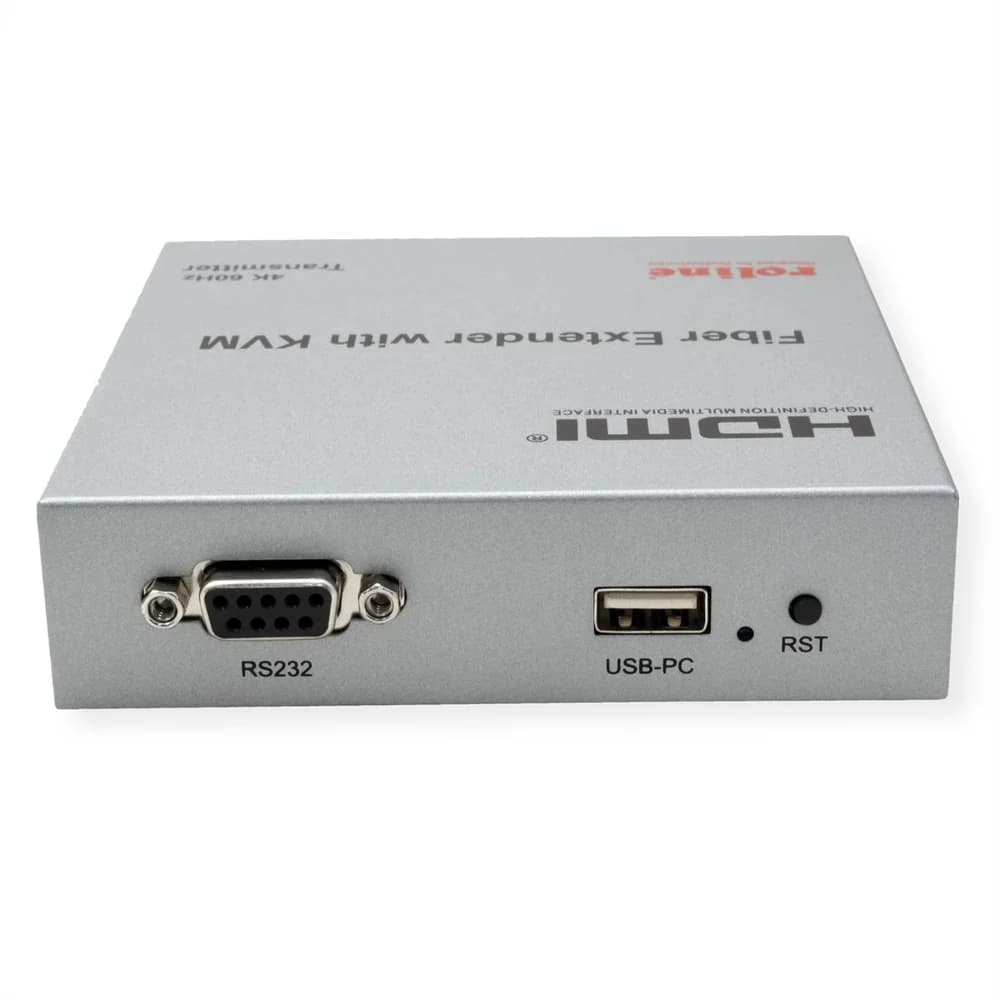

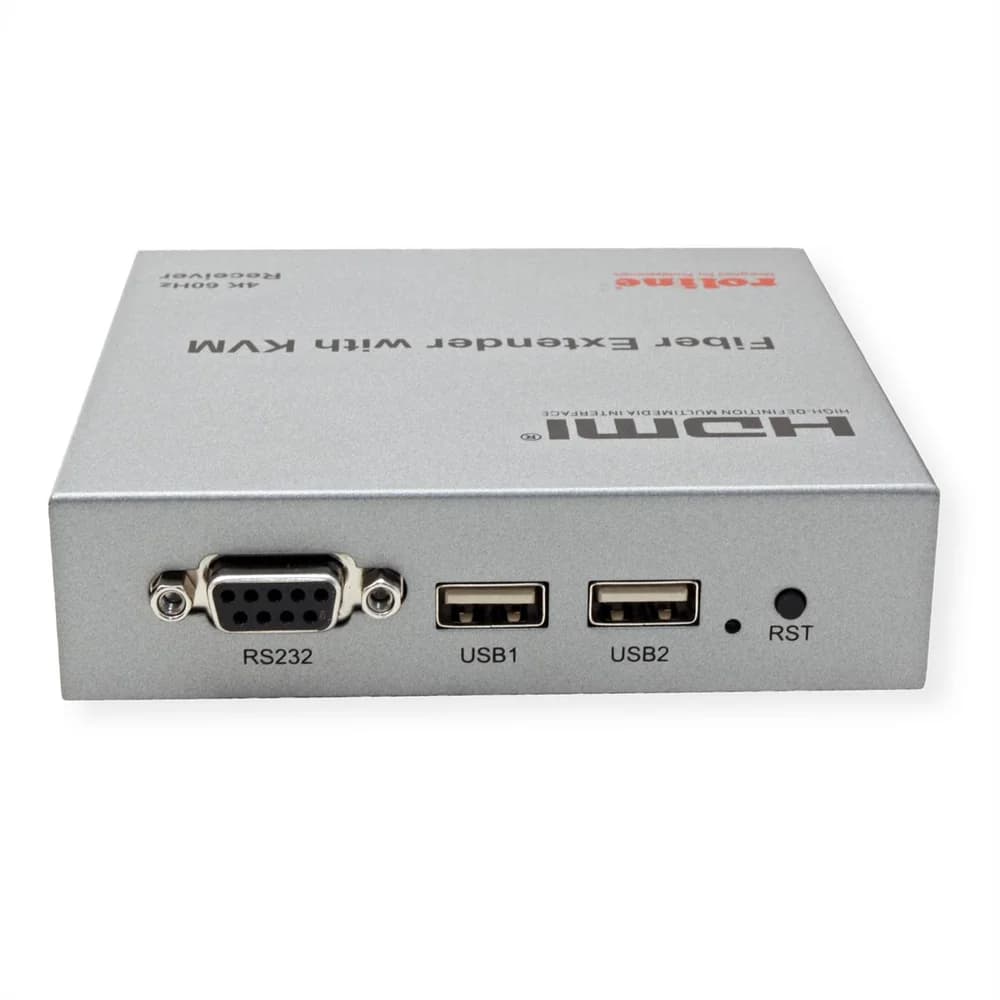

Supports audio connection 3.5 mm (L-PCM), IR and RS232
Solid metal housing

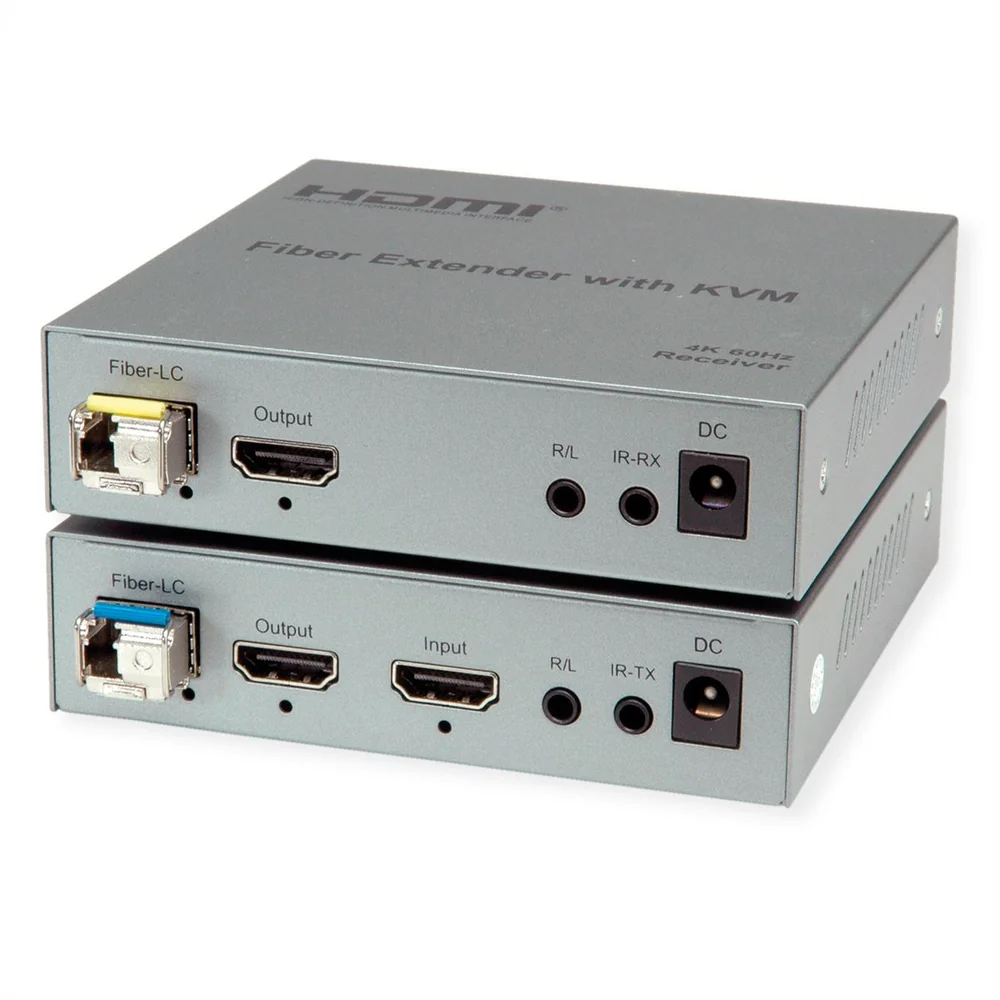

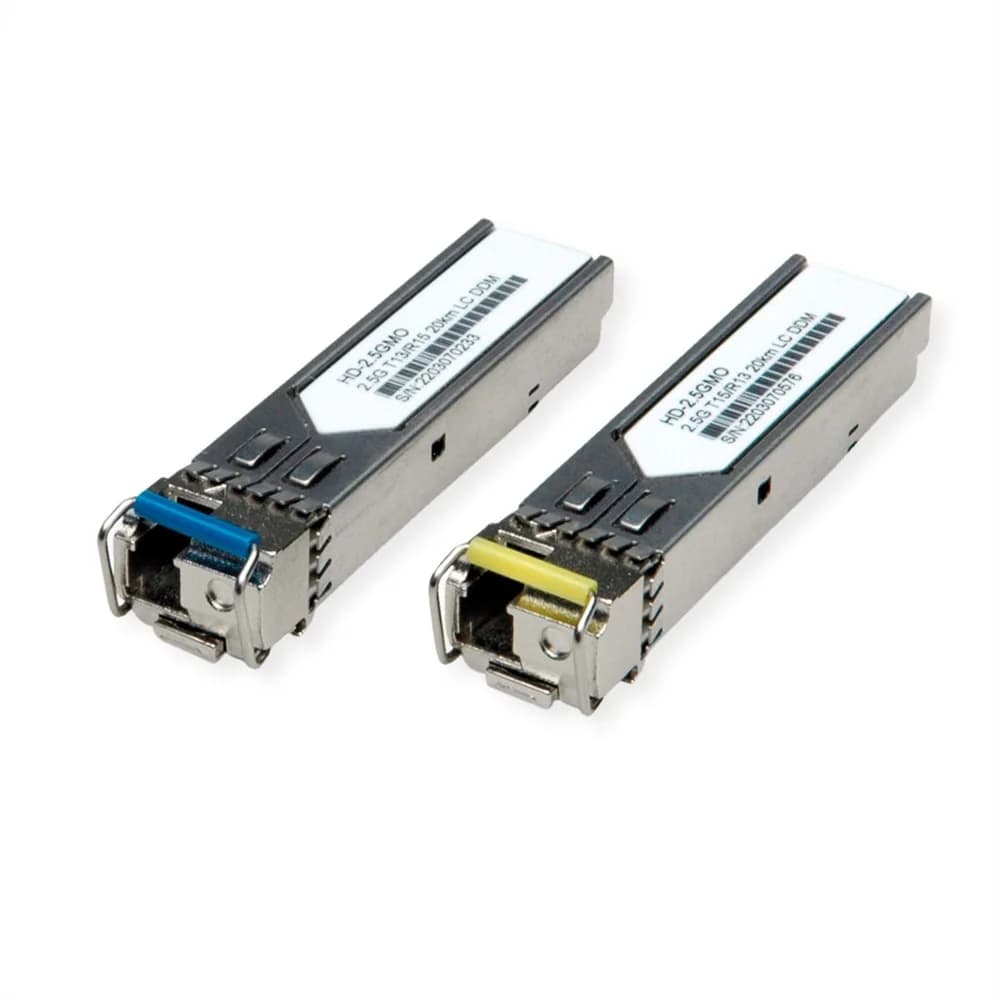

SFP modules (Single Mode Fiber) included (transmitter/receiver)

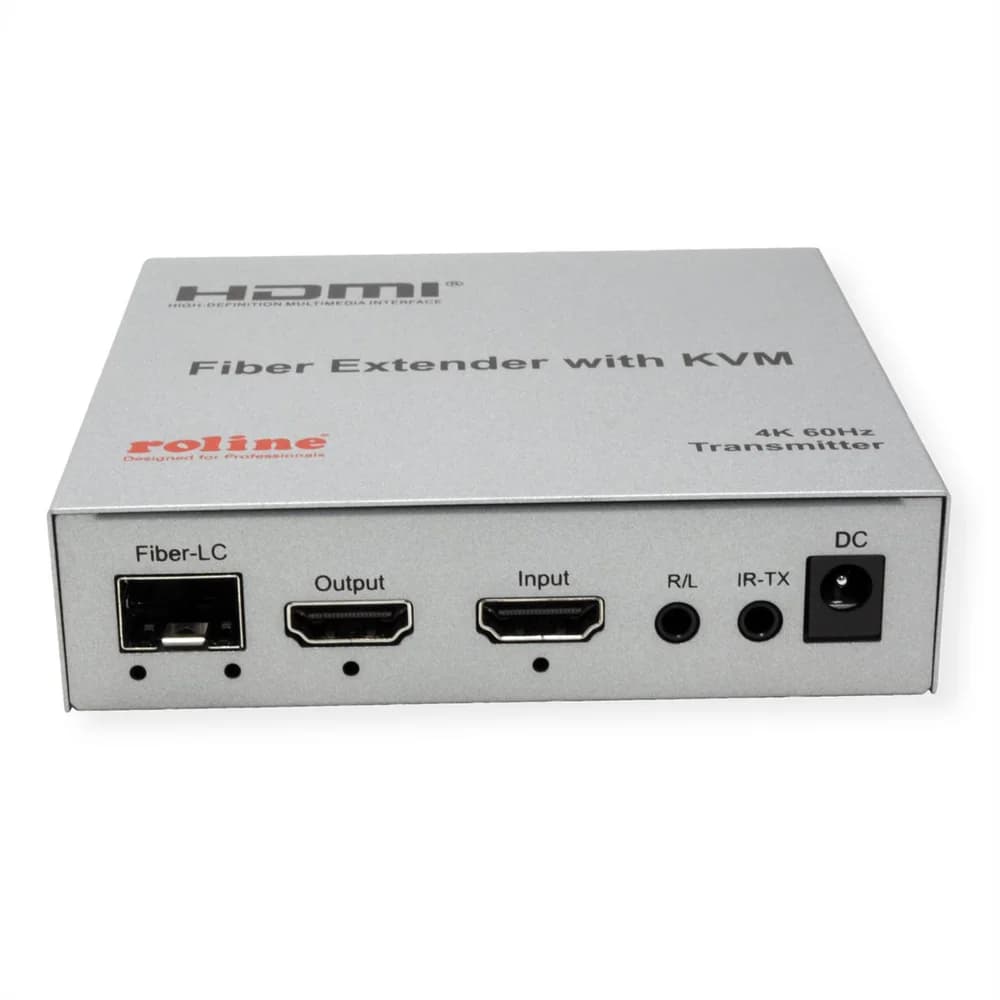

An additional HDMI monitor can be connected to the transmitter

Specifications

Product

Manufacturer: ROLINE
Product group: KVM (IP) extensions
Product type: KVM-Extender, HDMI
Colour: silver
Length: 20 km

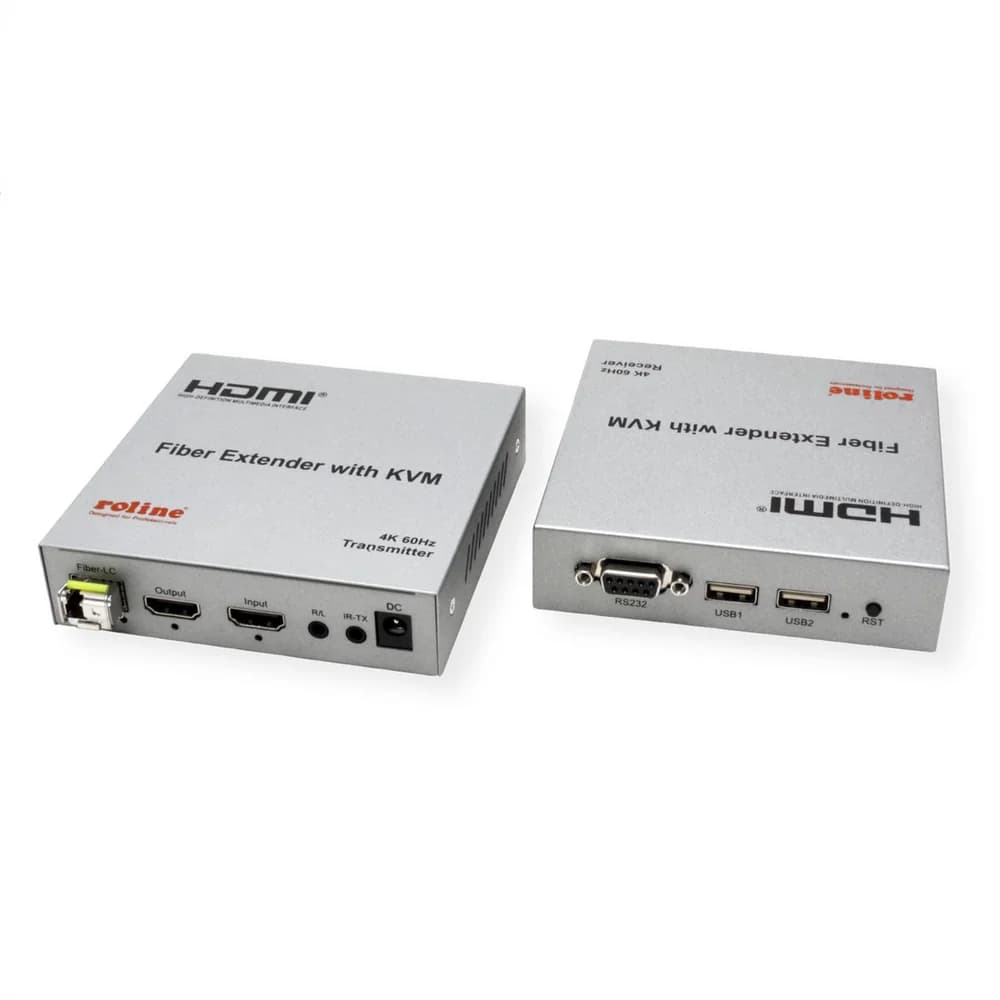

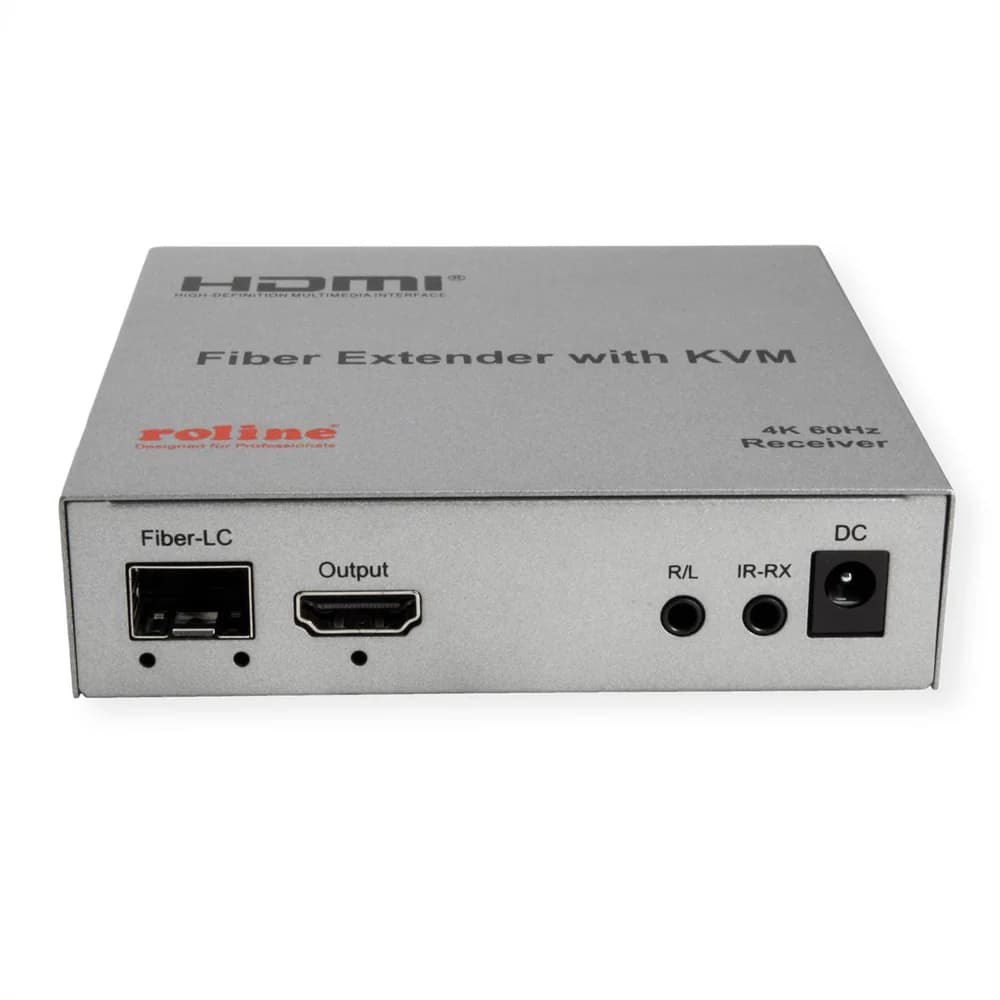

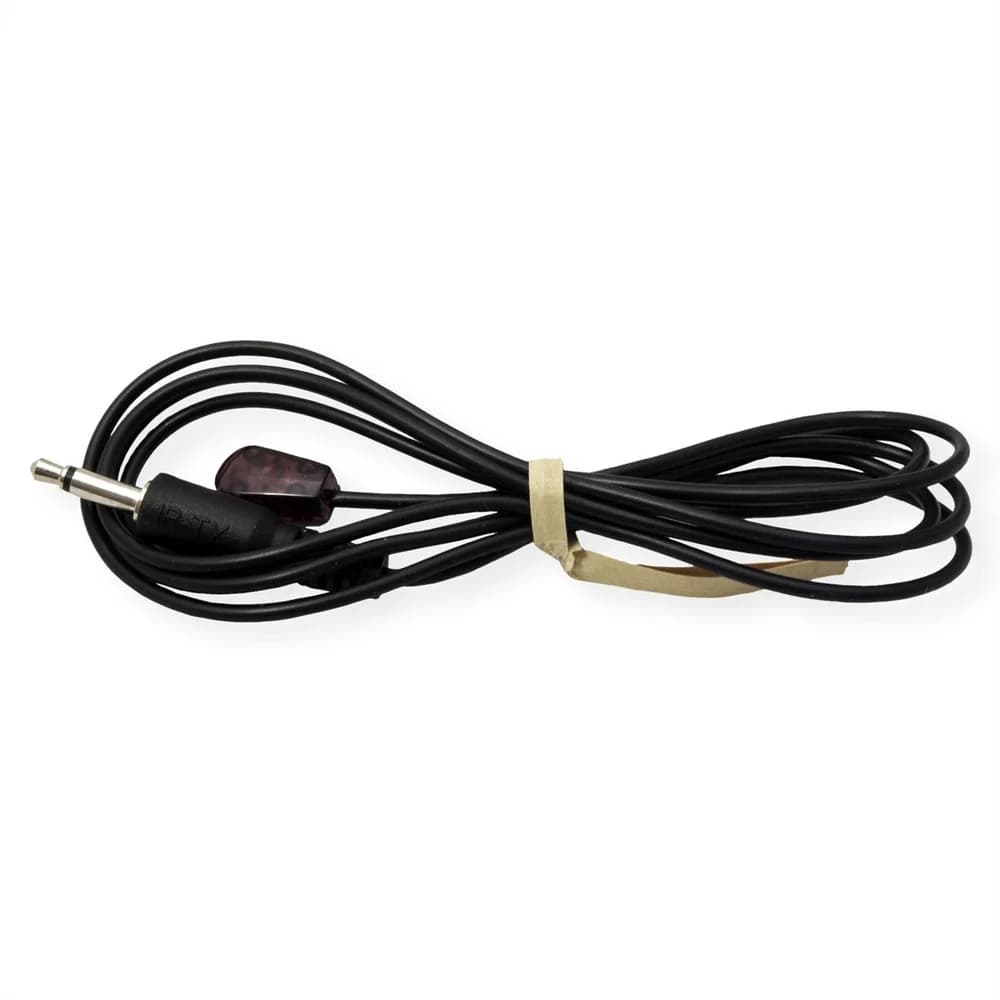

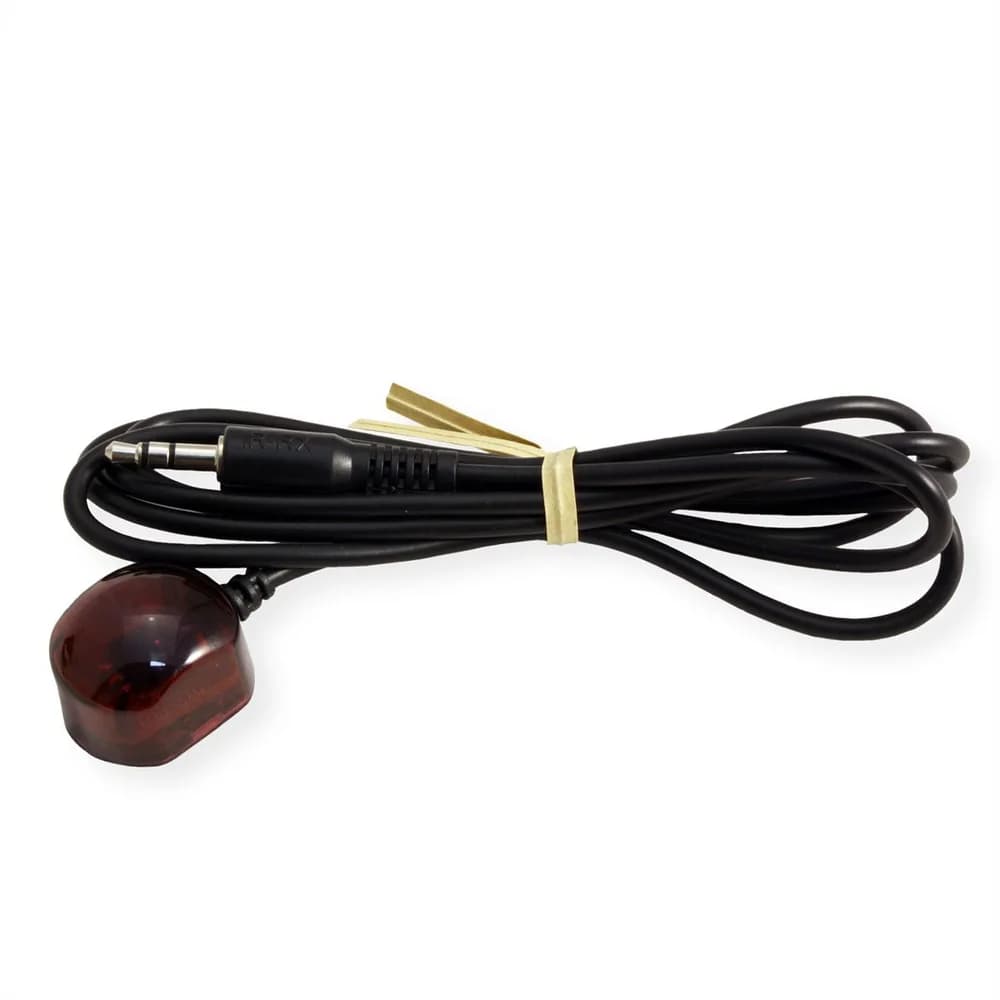

Scope of delivery: Transmitter, receiver, 2x SFP module, 2x power supply unit (12 V, 2 A), IR transmitter/receiver pair, operating instructions
Interface: HDMI
Inputs: 1
Outputs: 1
Max. distance: 20 km
Supported PC-Systems: USB
Max. resolution (nominal): 3840 x 2160 @60Hz
Colour (Design profile): silver
Material (casing): Metal
Power supply unit required: yes
Operating temperature min.: -10 °C
Operating temperature max.: 55 °C
Height: 17 mm
Width: 106 mm
Depth: 106 mm
Weight: 1256 g

Packaging

Height of packaging (single piece): 80 mm
Width of packaging (single piece): 140 mm
Depth of packaging (single piece): 250 mm
Package weight (single piece): 1 kg
