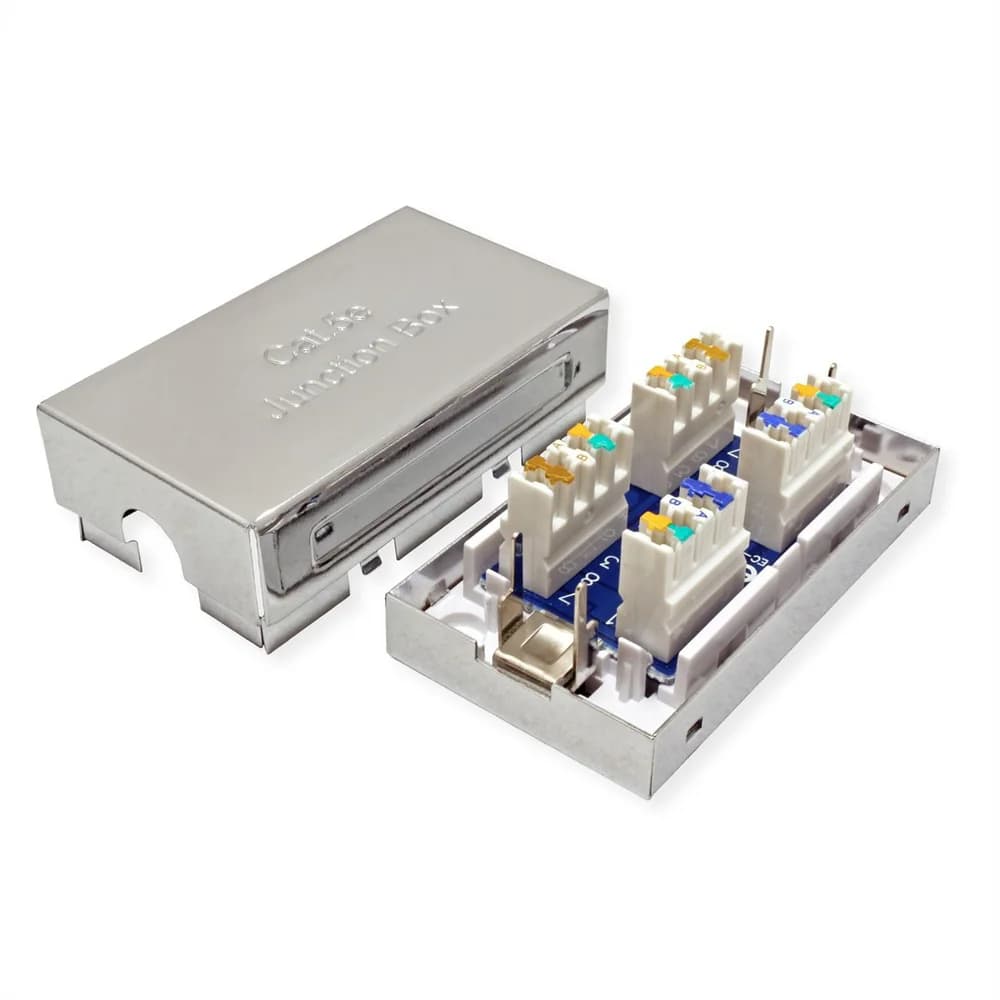

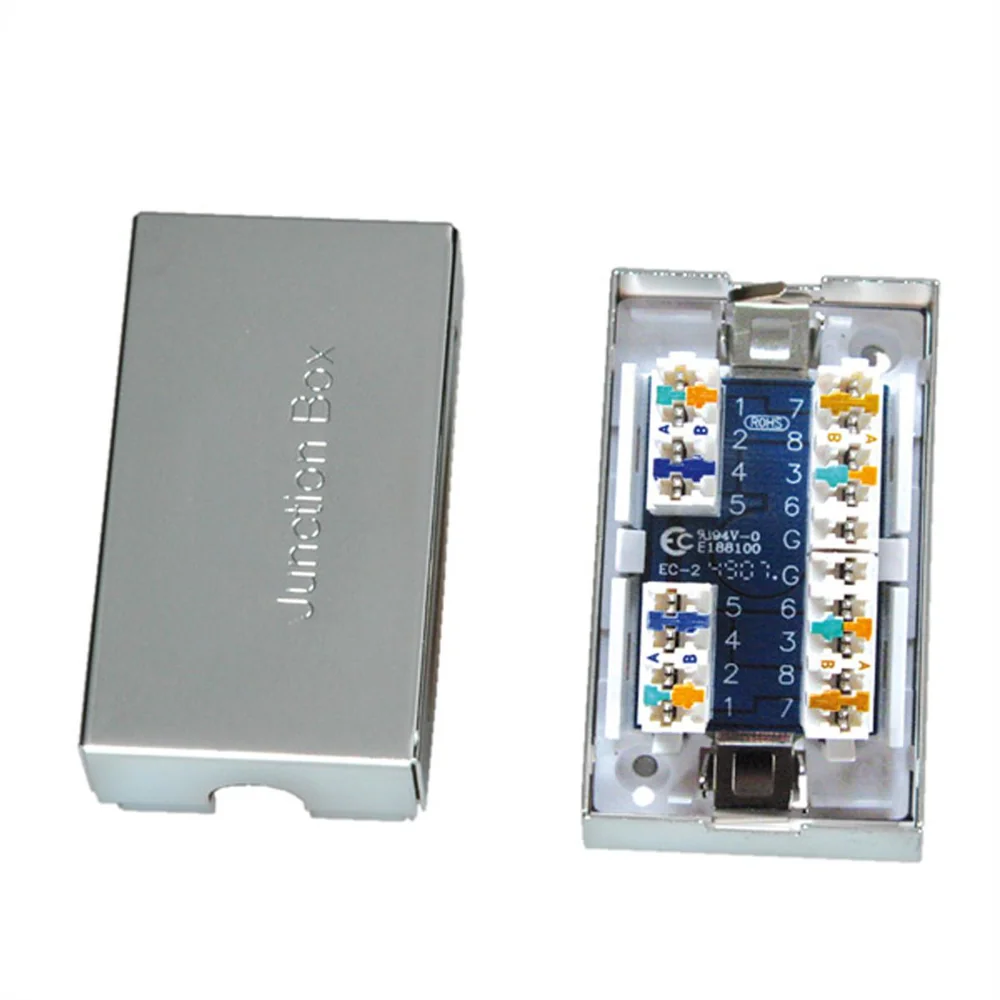

ROLINE Junction Box Cat.5e (Class D), STP
- Item number
- 21.17.3035-100
- Part number
- 21.17.3035
- EAN
- 7611990929962
- Brand
- ROLINE
- Weight
- 61.3 g
The ROLINE Junction box is used to repair shielded Cat. 5e cables With this box all 4 or 8 wired installation cables with AWG24 and with a cover from 6.2mm can be installed Equipped with the modern LSA connection…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- The ROLINE Junction box is used to repair shielded Cat. 5e cables
- With this box all 4 or 8 wired installation cables with AWG24 and with a cover from 6.2mm can be installed

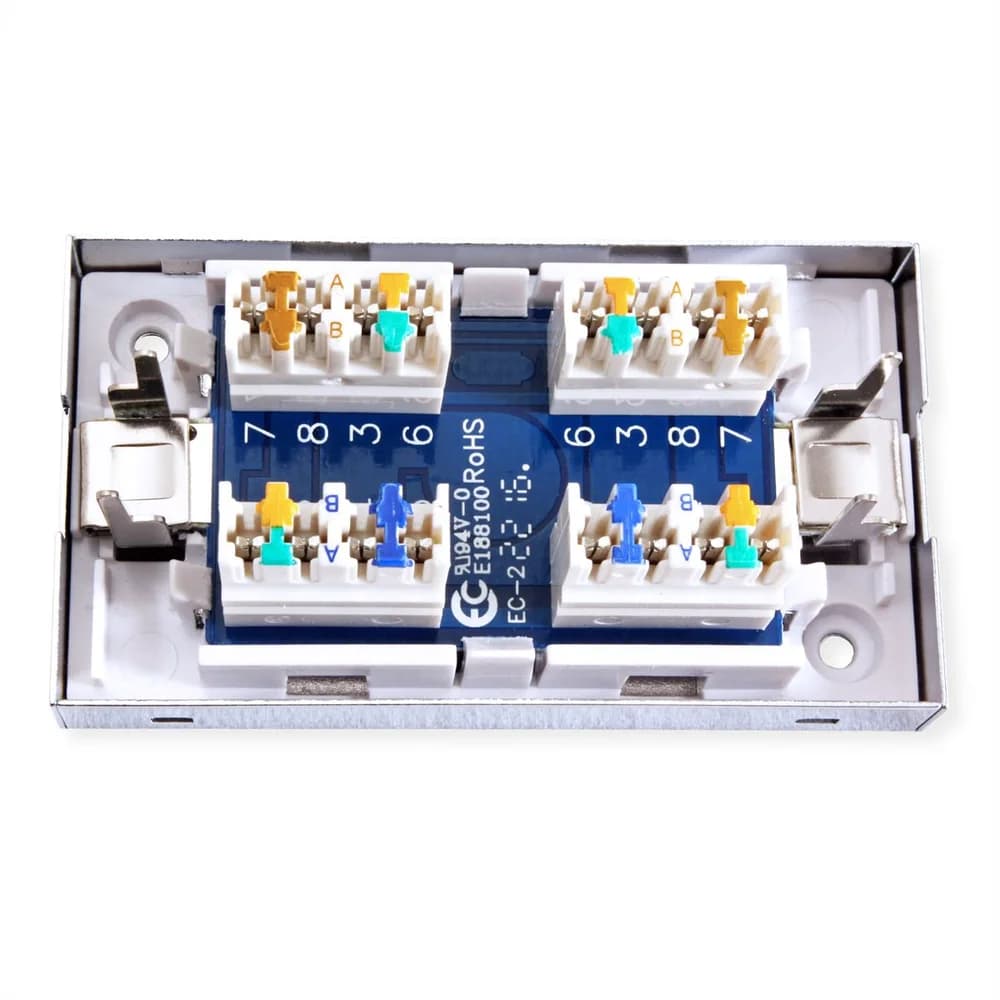

- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA or 568B can be easily installed
- With the use of the STP type junction box, it's safe against electrical and magnetical interferences
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Network junction box
- Colour
- white
- Shield type
- Screened
- Transfer quality
- Cat5e / Class D
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568B
- Shield contacts
- yes
- separate strain relief
- no
- Connection direction
- Straight
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 80 °C
- Height
- 23.95 mm
- Width
- 34.9 mm
- Depth
- 62.8 mm
- Weight
- 61.3 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 50 mm
- Depth of packaging (single piece)
- 80 mm
- Package weight (single piece)
- 0.05 kg
