ROLINE Internal SATA 3.0 Gbit/s Cable, angled, 0.5 m
- Item number
- 11.03.1556-100
- Part number
- 11.03.1556
- EAN
- 7611990960507
- Brand
- ROLINE
- Weight
- 16.4 g
The narrow high quality cable design simplifies cable, routing and installation and improves the internal air flow. Connect your high-speed Serial ATA device (e. g. HDD) to a Serial ATA Controller Support data transfer…
Description
The narrow high quality cable design simplifies cable, routing and installation and improves the internal air flow.
- Connect your high-speed Serial ATA device (e. g. HDD) to a Serial ATA Controller
- Support data transfer rates of up to 3.0 Gbit/s (SATA II)
- Compatible with SATA 1.5 Gbit/s (SATA I)
- 4-pin cable with ground wires
- Connectors: 2x internal 7-pin SATA

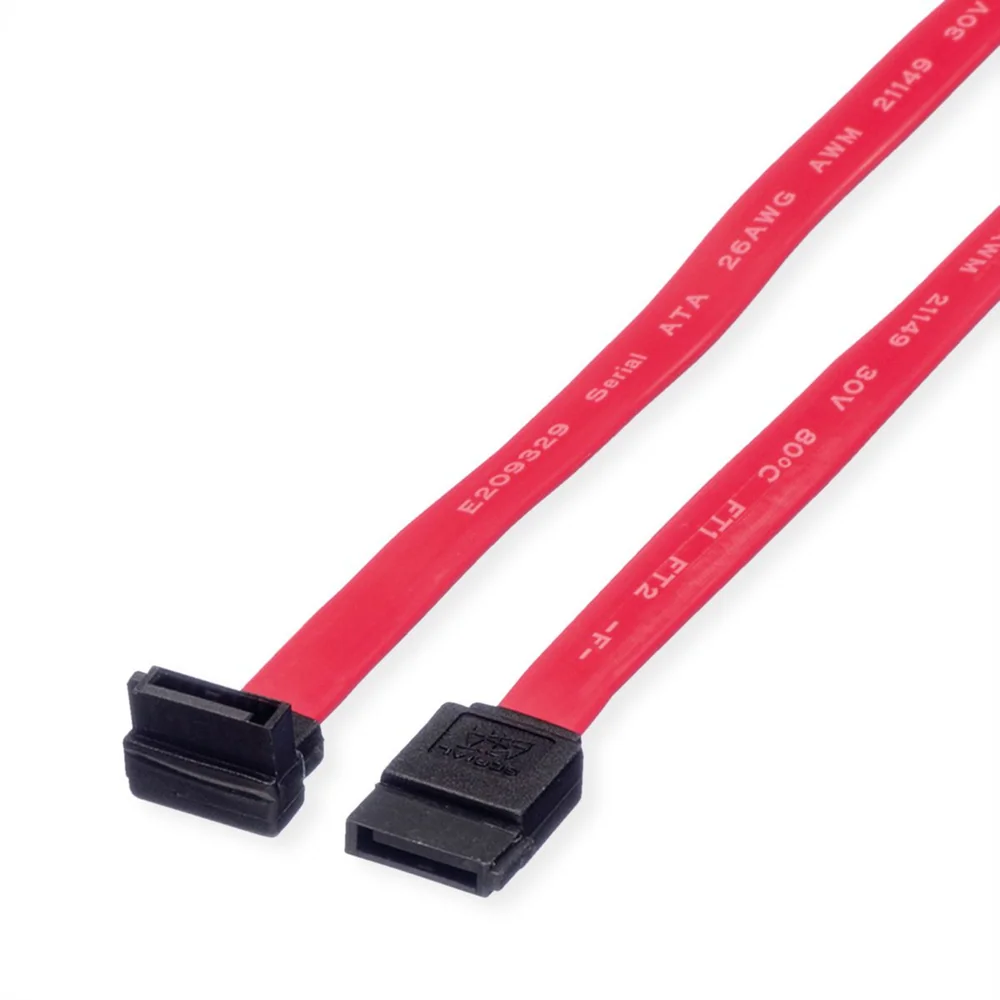

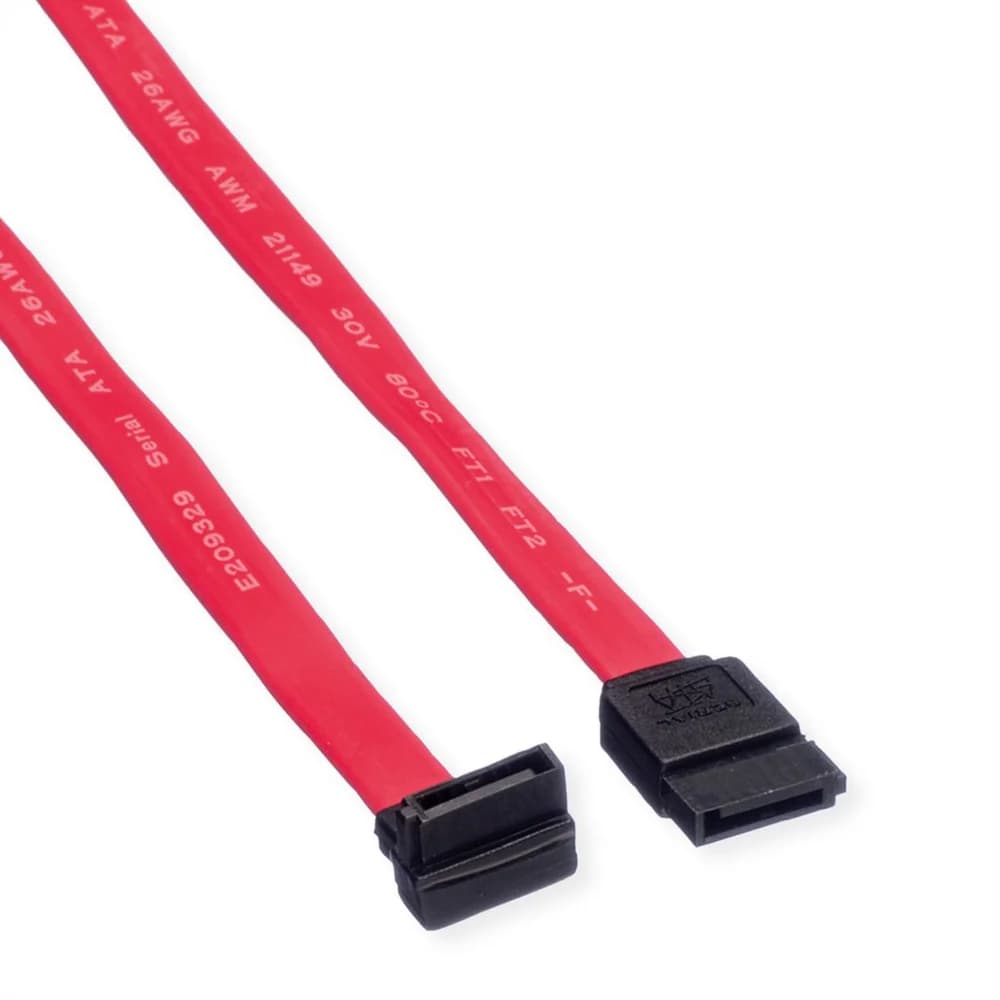

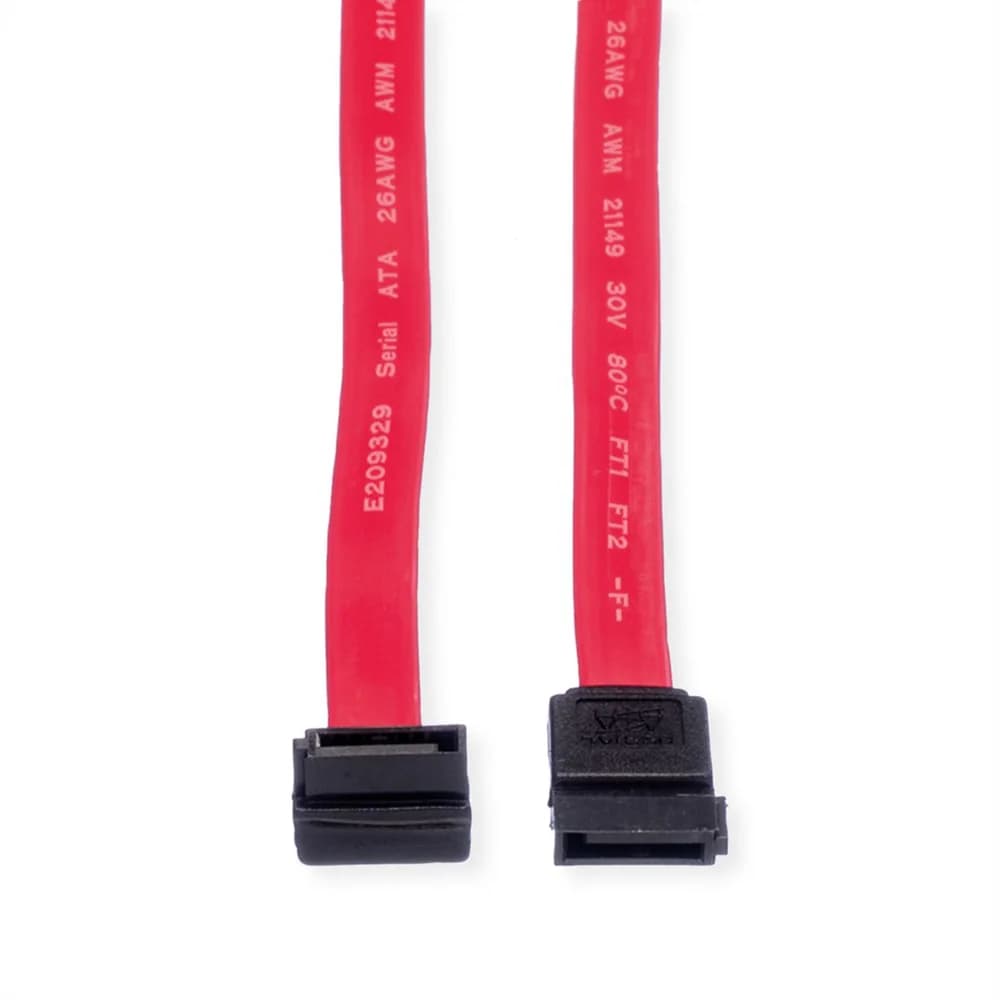

- Cable with angled to one side SATA connector, e. g. for the use inside narrow housings or mini PCs
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Cable
- Product type
- SATA Cables
- Colour
- red
- Length
- 0.5 m
- Connection ports
- SATA 7-pin (Data) Male / SATA 7-pin (Data) Male
- side 1 connector
- SATA Male 7-pin, angled
- side 2 connector
- SATA Male 7-pin
- Side 1 Connector Type
- SATA 7-pin (Data)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- SATA 7-pin (Data)
- Side 2 Connector Gender
- Male
- Ribbon cable
- yes
- Area of application
- Internal
- Cable shielding
- Not screened
- Cable composition
- SATA
- Weight
- 16.4 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 80 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.027 kg
