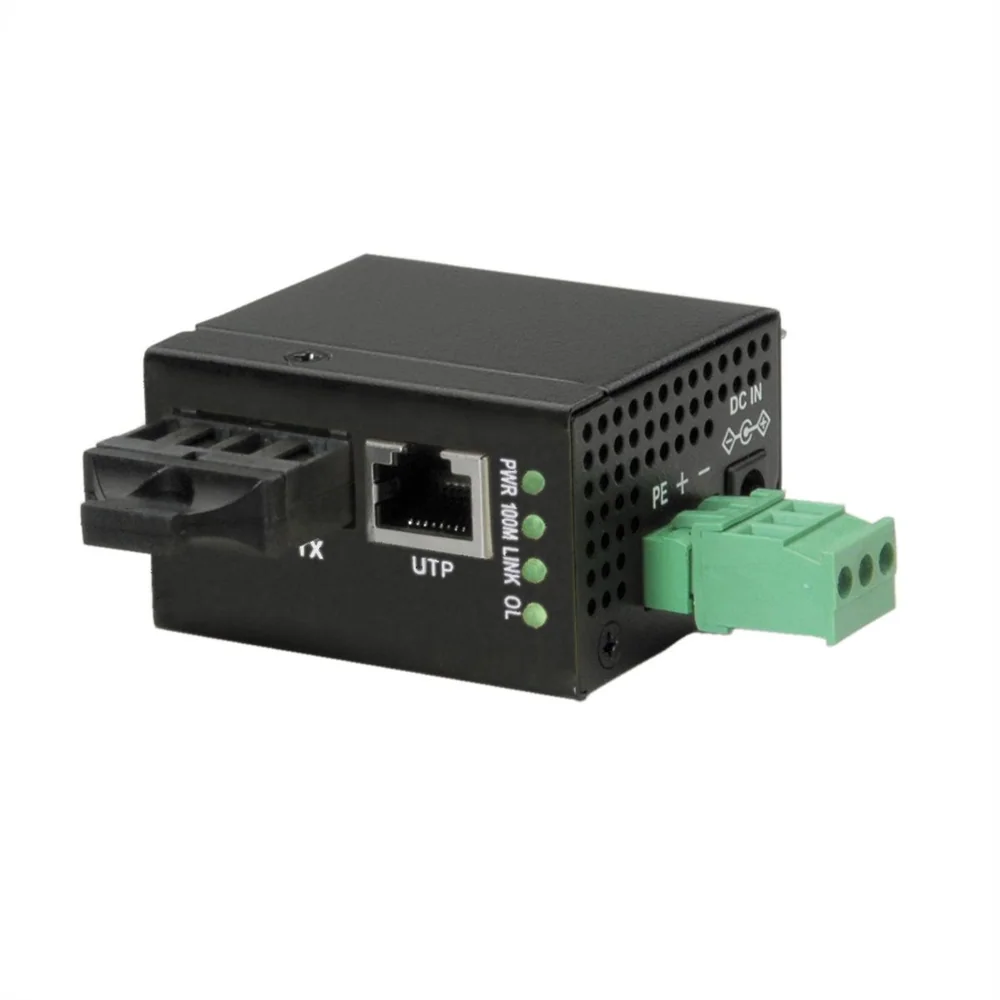

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)
- Item number
- 21.13.1147-1
- Part number
- 21.13.1147
- EAN
- 7611990197026
- Brand
- ROLINE
- Weight
- 151.2 g
Network converter for use in industrial environments
Description
Network converter for use in industrial environments
- Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Supports auto-negotiation 10/100Mbps or forced mode on the copper port
- Auto-MDI/MDIX on the copper port
- Provides Link Fault Pass Through function
- Transparent conversion to 802.1Q VLAN tagged packets
- Provides Far End Fault function on FX (fiber) port
- The optimal latency for 100Mbit/s to 100Mbit/s conversion
- Low power consumption
- Power: Input: +4.5 - 50 VDC, Consumption: 1.6 W@ 7.5 V, 1.6 W@ 12 V, 2 W@ 48 V
- Supports DIN rail mounting
- Compact design for easy installation in enclosure and chassis
- Supports wide operating temperature range
- Industrial-rated emission and immunity performance
- DC Input via terminal block or DC power jack
- Dimensions: 34 x 49 x 56 mm (WxDxH)
- Operating Temperature: - 20 °C - +70 °C
- As according power supply unit we recommend NDR-75-24 (21.13.1311)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- 1x converter, 1x terminal block, 1x product CD-ROM
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Height
- 56 mm
- Width
- 34 mm
- Depth
- 49 mm
- Weight
- 151.2 g
Packaging
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 170 mm
- Package weight (single piece)
- 0.222 kg
