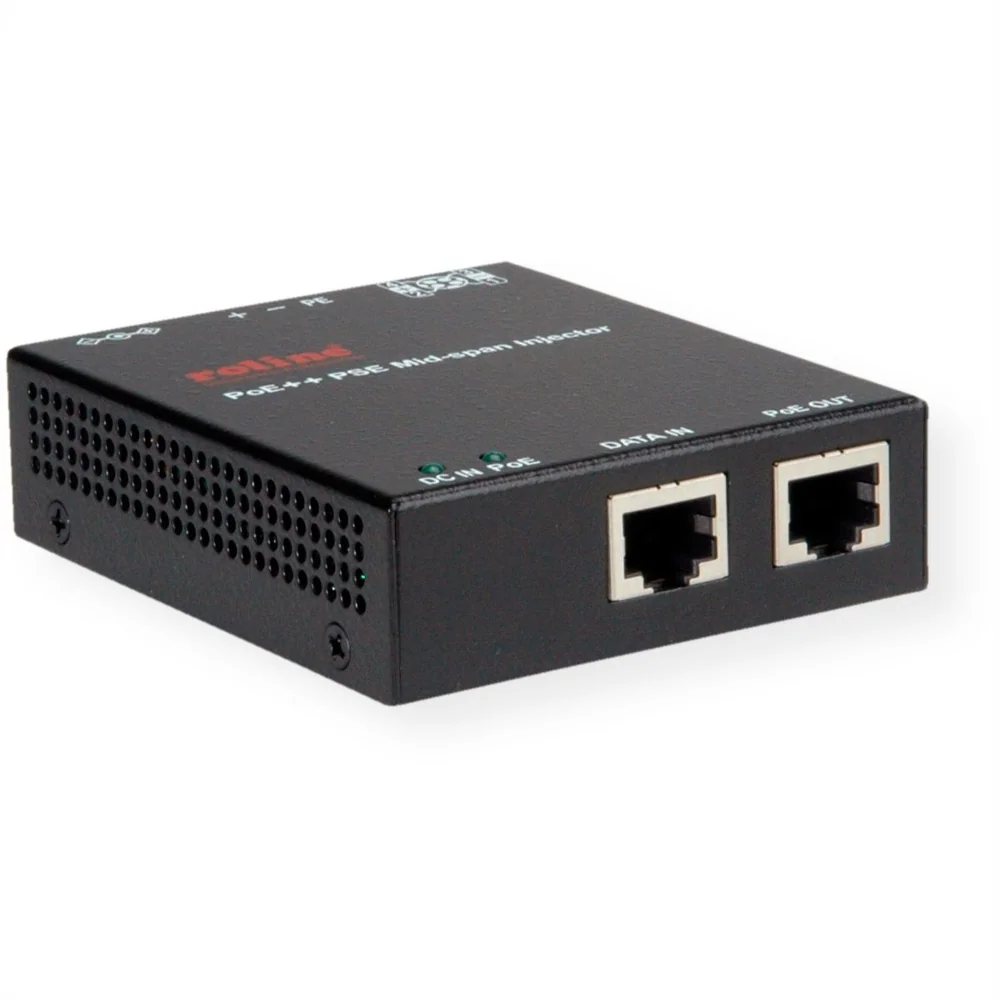

ROLINE Industrial Gigabit PoE++ Mid-Span Injector, 90W
- Item number
- 21.13.1202-1
- Part number
- 21.13.1202
- EAN
- 7630049612440
- Brand
- ROLINE
- Weight
- 184 g
The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.- Supply of data and power into the network cables

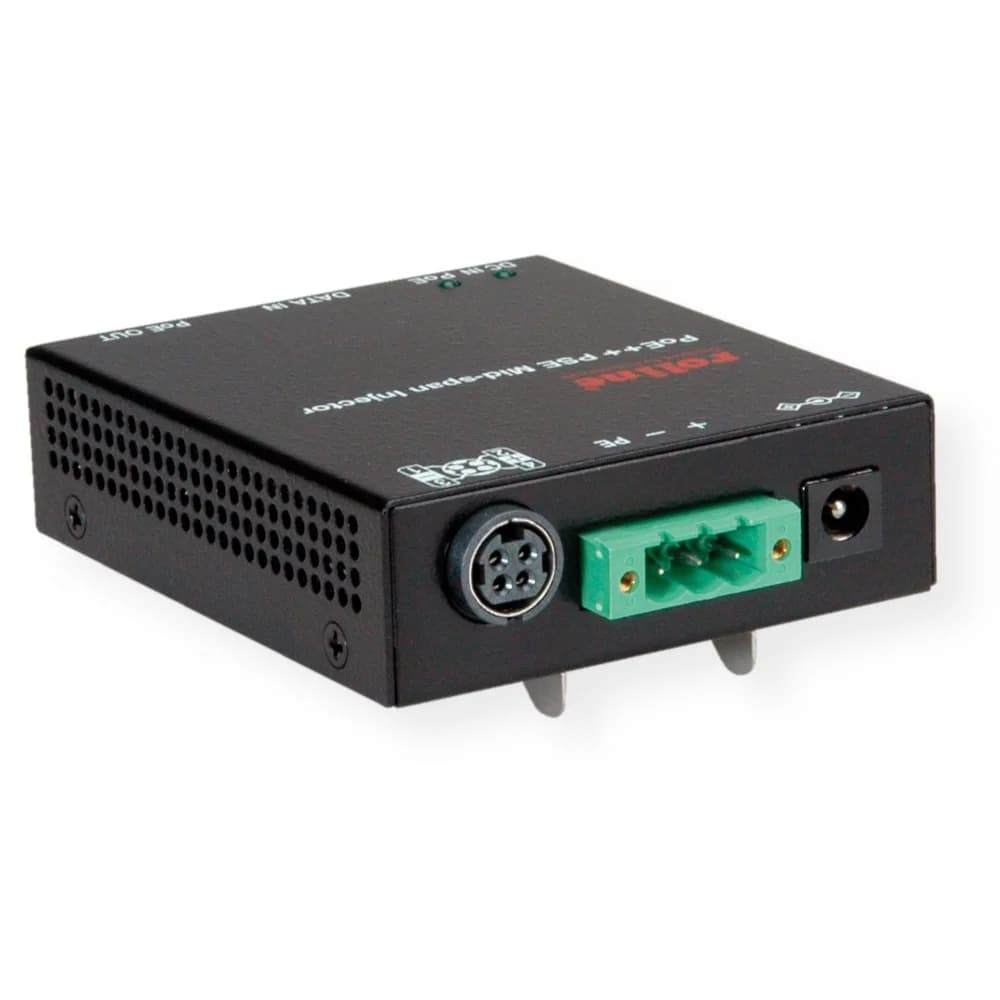

- Connectors: 1x RJ-45 port (Data In, Data input), 1x power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
- Compatible with 802.3af and 802.3at
- Power via PoE++: up to 90W
- LED indicators for Power, Link / Act. and PoE
- Output voltage: 802.3af standard (45V-57V DC)
- Contents: Injector, manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- PoE-Injector
- Colour
- black
- Power over Ethernet (PoE)
- PoE++ (IEEE 802.3bt)
- Quantity of PoE ports
- 1
- Max. PoE output power per port
- 90 W
- Max. PoE output power (total)
- 90 W
- Dimensions (HxWxD)
- 85 x 73 x 24 mm
- Mains connection
- Loose cable / screw terminals
- Height
- 85 mm
- Width
- 73 mm
- Depth
- 24 mm
- Weight
- 184 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.278 kg
