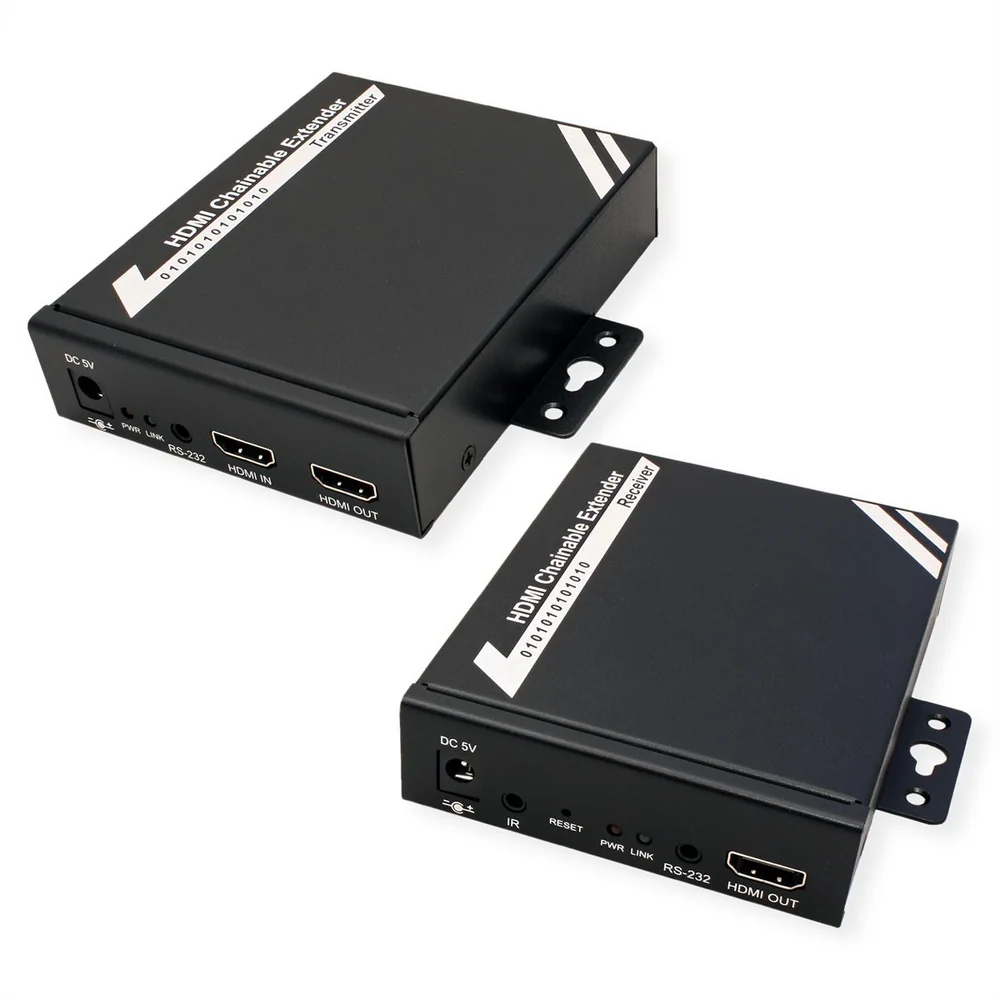

ROLINE HDMI Extender over Twisted Pair, Cat.5/6, chainable, 100 m
- Item number
- 14.01.3468-1
- Part number
- 14.01.3468
- EAN
- 7611990123735
- Brand
- ROLINE
- Weight
- 1066.94 g
The transmission distance of the HDMI signal can be extended up to 100 m by using one Cat.5e or Cat.6 cable. Easily connect the transmitter and the receiver unit with a twisted pair cable of up to 100 m length Max.…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The transmission distance of the HDMI signal can be extended up to 100 m by using one Cat.5e or Cat.6 cable.
- Easily connect the transmitter and the receiver unit with a twisted pair cable of up to 100 m length
- Max. resolution (nominal) over 100m: 1920x1080, 1080p
- Supports uncompressed HDMI signal
- Supports CEC pass-through
- Supports uncompressed audio stereo
- External infrared emitters - allow using the remote control of the source device
- Metal housing
- Power supply included in content of delivery
- Contents: Transmitter (1x RJ-45 F, 2x HDMI F), receiver (3x RJ-45 F, 1x HDMI F), infrared extender trasnsmitter, infrared extender receiver, 2x power supply, 2x cables IR (1.1m), 2x serial cables (3.5mm/DB9F, 1.1m), manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- Transmitter (1x RJ-45 F, 2x HDMI F), receiver (3x RJ-45 F, 1x HDMI F), infrared extender trasnsmitter, infrared extender receiver, 2x power supply, manual
- Interface
- HDMI
- Max. distance
- 100 m
- Video input
- HDMI
- Audio input
- HDMI
- Video output
- HDMI
- Audio output
- HDMI
- Max. resolution (nom.)
- 1.920 x 1.080
- Max. resolution
- 1920 x 1080 @60Hz (2K, Full HD)
- Dimensions (HxWxD)
- 28 x 115 x 91 mm
- Power supply unit
- 2
- Technical particularity
- External infrared emitters allow using the remote control of the source device
- Height
- 28 mm
- Width
- 115 mm
- Depth
- 91 mm
- Weight
- 1066.94 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 320 mm
- Package weight (single piece)
- 1.282 kg
