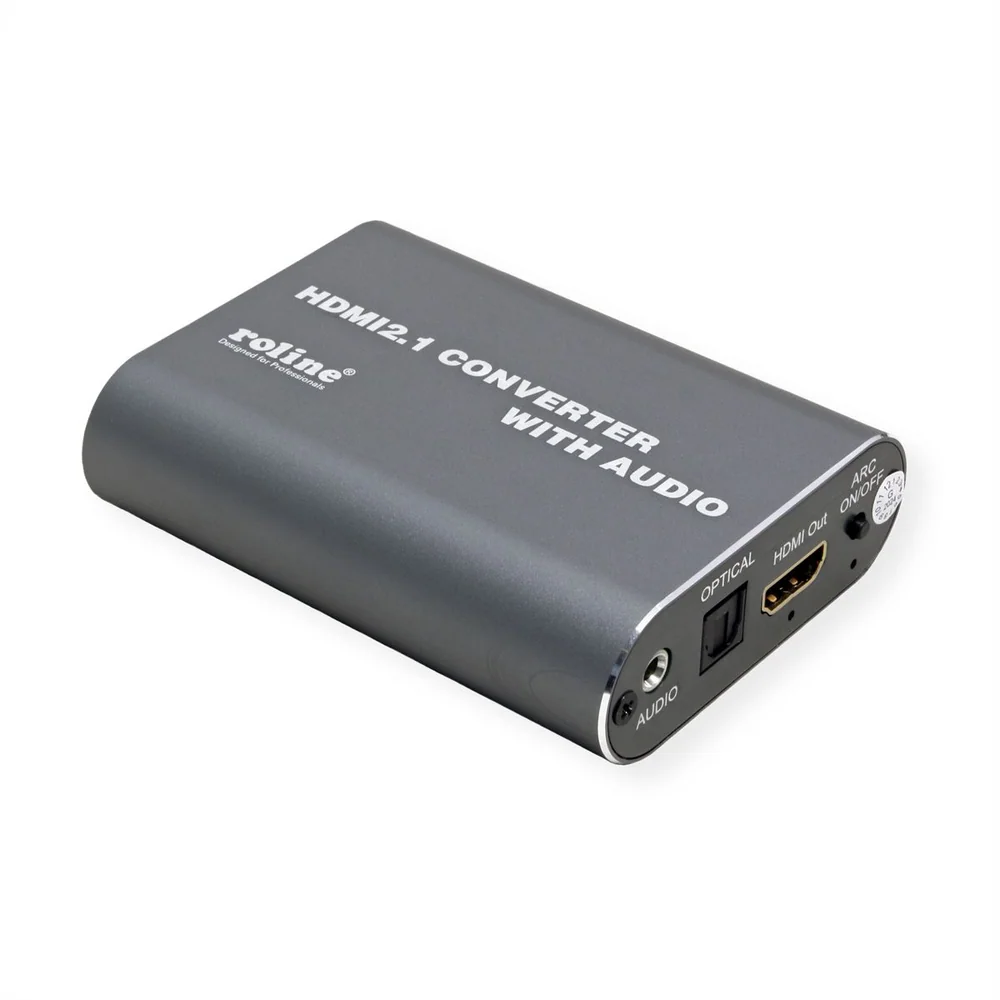

ROLINE HDMI 8K Audio Extractor, LPCM 7.1
- Item number
- 14.01.3444-10
- Part number
- 14.01.3444
- EAN
- 7630049672659
- Brand
- ROLINE
- Weight
- 106 g
This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal. Not all monitors have good speakers. With this extractor you can redirect the audio signal via S/PDIF (optical) or…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal. Not all monitors have good speakers. With this extractor you can redirect the audio signal via S/PDIF (optical) or analog via the 3.5mm port to a speaker system and the pure image signal goes to the screen.
This ROLINE HDMI 8K@60Hz Audio Extractor allows you to uncouple the audio signal from the HDMI signal.- Maximum resolution: 8K@60Hz
- Maximum bandwidth: 40Gbps
- Supports HDMI 2.1
- Supports HDCP 2.3
- Audio output supports 4 EDID selection modes (2CH/5.1CH/7.1CH/TV)
- HDMl frequency support: LPCM up to 7.1 192 KHz 24Bit
- S/PDIF TOSLINK output: LPCM up to 5.1 96KHz 24 Bit
- Stereo RCA output format: PCM 2.0 CH
- Contents: extractor, USB cable (A-C), user manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- HDMI Audio Extractor
- Colour
- black
- Scope of delivery
- Extractor, USB cable (A-C), user manual
- Max. resolution
- 7680 x 4320 @60Hz (8K, UHD-2)
- Side 1 connection (PC)
- HDMI
- Side 2 connection (Peripherals)
- HDMI, Optical S/PDIF, 3.5mm
- Side 1 Connector Type
- HDMI Type A
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- HDMI Type A Mini Phone Stereo 3.5 mm, 3-pin Toslink
- Side 2 Connector Gender
- Female
- Area of application
- External
- Dimensions (HxWxD)
- 24 x 70 x 90 mm
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 60 °C
- Height
- 24 mm
- Width
- 70 mm
- Depth
- 90 mm
- Weight
- 106 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 190 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.15 kg
