ROLINE HDMI 4x1 QUAD Multi-Viewer, with Seamless Switch
- Item number
- 14.01.3596-1
- Part number
- 14.01.3596
- EAN
- 7630049632660
- Brand
- ROLINE
- Weight
- 965 g
Displays the video output of up to 4 HDMI sources on a monitor or projector in up to 4K@30Hz. You can choose between different viewing modes to see the content from up to four sources either separately or simultaneously.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Displays the video output of up to 4 HDMI sources on a monitor or projector in up to 4K@30Hz. You can choose between different viewing modes to see the content from up to four sources either separately or simultaneously.

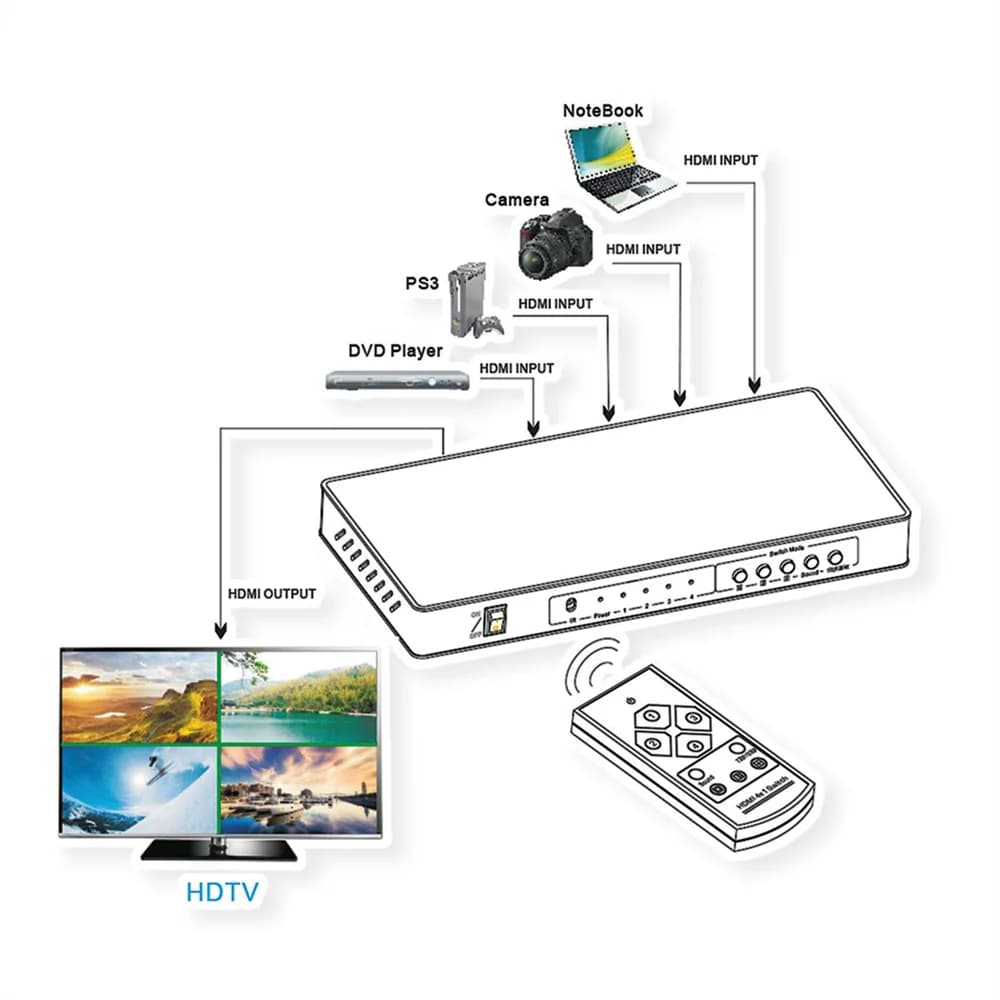

- Application example: A display device (monitor/TV/beamer) is supplied by several HDMI sources such as BluRay players, etc. The desired source can be selected for a single display or up to four sources simultaneously via various display options.

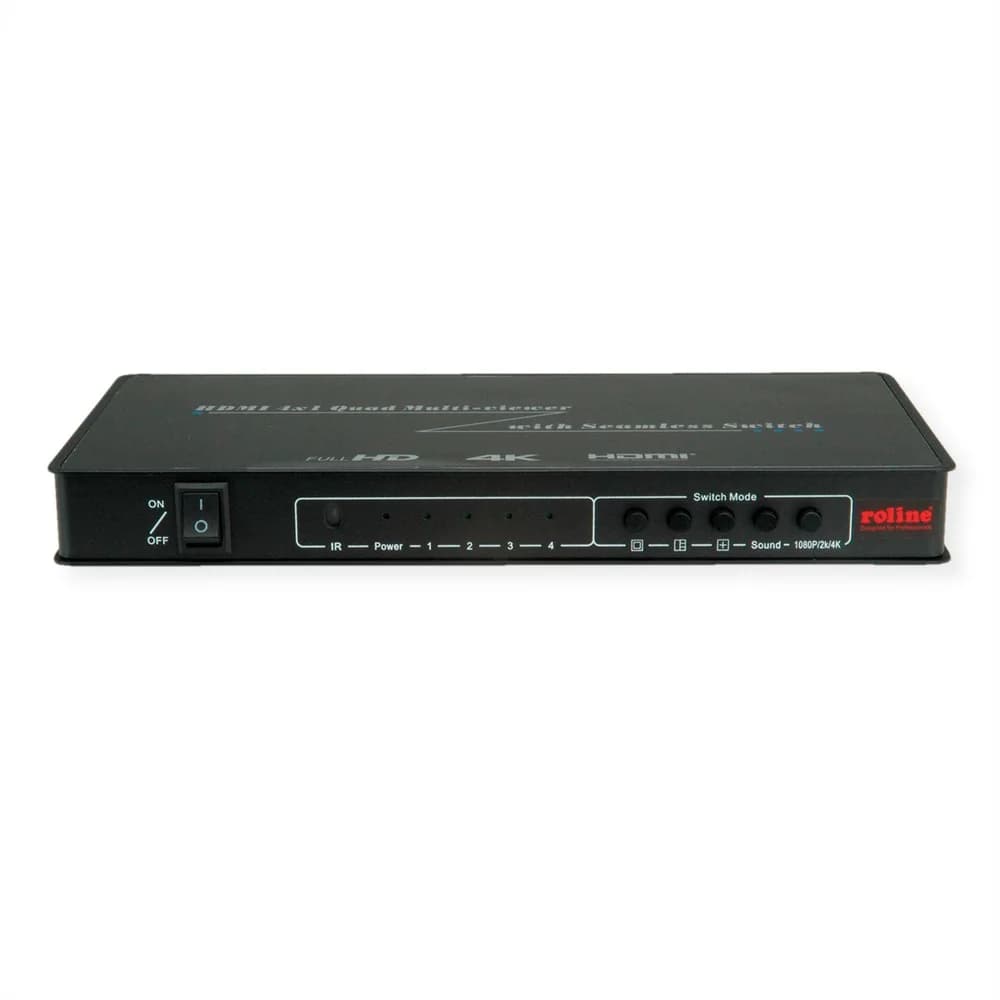

- Switching between PCs is done via buttons on the switch or via remote control
- Compliant with HDMI 1.4
- Up to 4K@30Hz resolution

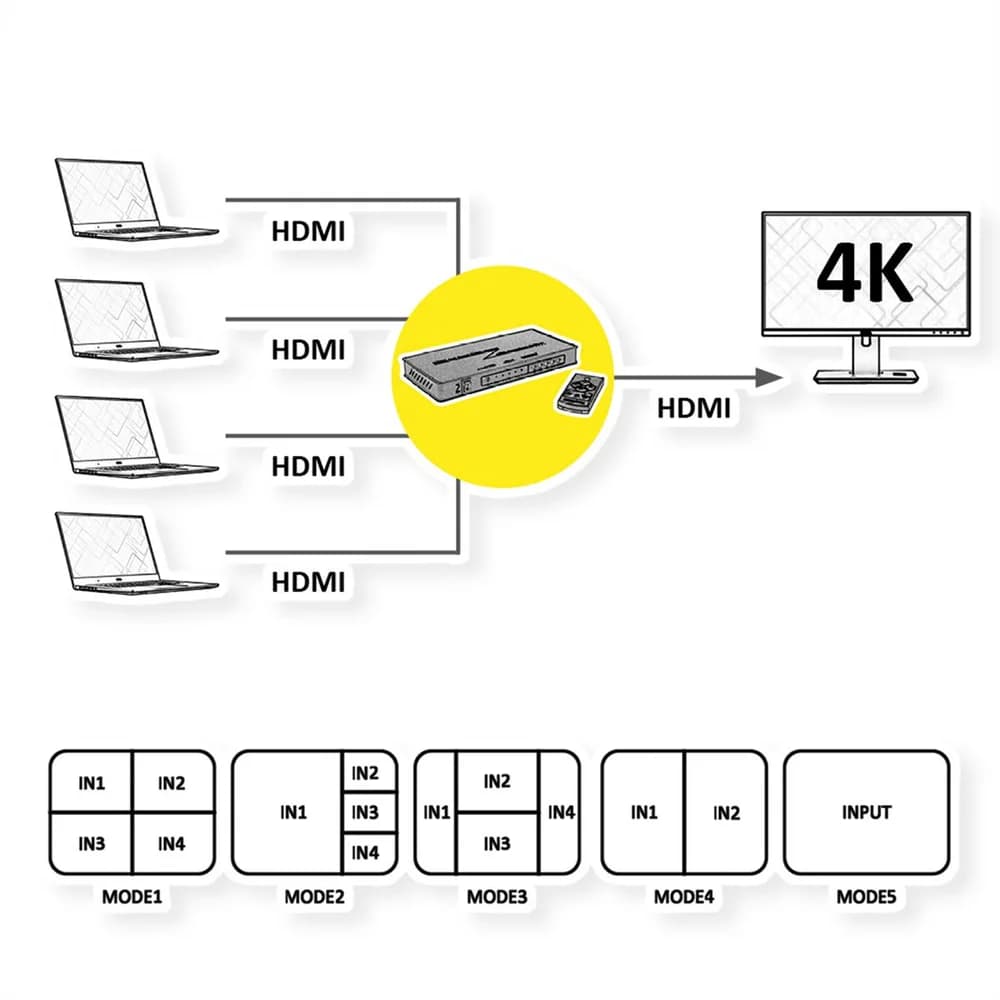

- Supports 4 by 1 Quad Multi-viewer and seamless switching
- Plug & Play

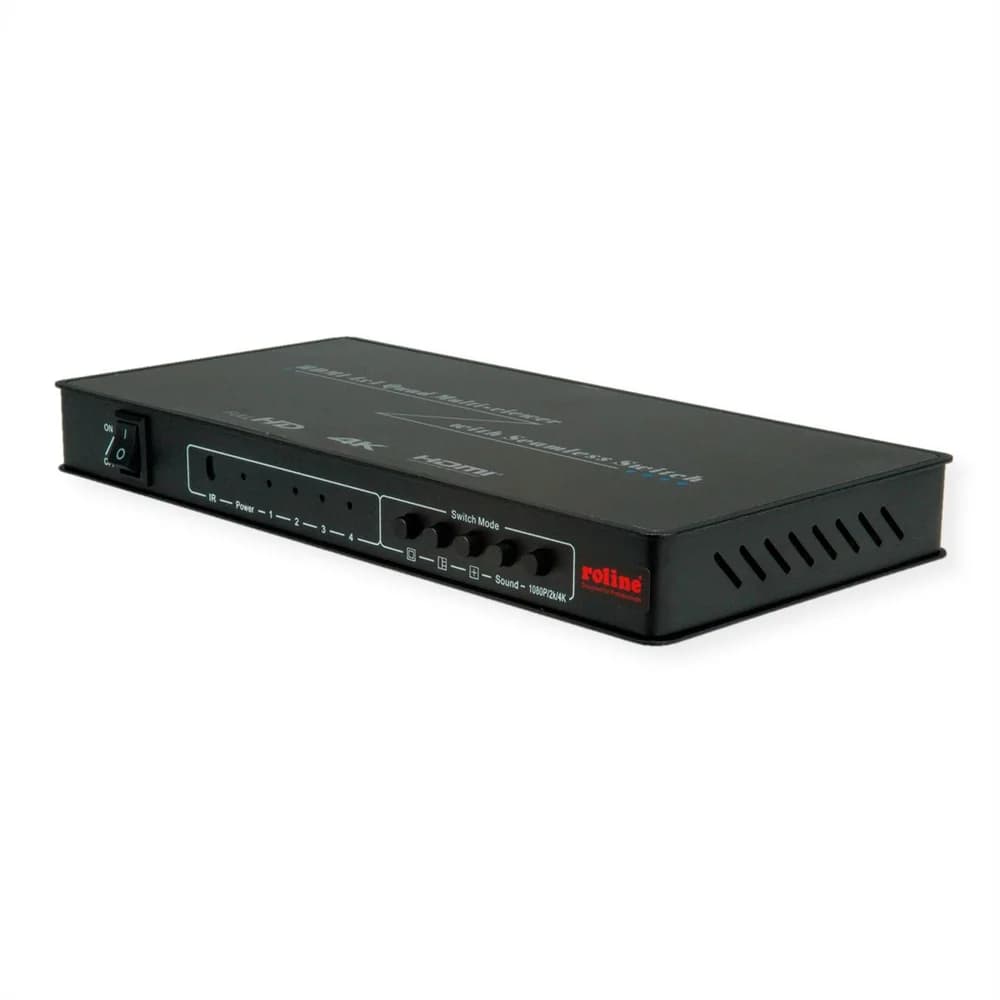

- Black metal housing

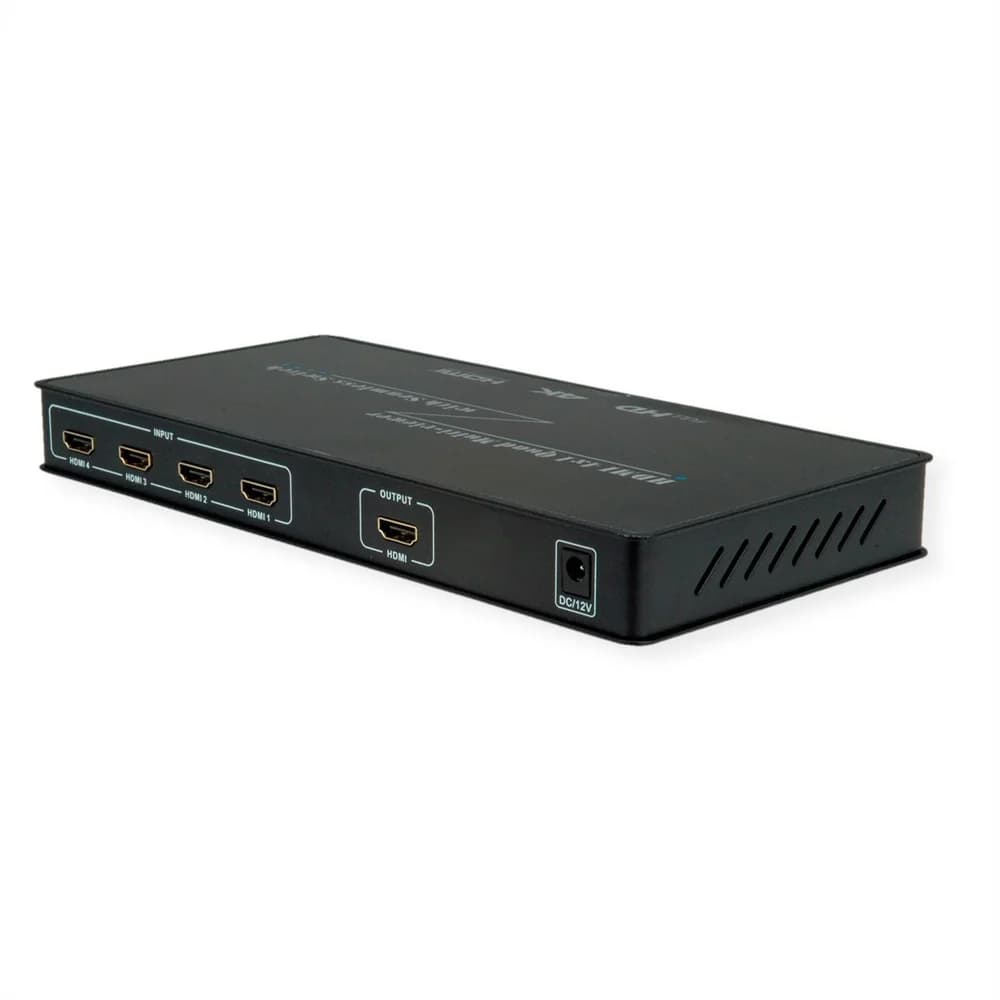

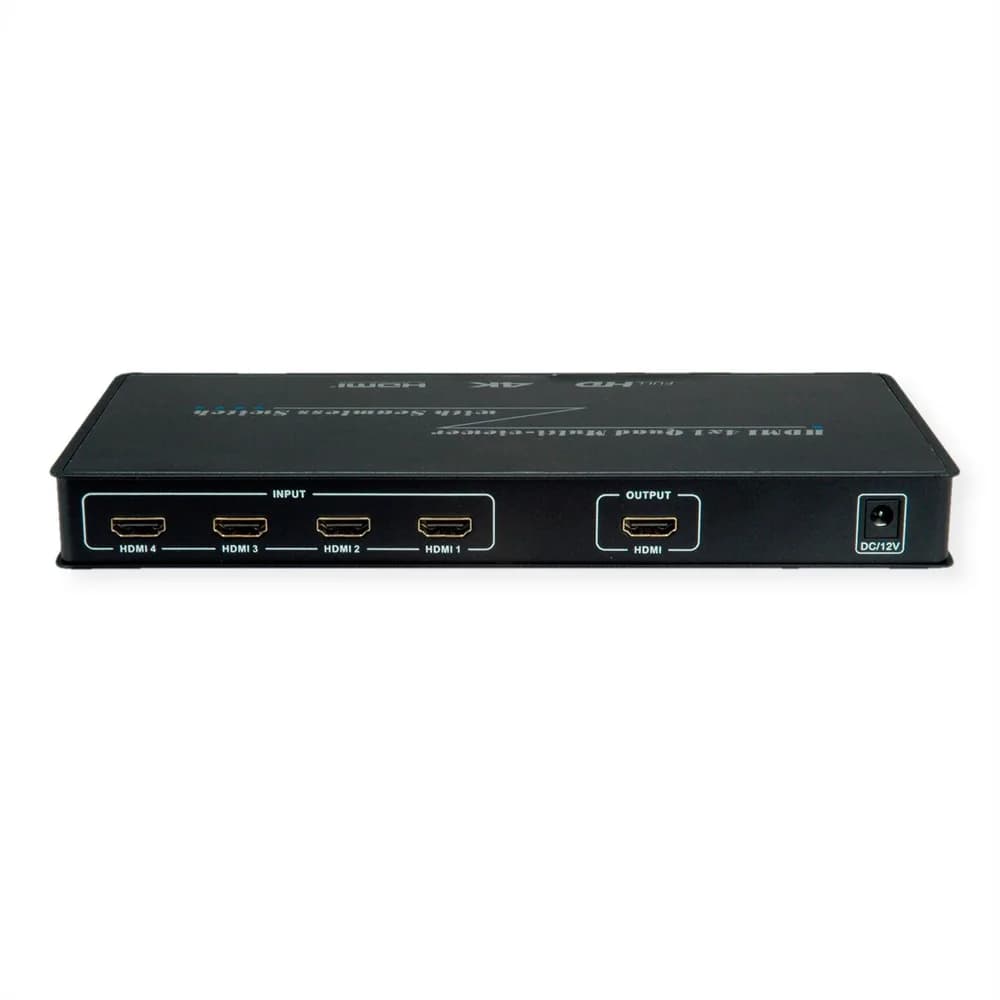

- Input: 4x HDMI A Female
- Output: 1x HDMI A Female

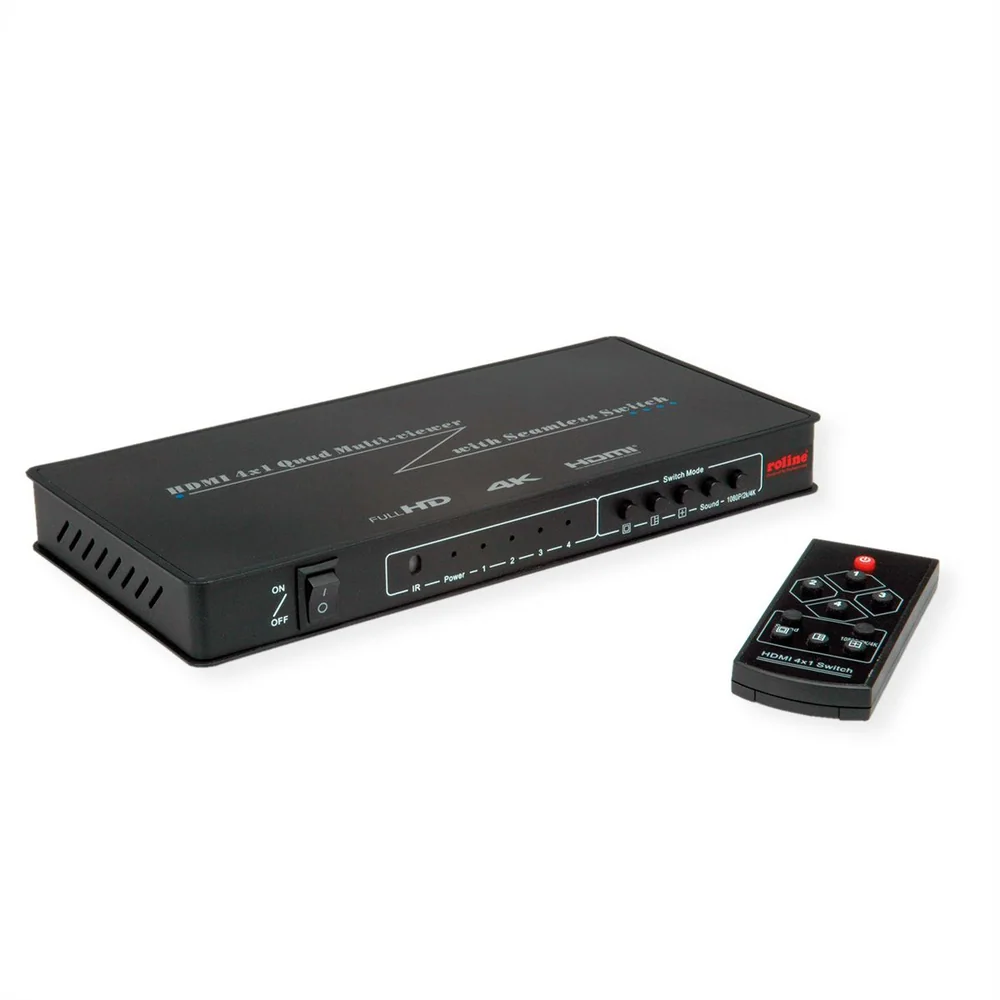

- Contents: Main unit, power supply, remote control, button cell (CR2025), user manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI-Video-Switch
- Colour
- black
- Scope of delivery
- main unit, power supply, remote control, button cell (CR2025), user manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 1
- Max. bandwidth
- 225 MHz
- Video input
- 4x HDMI Female
- Video output
- 1x HDMI Female
- Max. resolution (nom.)
- 3840 x 2160
- Max. resolution
- 3840 x 2160 @30Hz (4K, Full HD)
- Dimensions (HxWxD)
- 27 x 250 x 120 mm
- Power supply output
- 12 VDC
- Technical particularity
- Switching by push botton / remote control
- Mains connection
- Appliance Europlug, Type-C
- Battery category
- Portable battery
- Number of batteries
- 1 pieces
- Battery type
- Button cell CR2025
- Battery
- included
- Battery technology
- Li-Ion
- Operating temperature min.
- -15 °C
- Operating temperature max.
- 55 °C
- Height
- 27 mm
- Width
- 250 mm
- Depth
- 120 mm
- Weight
- 965 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 300 mm
- Depth of packaging (single piece)
- 230 mm
- Package weight (single piece)
- 1.2 kg
