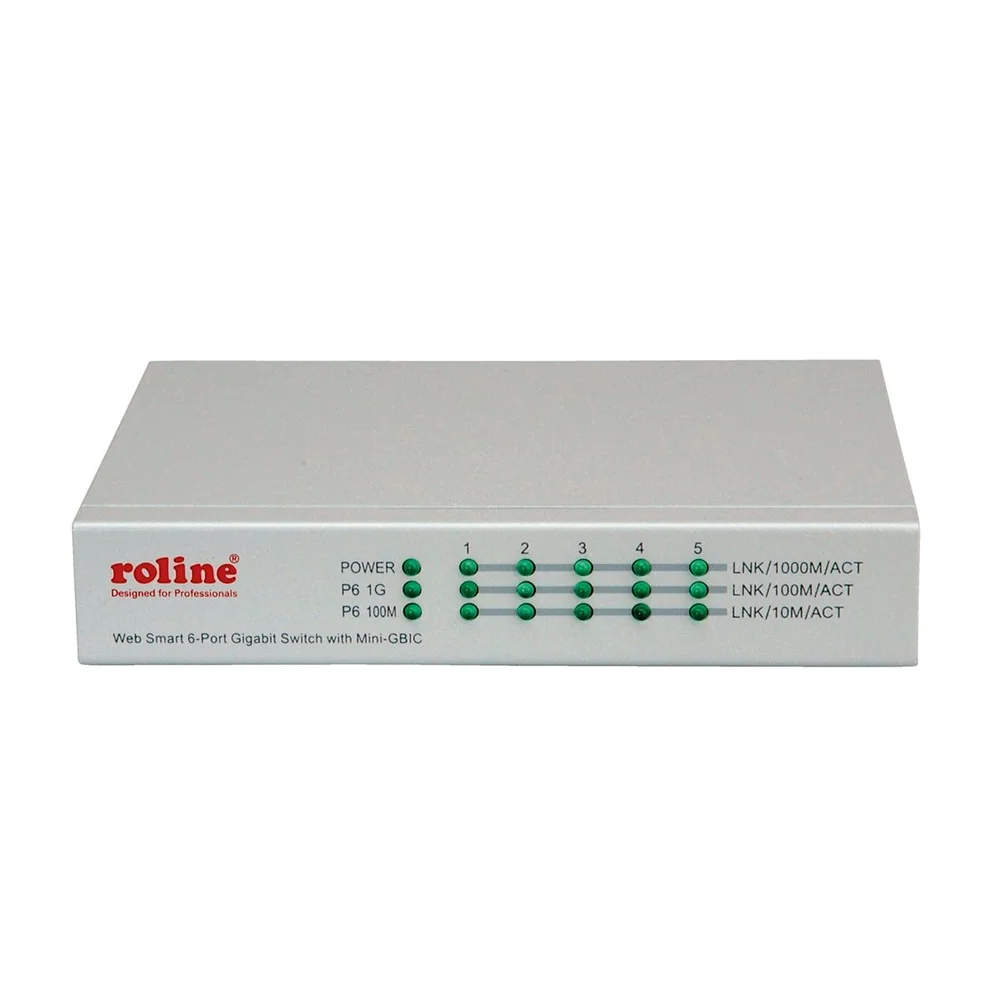

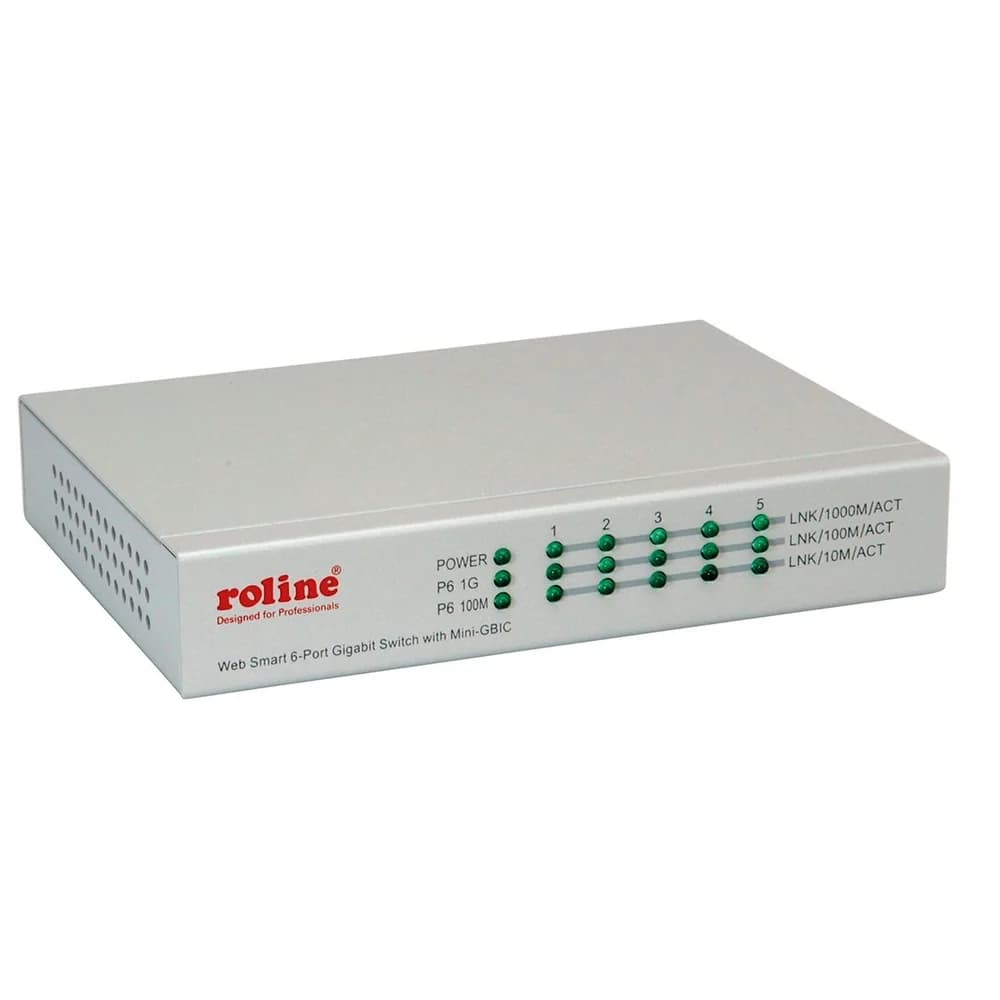

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP)), managed
- Item number
- 21.14.3523-1
- Part number
- 21.14.3523
- EAN
- 7611990138128
- Brand
- ROLINE
- Weight
- 386.3 g
Managed 5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Managed 5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!

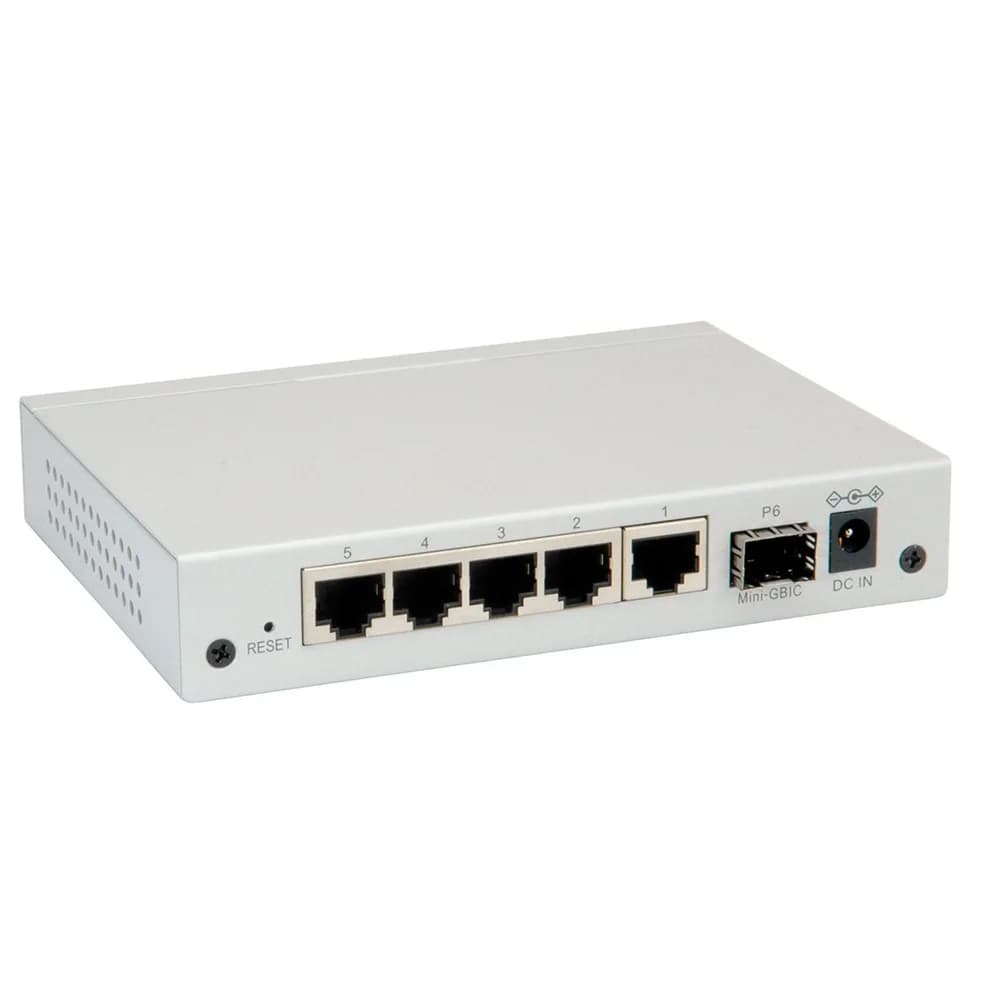

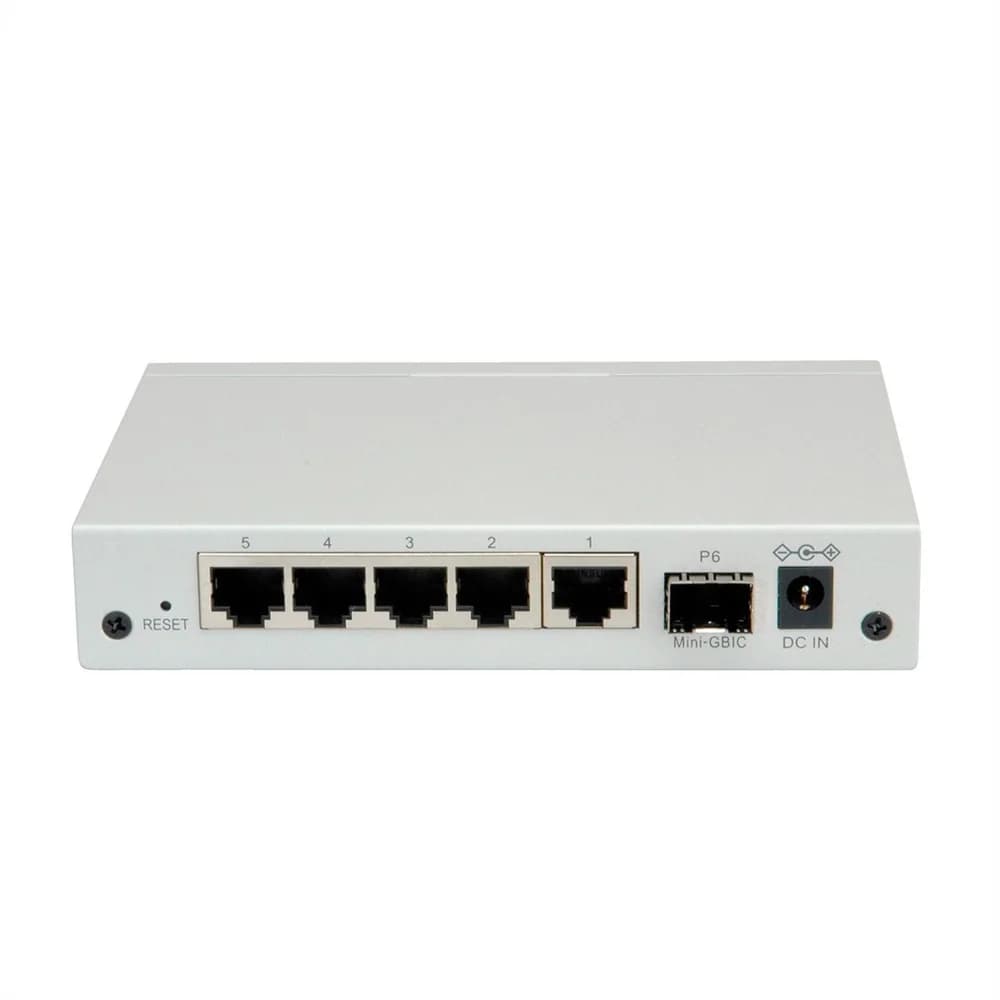

- Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbps Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
- All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
- Supports full/half-duplex transfer mode for 10/100Mbps
- Supports full-duplex transfer mode for 1000Mbps
- Store-and-Forward switching method
- Supports SFP with Digital Diagnostic Monitoring (DDM)
- Provides Automatic Laser Shutdown (ALS) function
- Provides fiber optical power Alarm (OPA) function
- Alarm e-mail notification
- Wire-speed packet filtering and forwarding rate
- Supports IEEE 802.3x flow control
- MAC Address Table: 8K
- Buffer Memory: 0.5 MB
- LED Indication
- Environment Operating Temperature: 0°C - 40°C (main device)
- Dimensions (WxDxH): 144 x 104.5 x 26 mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- grey
- Scope of delivery
- Switch, power supply (5V DC, 2A), manual
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 6
- Gigabit Ethernet Ports RJ-45
- 5
- Gigabit Ethernet Ports Fibre
- 1
- Stackable
- no
- Dimensions (HxWxD)
- 144 x 104.5 x 26 mm
- Power supply
- External power supply unit
- Mains connection
- Appliance Europlug, Type-C
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 45 °C
- Height
- 144 mm
- Width
- 104.5 mm
- Depth
- 26 mm
- Weight
- 386.3 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 300 mm
- Package weight (single piece)
- 0.6 kg
