ROLINE Gigabit Converter, RJ-45 to Mini GBIC
- Item number
- 21.13.1074-2
- Part number
- 21.13.1074
- EAN
- 7630049675124
- Brand
- ROLINE
- Weight
- 295 g
Fiber optic converters can be used to adapt different cabling within a LAN to create a functional network. Whether for converting fiber optics to a classic twisted pair network with a Mini-GBIC or for converting fiber…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Fiber optic converters can be used to adapt different cabling within a LAN to create a functional network. Whether for converting fiber optics to a classic twisted pair network with a Mini-GBIC or for converting fiber optics to another fiber optic network with two Mini-GBICs. The ROLINE GigaBit converter offers both options.
The ROLINE Gigabit Converter converts a Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely selected using a Mini-GBIC module. Mini-GBIC modules are available for SX/LC (21.14.3500) and LX/LC (21.14.3501: 10km, 21.14.3502: 20km).- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LXGigabit Ethernet Standards

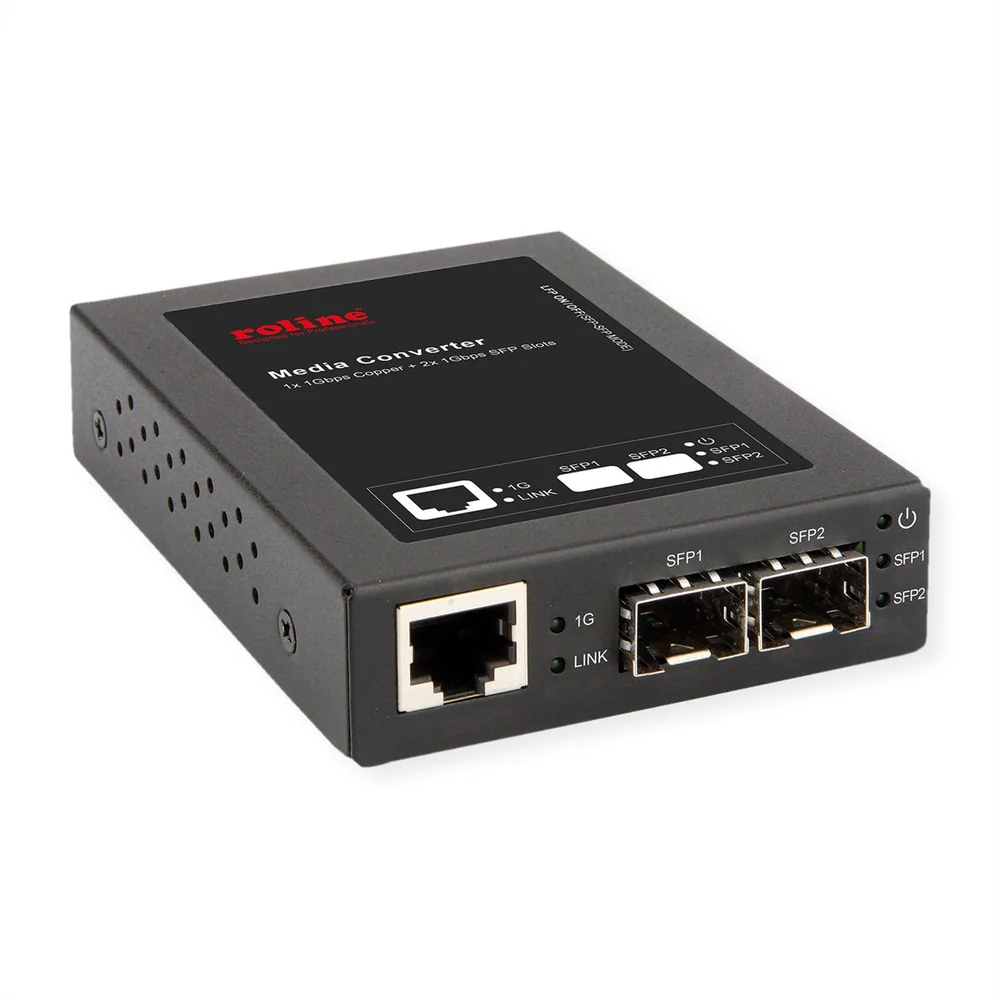

- Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port and 2x Mini-GBIC slots on the fiber optic side

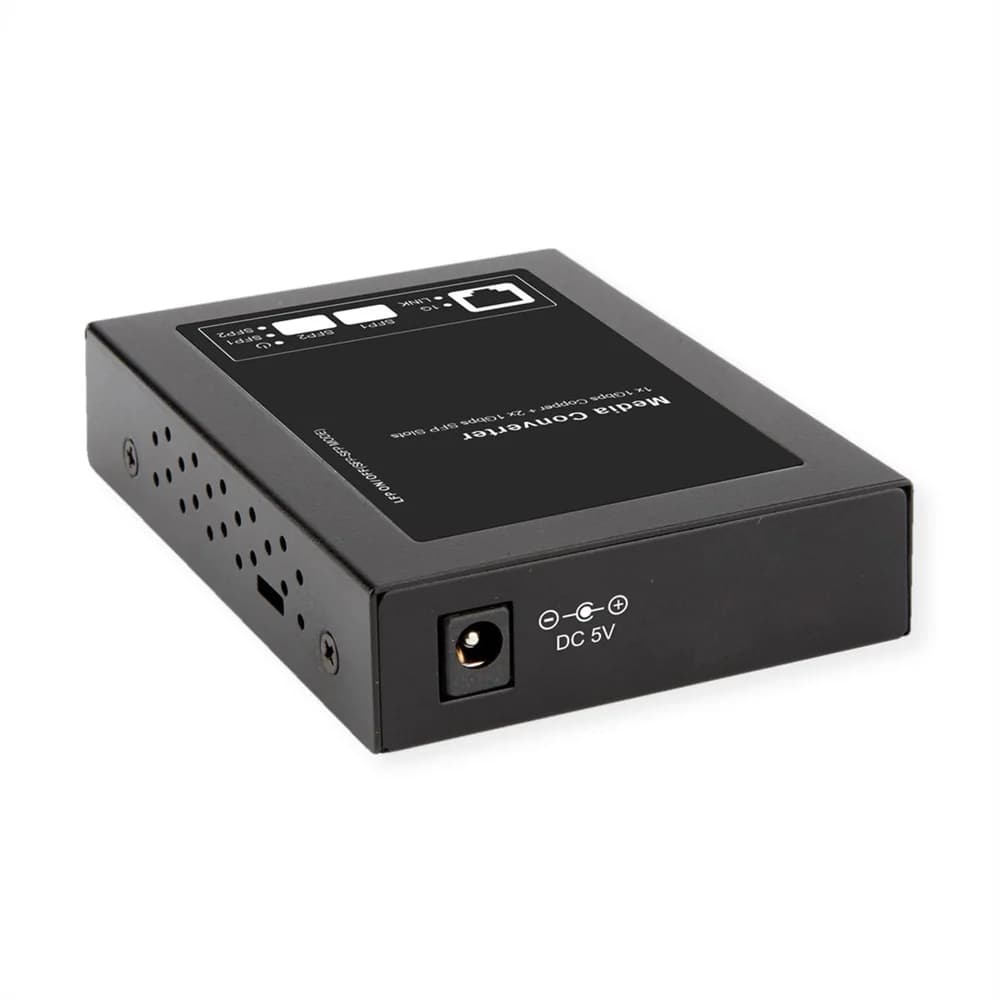

- Power is supplied via an external power supply (included)
- TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
- Each SFP slot supports both singlemode and multimode or mixed
- Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
- Dimensions: 22 x 74 x 102 mm
- Scope of delivery: converter, quick installation guide, plug-in power supply unit (5V DC, 2A)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Network Media Converters
- Colour
- black
- Scope of delivery
- Converter, Quick Installation Guide, Power Adapter (5V DC, 2A)
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Technical particularity
- Fibre optic connection is realized by MiniGBIC Module
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 80 °C
- Height
- 22 mm
- Width
- 74 mm
- Depth
- 102 mm
- Weight
- 295 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.3 kg
