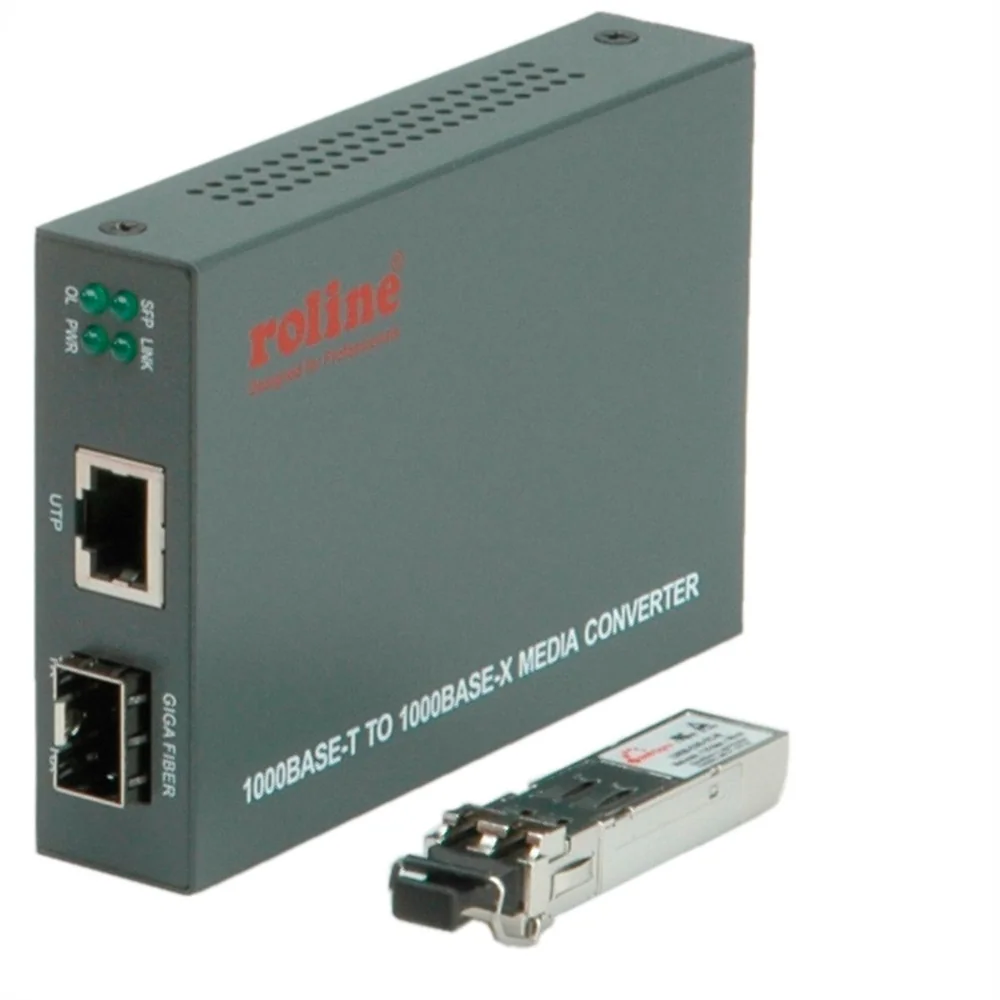

ROLINE Gigabit Converter, incl. mini GBIC, RJ45 to LC
- Item number
- 21.13.1069-5
- Part number
- 21.13.1069
- EAN
- 7611990970049
- Brand
- ROLINE
- Weight
- 222.7 g
These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types Provides media conversion from STP to multimode LC fibre media type RC-1000SX/LC: The maximum cable…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
- Provides media conversion from STP to multimode LC fibre media type
- RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber
- Supports transparent conversion of any packet types with no packet length limitation
- Supports auto-negotiation with link partners
- Provides link pass through between copper and fiber link
- Provides SFP on fiber port for mounting variety of fiber options
- Supports optional DIN-Rail installation
- Dimension;(WxDxH) 72,5x108x23mm
- Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
- Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
- Compliant with IEEE 802.3ab, 802.3z
- Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fib
- Content: Converter, Manual, PSU (7,5V DC, 500mA), Mini-GBIC Module SX/LC
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Network Media Converters
- Colour
- black
- Scope of delivery
- Converter, Manual, PSU (7.5V DC, 500mA), Mini-GBIC Module SX/LC (21.14.3500
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Quantity of fibre LC ports
- 1
- Converts to
- RJ-45/LC
- Fibre
- Multi mode
- Ethernet fibre standard
- 1000Base-SX
- Max. range 50 µm fibre
- 500m
- Height
- 23 mm
- Width
- 72.5 mm
- Depth
- 108 mm
- Weight
- 222.7 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 210 mm
- Package weight (single piece)
- 0.456 kg
