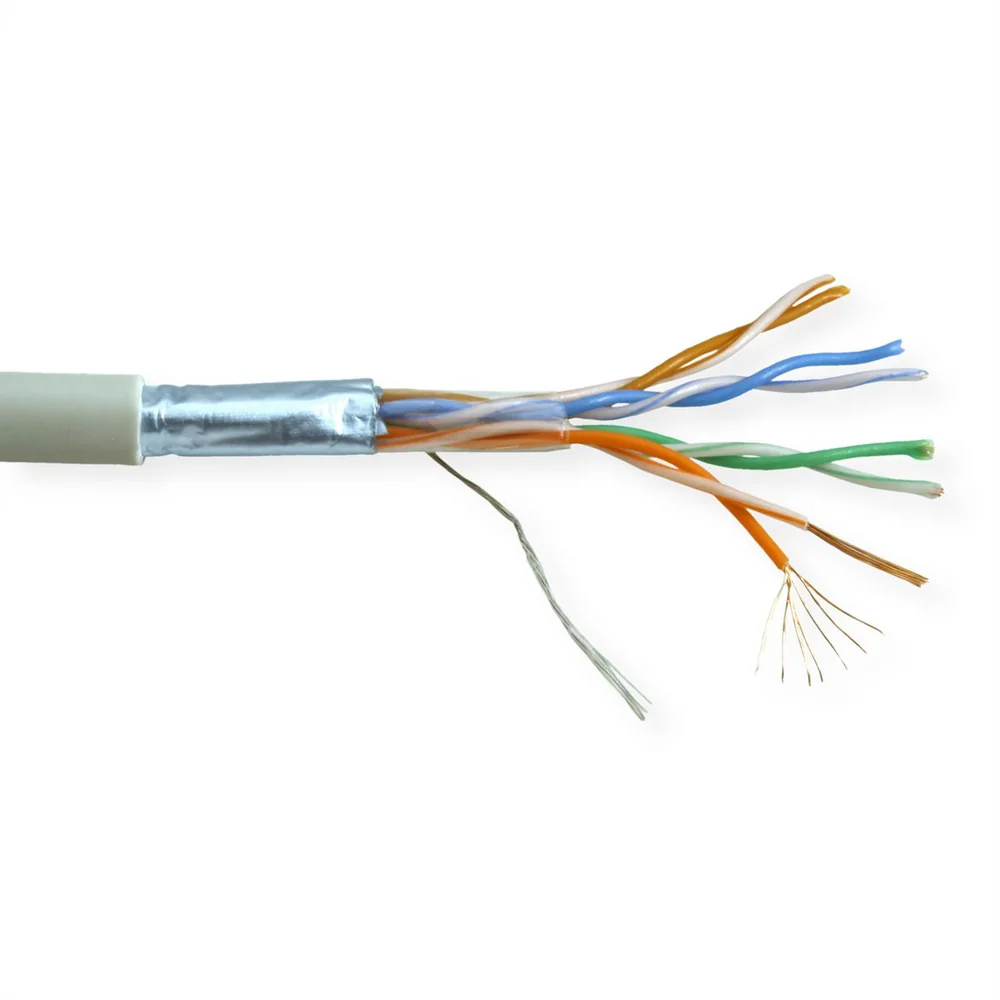

ROLINE FTP Cable Cat.5e (Class D), Stranded Wire, 300 m
- Item number
- 21.15.0121-1
- Part number
- 21.15.0121
- EAN
- 7611990935901
- Brand
- ROLINE
- Weight
- 9873.8 g
Structured building wiring Impedance: 100 Ohm Colour: Grey Construction 21.15.0121: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil Diagram: attenuation/near end crosstalk For a structured cabling…
Description
- Structured building wiring
- Impedance: 100 Ohm
- Colour: Grey
- Construction 21.15.0121: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil

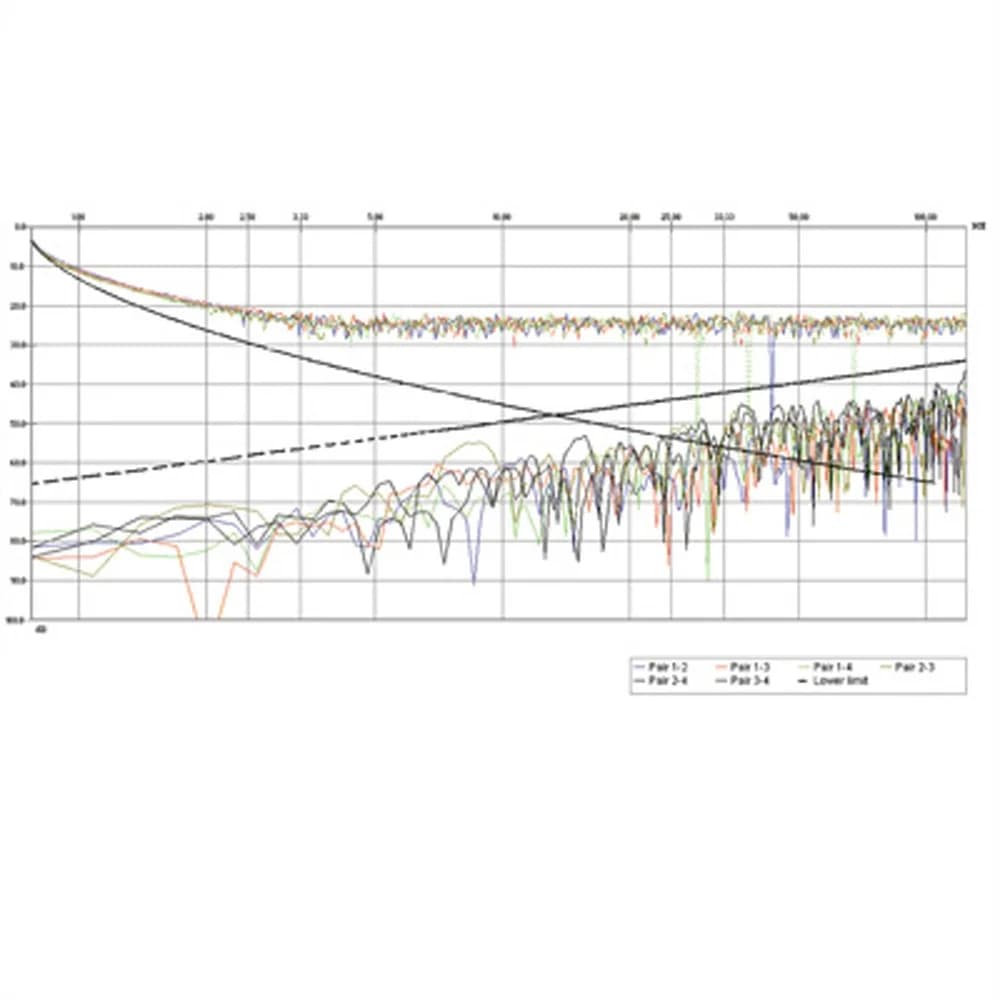

- Diagram: attenuation/near end crosstalk
For a structured cabling system we recommend to use the following components:
ROLINE Cat.5e FTP Cable, Solid Wire, AWG24: 21.15.0009 (100 m), 21.15.0010 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e FTP Patch Cord, grey, 5 m: 21.15.0105
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- Raw cable Cat.5e
- Colour
- grey
- Length
- 300 m
- Contents
- 300 m
- Shield type
- F/UTP
- Transfer quality
- Cat5e / Class D
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 26
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Cable LSOH
- no
- Material (external cable mantle)
- PVC
- Weight
- 9873.8 g
Packaging
- Height of packaging (single piece)
- 300 mm
- Width of packaging (single piece)
- 440 mm
- Depth of packaging (single piece)
- 450 mm
- Package weight (single piece)
- 10.329 kg
