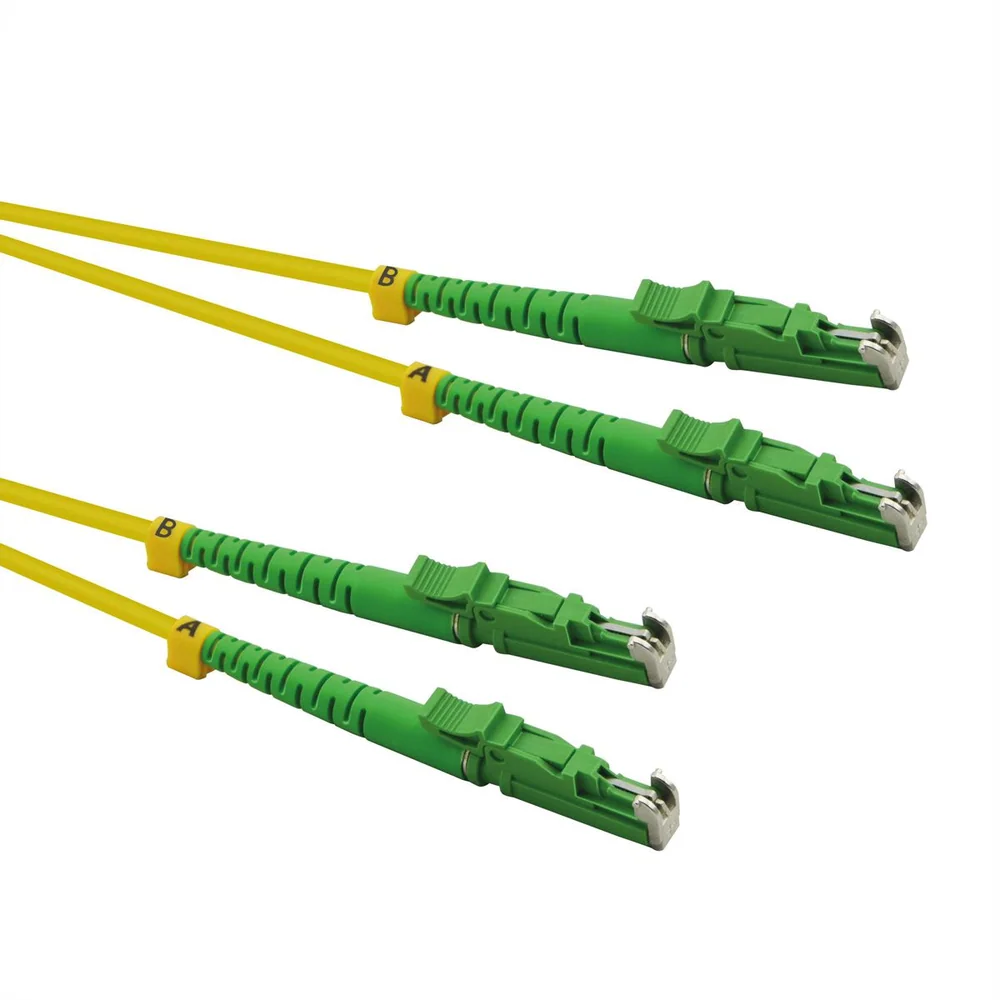

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH/LSH, APC Polish, LSOH, yellow, 1 m
- Item number
- 21.15.9501-10
- Part number
- 21.15.9501
- EAN
- 7611990955053
- Brand
- ROLINE
- Weight
- 29.9 g
High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are APC polished.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are APC polished.
- Duplex cable with fiber type 9/125µm OS2
- Cable material: sheath halogen-free and flame-retardant, yellow, solid core with aramid strain relief
- LSH connectors: precision-manufactured connectors with low return loss, APC ground joint, ceramic ferrule
- The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
- APC Polish (8° - APC - Angled Physical Contact - allows tighter connection and smaller end-face radii)
- IL < 0.25dB, RL > 60dB
- IL (typical) < 0.12dB
- Cable OD (outer diameter): 3.0 x 6.0mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OS2
- Colour
- yellow
- Length
- 1 m
- Quantity of fibre
- 2
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Single mode 9/125µm OS2
- Connection ports
- LSH / LSH
- Side 1 Connector Type
- LSH
- Side 2 Connector Type
- LSH
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Aramid strain relief
- yes
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.2 dB
- Min. return loss
- 60 dB
- Weight
- 29.9 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.062 kg
