21.15.8850-3
ROLINE FO Jumper Cable 50/125µm OM4, LC/LC, LSOH, Low-Loss, violet, 0.5 m
LC / LC · 0.5 m · violet

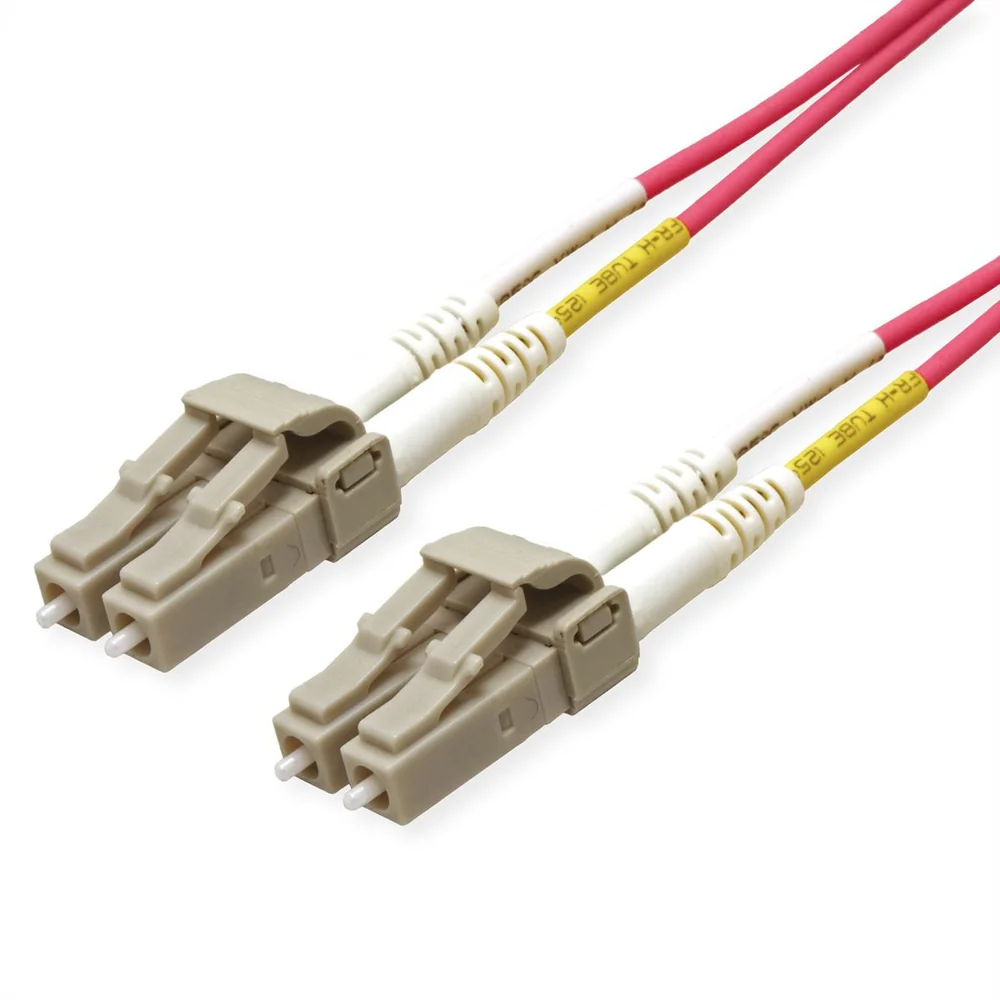

ROLINE FO Jumper Cable 50/125µm OM4, LC/LC, LSOH, Low-Loss, violet, 1 m
- Item number
- 21.15.8851-3
- Part number
- 21.15.8851
- EAN
- 7611990920051
- Brand
- ROLINE
- Weight
- 13.5 g
ROLINE fiber optic patch cord in OM4 quality with low-loss connectors for high-performance fiber optic cabling in excellent ROLINE quality.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE fiber optic patch cord in OM4 quality with low-loss connectors for high-performance fiber optic cabling in excellent ROLINE quality.
- Security for the future! The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths.
- It supports 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters, extends the system cost benefits to ultra long building backbones and medium length campus backbones.
- Material and clothing in ROLINE quality
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a low-loss LC connector: 0.15 dB
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
- Duplex cables with fiber type Multi-mode 50/125µm, OM4
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM4
- Colour
- violet
- Length
- 1 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM4
- Connection ports
- LC / LC
- Side 1 Connector Type
- LC
- side 1 connector ferrules
- low loss
- Side 2 Connector Type
- LC
- side 2 connector ferrules
- low loss
- Colour (Cable)
- violet
- Aramid strain relief
- yes
- External cable diameter
- 2.8x6 mm
- Mantle of external cable
- LS0H
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-1
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.15 dB
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 80 °C
- Weight
- 13.5 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 290 mm
- Package weight (single piece)
- 0.03 kg
