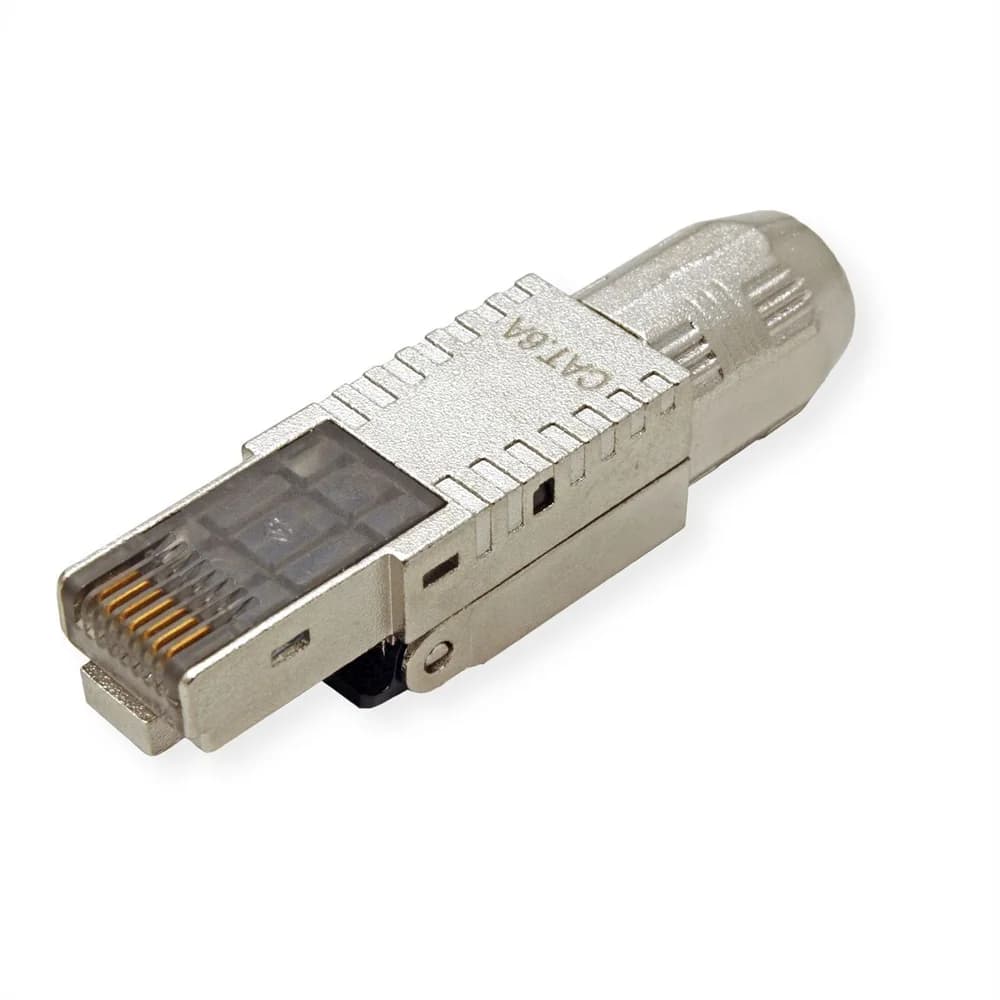

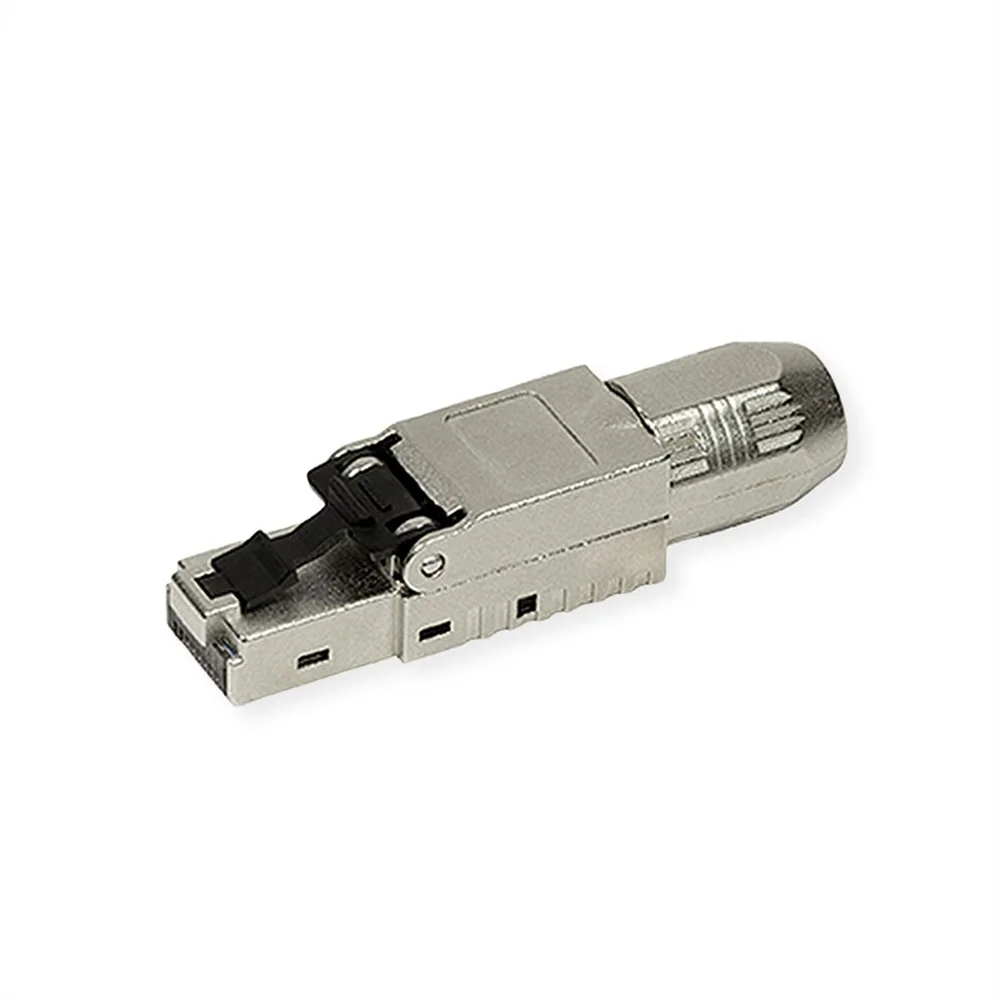

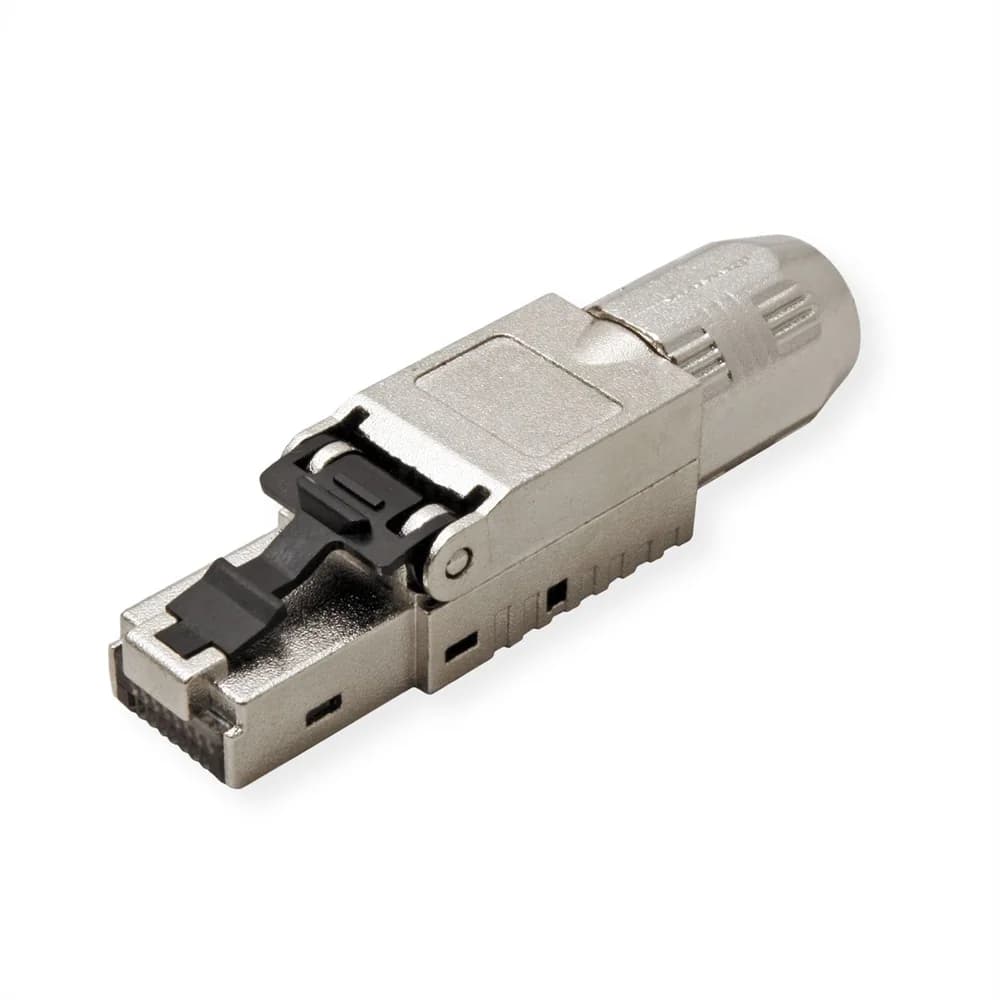

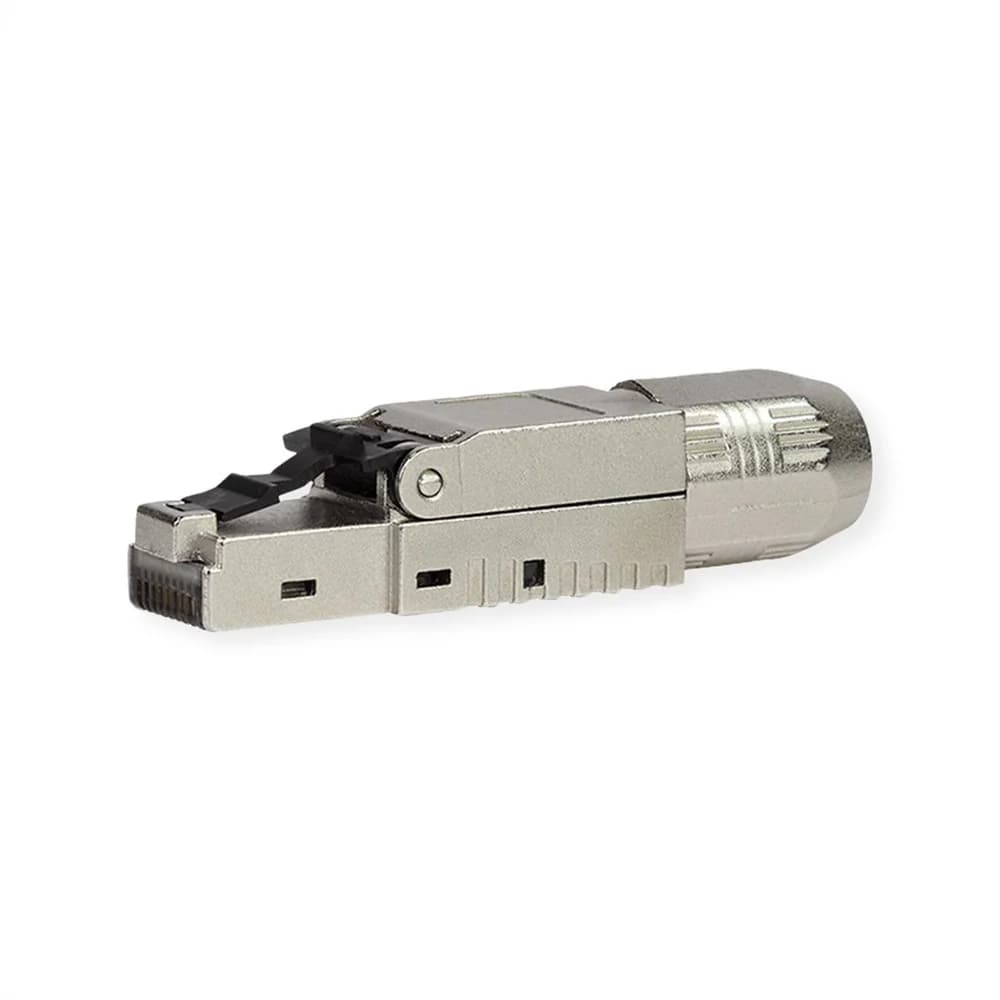

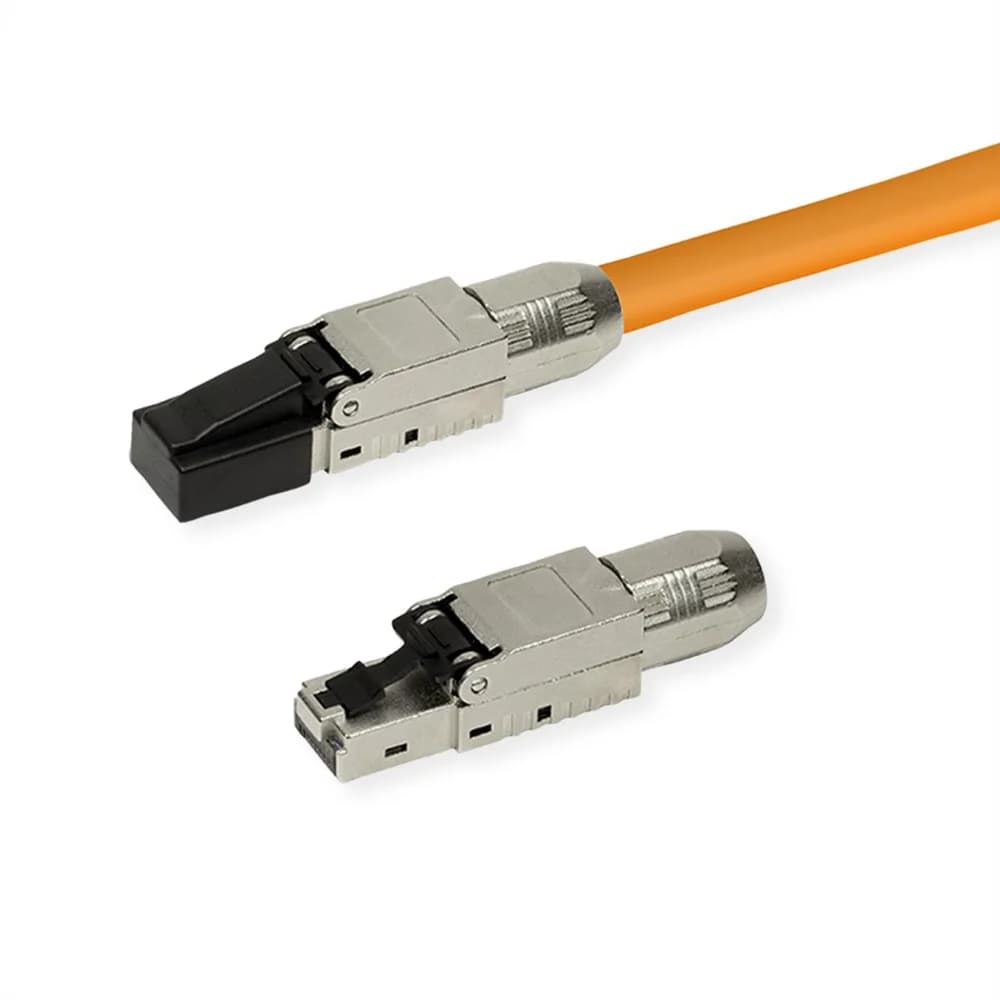

ROLINE Field Plug Cat.6A (Class EA), STP, silver
- Item number
- 21.17.0325-10
- Part number
- 21.17.0325
- EAN
- 7630049685055
- Brand
- ROLINE
- Weight
- 20.7 g
Fast and easy tool-free installable unshielded RJ45 connector Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7 Compact cable manager for round AWG22/1-26/1(1/0.65-1/0.4mm) and stranded cable AWG…
Description

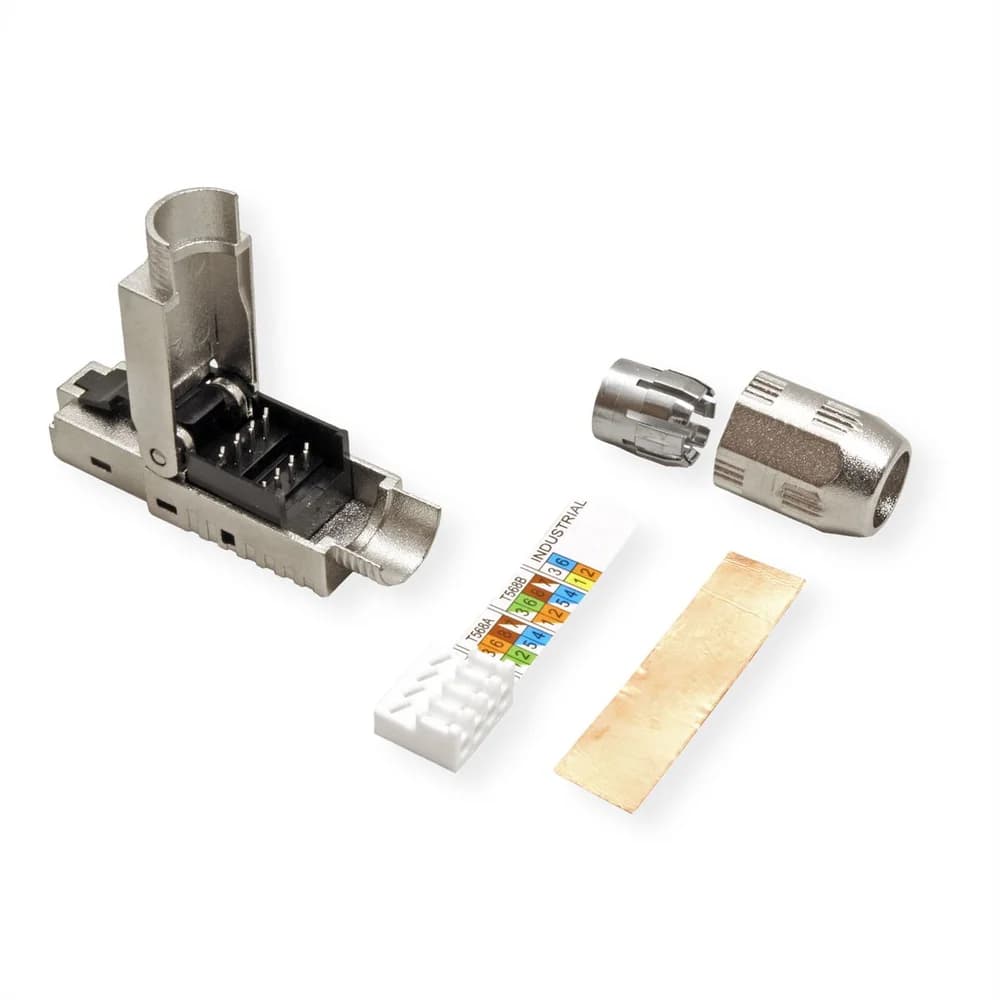

- Fast and easy tool-free installable unshielded RJ45 connector
- Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
- Compact cable manager for round AWG22/1-26/1(1/0.65-1/0.4mm) and stranded cable AWG 22/7-26/7 For cable OD:5.0-8.5mm
- For cable with outer diameter OD: 5.0 - 8.5mm

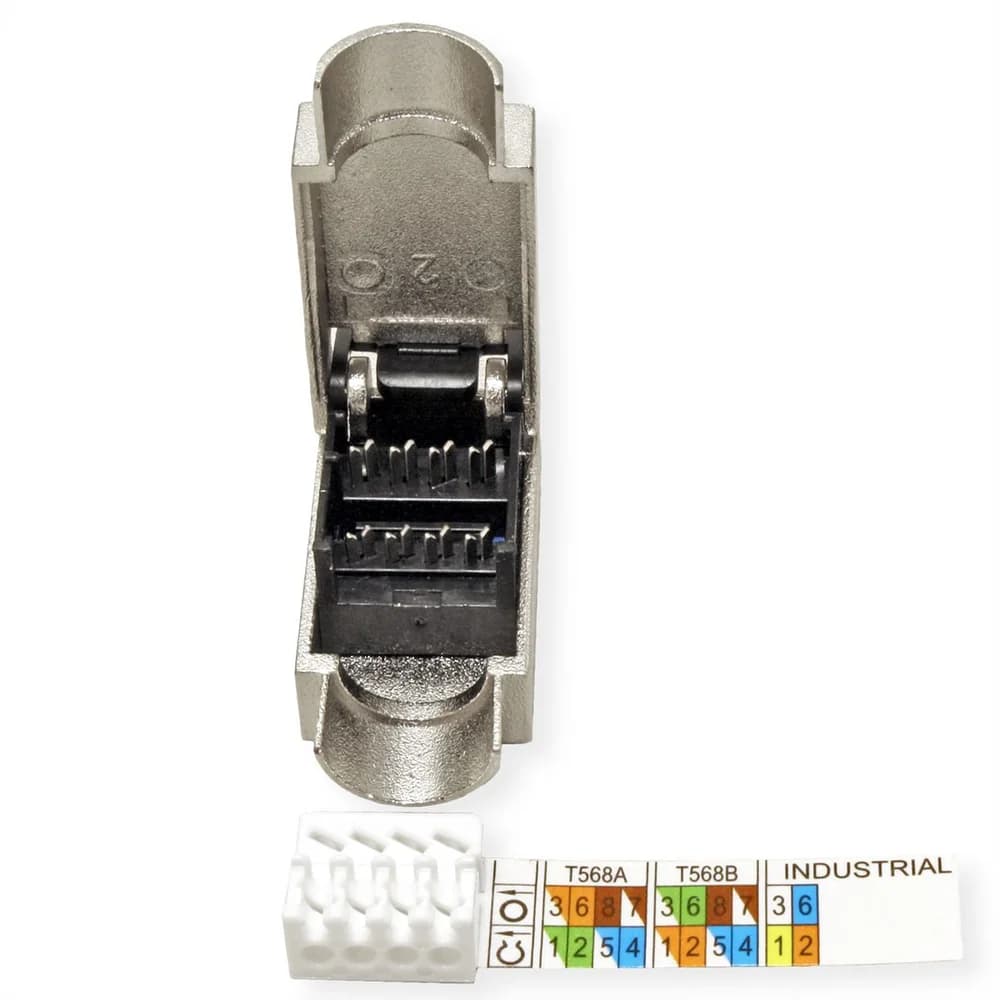

- Pair management according to TIA 568B and TIA 568A colour codes
- Robust zinc die-cast housing

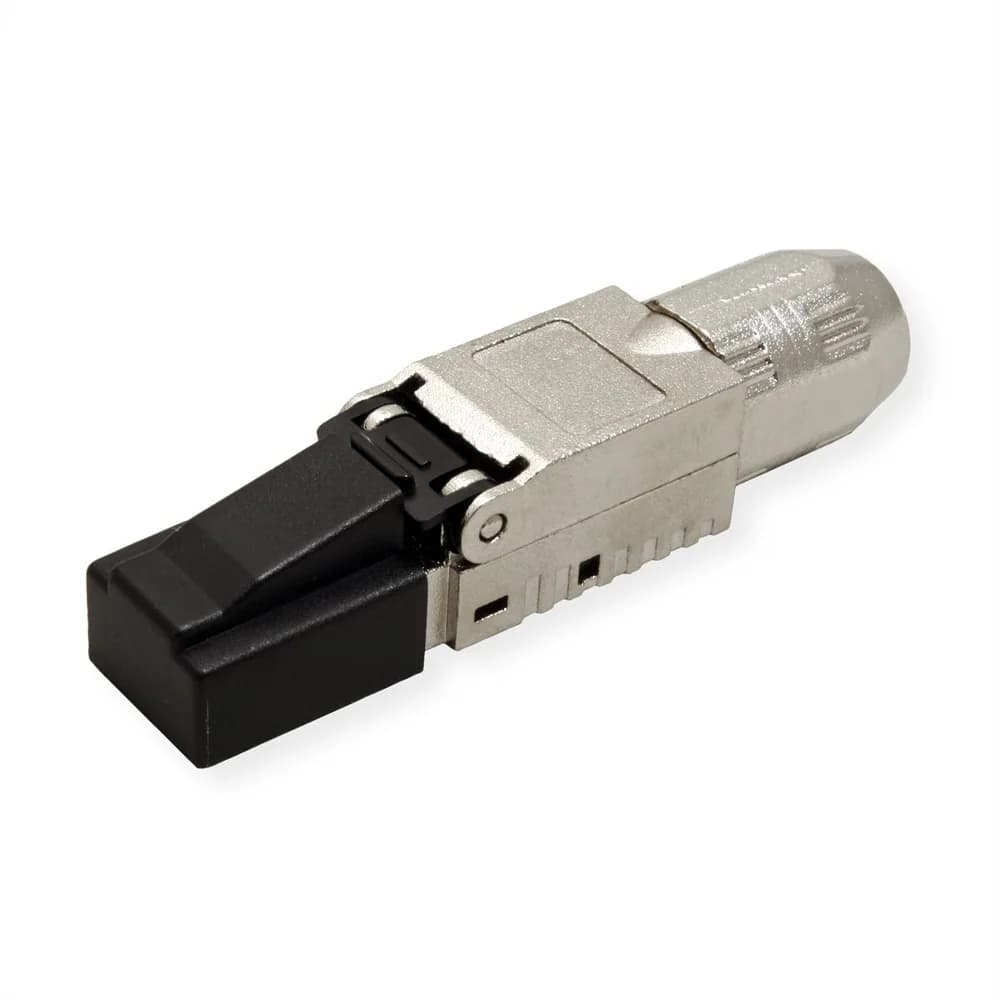

- Strain relief with cable tie and black transparent dust cup and boot
- Color: silver
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Shield contacts
- ja
- separate strain relief
- yes
- Height
- 13.4 mm
- Width
- 14.15 mm
- Depth
- 56.3 mm
- Weight
- 20.7 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 10 mm
- Depth of packaging (single piece)
- 60 mm
- Package weight (single piece)
- 0.03 kg
