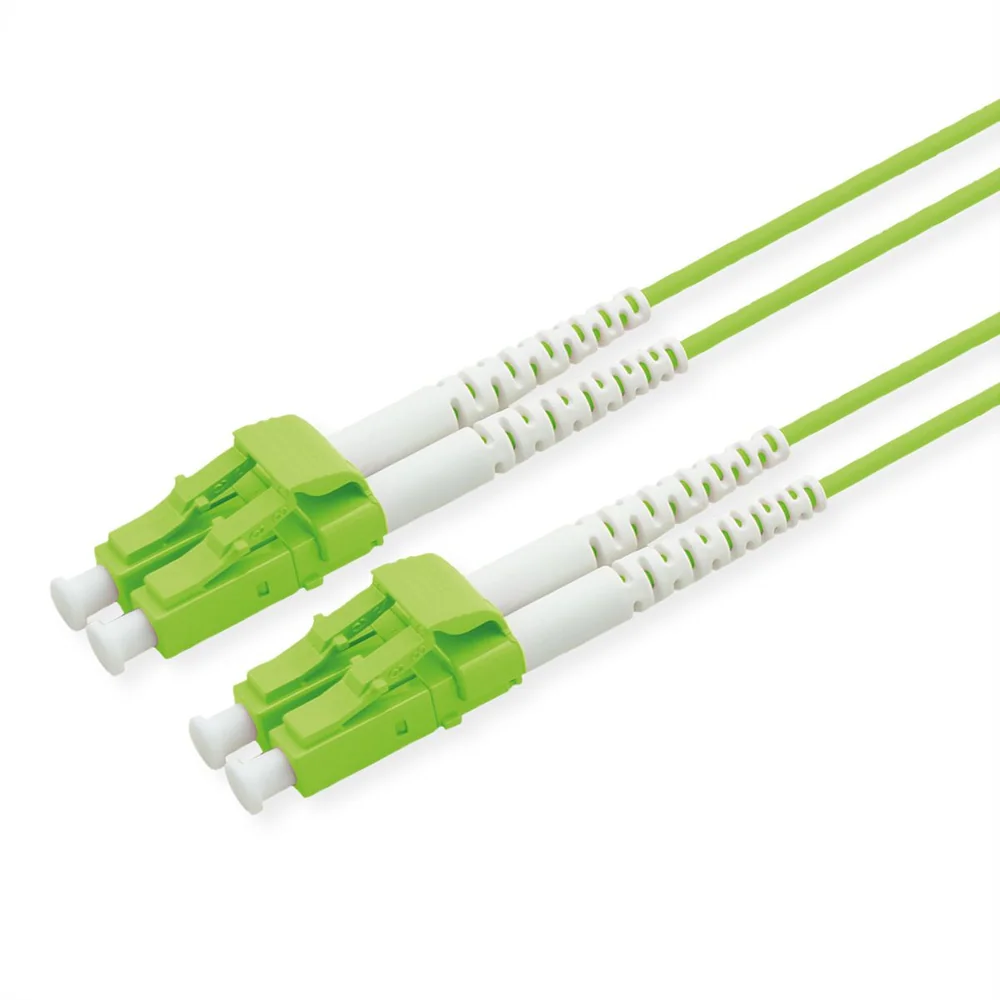

ROLINE Fibre Optic Jumper Cable, 50/125 µm, LC/LC, OM5, LSOH, Low-Loss, green, 1 m

ROLINE fiber optic patch cables in OM5 quality for high-performance fiber optic cabling in high-density environments.

• Security for the future! The OM5 fiber connector quality with very low insertion ensures an excellent quality at very high bandwidths of up to 100 Gbit/s Ethernet, Fibre Channel, and OIF applications with up to 150 meters - extends the system cost benefits to ultra long building backbones and medium length campus backbones.
• Material and clothing in ROLINE quality
• Duplex cables with fiber type Multimode 50/125µm, OM5
• The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:

- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB

• Attenuation 850nm ≤ 2.3 dB/km, 953nm ≤ 1.7 dB/km, 1300nm ≤ 0.6 dB/km
• IL (Insertion Loss) < 0.15dB
• RL (Return Loss) >= 30dB
• The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. Insertion loss of less than 0.15dB
• Outer diameter: 2.0mm
• UPC-polished connectors
• Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
