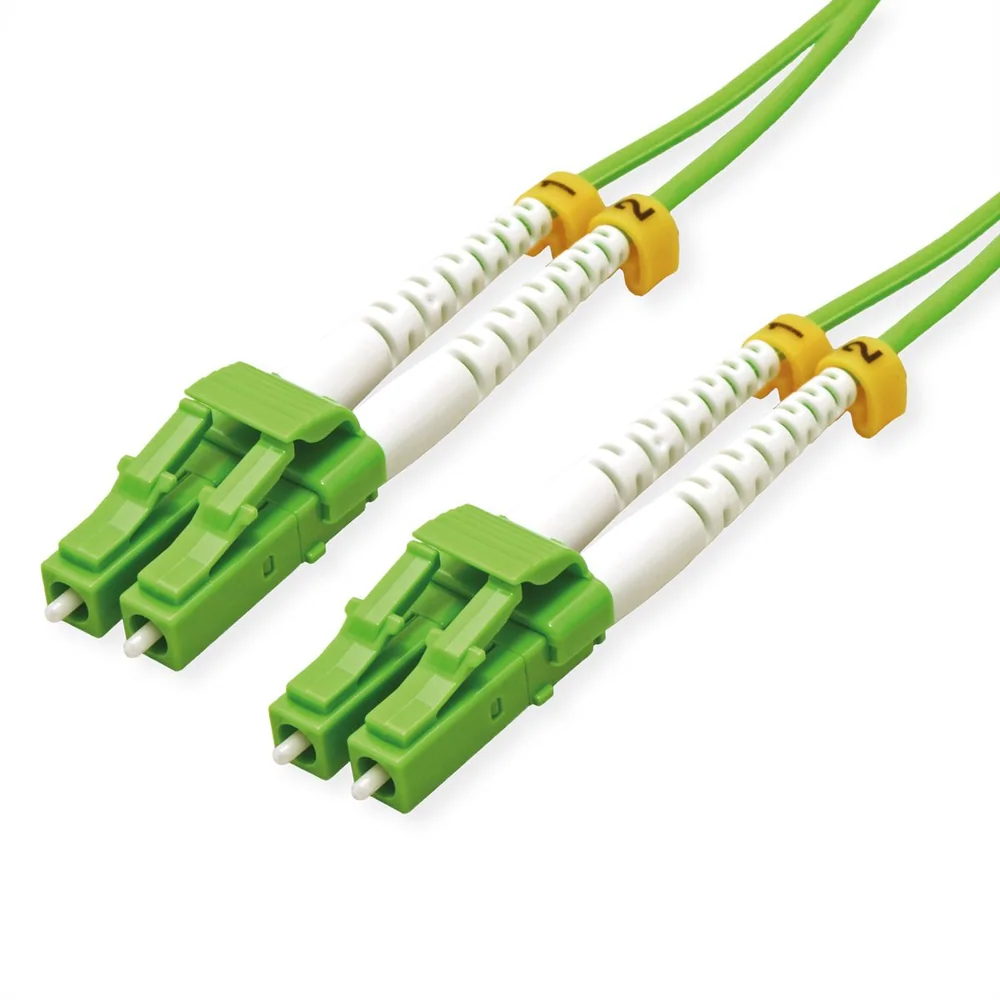

ROLINE Fibre Optic Jumper Cable, 50/125 µm, LC/LC, OM5, LSOH, green, 7 m
- Item number
- 21.15.9276-5
- Part number
- 21.15.9276
- EAN
- 7630049680081
- Brand
- ROLINE
- Weight
- 53.4 g
ROLINE fiber optic patch cables in OM5 quality for high-performance fiber optic cabling in high-density environments.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE fiber optic patch cables in OM5 quality for high-performance fiber optic cabling in high-density environments.
- Security for the future! The OM5 fiber connector quality with very low insertion ensures an excellent quality at very high bandwidths of up to 100 Gbit/s Ethernet, Fibre Channel, and OIF applications with up to 150 meters - extends the system cost benefits to ultra long building backbones and medium length campus backbones.
- Material and clothing in ROLINE quality
- Duplex cables with fiber type Multimode 50/125µm, OM5
- Attenuation 850nm ≤ 2.3 dB/km, 953nm ≤ 1.7 dB/km, 1300nm ≤ 0.6 dB/km
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. Insertion loss of less than 0.3dB
- Outer diameter: 2.0mm
- UPC-polished connectors
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM5
- Colour
- green
- Length
- 7 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM5
- Connection ports
- LC / LC
- Side 1 Connector Type
- LC
- side 1 connector ferrules
- UPC polished
- Side 2 Connector Type
- LC
- side 2 connector ferrules
- UPC polished
- Min. Bending radius, static
- 20 mm
- Min. Bending radius, dynamic
- 40 mm
- Colour (Cable)
- Lime Green
- Aramid strain relief
- yes
- External cable diameter
- 2 mm
- Mantle of external cable
- LS0H
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.3 dB
- Min. return loss
- 30 dB
- Weight
- 53.4 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.063 kg
