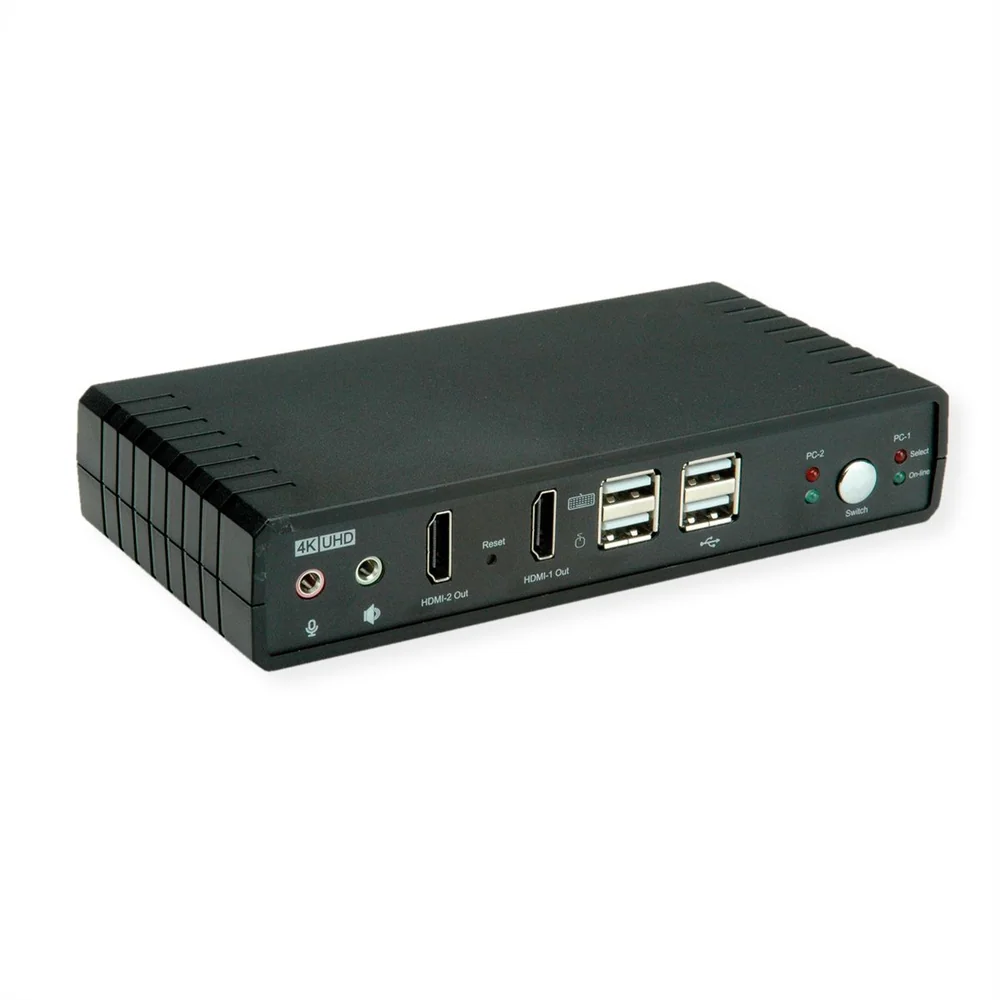

ROLINE Dual-Head 4K@60Hz HDMI KVM Switch, 2 PCs, DP/HDMI, Audio, with 2 Port USB 2.0 Hub
- Item number
- 14.01.3047-1
- Part number
- 14.01.3047
- EAN
- 7630049634794
- Brand
- ROLINE
- Weight
- 905 g
This ROLINE Dual-Head 4K@60Hz HDMI KVM Switch allows you to control two computers with DP/HDMI video output via one console with USB Keyboard, USB Mouse, 2x HDMI 4K@60Hz, 2 Port USB 2.0 Hub, Microphone and Speaker.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This ROLINE Dual-Head 4K@60Hz HDMI KVM Switch allows you to control two computers with DP/HDMI video output via one console with USB Keyboard, USB Mouse, 2x HDMI 4K@60Hz, 2 Port USB 2.0 Hub, Microphone and Speaker.
- Supports video resolution up to 4K@60Hz, 3840x2160@60Hz
- One Console controls two PC
- Supports 2x DisplayPort-/HDMI-in (PC side) and 2x HDMI-out (Console side)
- HDMI 2.0, Displayport 1.2 and HDCP 2.2 compliant
- 2x USB for Keyboard and Mouse and 2 port USB 2.0 Hub
- Audio/Microphone enabled
- Switching can be done with buttons and keyboard hotkeys
- LED status indication
- No software needed
- Supported Operating Systems: Windows, Mac, Linux
Console Side:
2x HDMI female for video output
2x USB Type A female for keyboard and mouse
2x USB Type A female for USB 2.0 hub
2x 3.5-mm audio phone jack
PC Side:
2x HDMI female for video input
2x DisplayPort female for video input
2x USB Type B female
4x 3.5-mm audio phone jack
Other: 2.1-mm barrel plug for power
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black
- Scope of delivery
- KVM Switch, Power Supply, 2x HDMI Cable, 2x DisplayPort Cable, 2x USB A-B Cable, 2x Audio-/Mic-Cable, User Manual
- Interface
- HDMI
- Audio
- Stereo Audio
- Inputs
- 2
- Outputs
- 2
- Quantity of PCs
- 2
- Supported PC-Systems
- USB
- PC: monitor connection
- 2x HDMI, 2x DP
- PC: mouse/keyboard connection
- 2x USB Type B
- Analogue Console: Monitor connection
- 2x HDMI
- Analogue Console: Mouse/Keyboard connection
- 2x USB Type A
- Analogue Console: Combi connection
- 2x USB 2.0 Type A
- Print button on device
- yes
- Switching over Hot Keys
- Keyboard
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 2
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160@60Hz
- Colour (Design profile)
- black
- Material (casing)
- metal
- Dimensions (HxWxD)
- 32 x 167 x 84 mm
- Power supply unit required
- yes
- Power supply output
- 5V 2A DC
- Technical particularity
- LEDs for easy status monitoring
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 60 °C
- Height
- 32 mm
- Width
- 167 mm
- Depth
- 84 mm
- Weight
- 905 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 210 mm
- Depth of packaging (single piece)
- 320 mm
- Package weight (single piece)
- 1 kg
