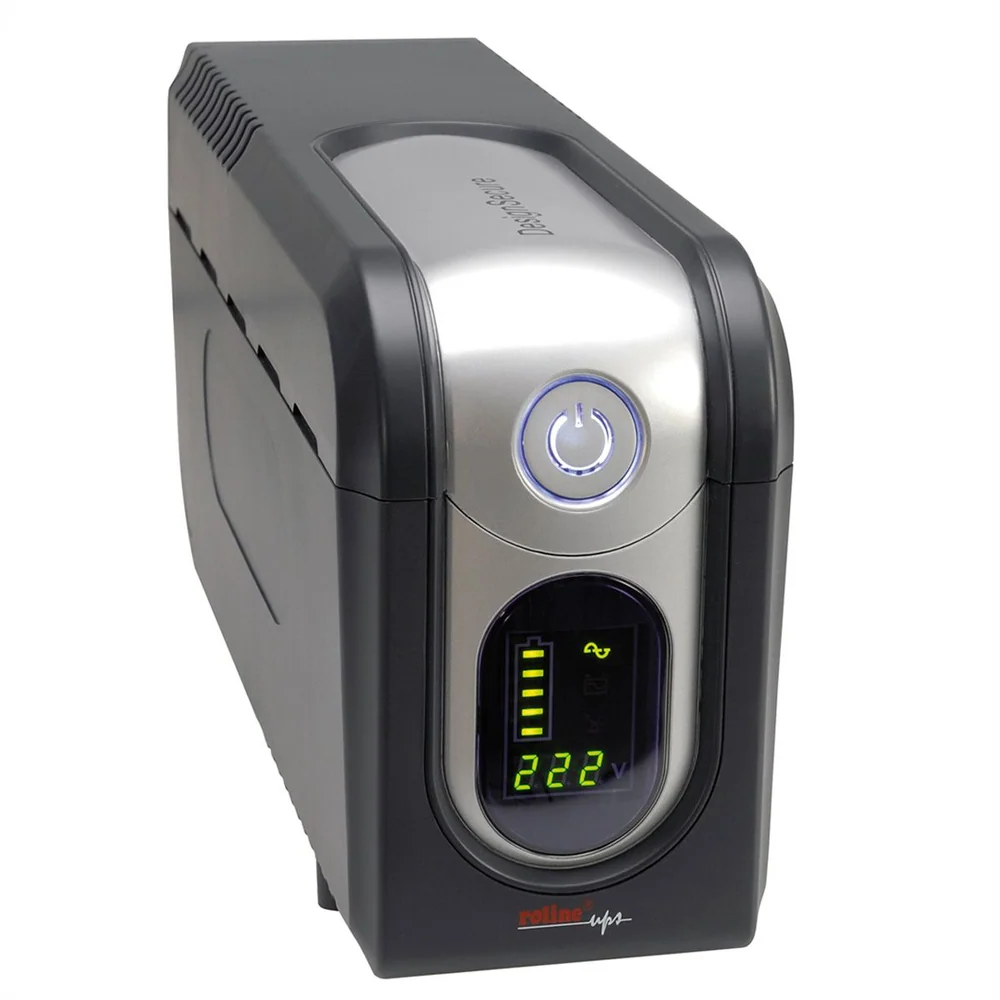

ROLINE DesignSecure 625
- Item number
- 19.40.1206
- Part number
- 19.40.1206
- EAN
- 7611990171026
- Brand
- ROLINE
- Weight
- 6400 g
Compact designed UPS in futuristic design For Workstations and PCs LineInteractive UPS AVR (Automatic Voltage Regulation) Digital status display Integrated overvoltage protection Telephone/Modem connections USB Port for…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Compact designed UPS in futuristic design
- For Workstations and PCs
- LineInteractive UPS
- AVR (Automatic Voltage Regulation)
- Digital status display
- Integrated overvoltage protection
- Telephone/Modem connections
- USB Port for advanced Power Management Software (incl, in content of delivery)
- EMI/RFI Noise Filter
- Dimensions (HxLxW) 168 x 105 x 334 mm
- Weight: 6.3 kg
- Backup Time: up to 4 Minutes
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- UPS
- Product type
- UPS Line Interactive
- Colour
- black / silver
- Scope of delivery
- UPS, Software, Cable Set
- Classification (IEC 62040-3)
- VI-SS-333
- UPS technology
- Line Interactive
- Power class
- 600 ... 900 VA
- Output (VA/W)
- 625 / 375
- Backup time
- 3 min
- Backup time full/half-load
- 3 / 6 min
- Dimensions (HxWxD)
- 168 x 105 x 334 mm
- Mounting form
- Tower
- Voltage (input)
- 230 V
- Voltage (output)
- 230 V
- Output voltage regulation
- yes
- Frequency
- 50 Hz
- Connector type (input)
- cold connector IEC320 C14
- Outputs
- 5
- Connector type (output)
- 2x 3 cold connector IEC320 C13
- Phase in/output
- 230V/230V / 50Hz
- Over current protection
- EMI,- RFI-Filter
- Max. quantity of delay expansion units
- 0
- Delay expansion unit
- --
- Slots for adapter card
- 0
- Slot for adapter card
- --
- Interface
- USB
- USB 2.0 Interface
- yes
- Hot swap batteries
- no
- Bypass
- no
- Additional over current protector
- Telephone/Fax
- Activity
- Display
- Activity LED
- --
- Activity Display
- yes
- incl.Management Software
- Windows
- Internal cooling
- Passive
- Ambient temperature
- 0-40 °C
- Mains connection
- Cold appliance connection
- Battery category
- Industrial battery
- Number of batteries
- 1 pieces
- Battery Voltage
- 12 V
- Battery Capacity
- 7 Ah
- Battery type
- Pack
- Battery
- built-in
- Battery technology
- Lead-acid
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 168 mm
- Width
- 105 mm
- Depth
- 334 mm
- Weight
- 6.4 kg
- Capacity (VA / W)
- minutes
- 100
- 50
- 200
- 19
- 300
- 8
- 425
- 5
- 525
- 4
- 625
- 3
Packaging
- Height of packaging (single piece)
- 280 mm
- Width of packaging (single piece)
- 190 mm
- Depth of packaging (single piece)
- 420 mm
- Package weight (single piece)
- 6.954 kg
