ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
- Item number
- 21.17.0328-20
- Part number
- 21.17.0328
- EAN
- 7630049679252
- Brand
- ROLINE
- Weight
- 16 g
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified

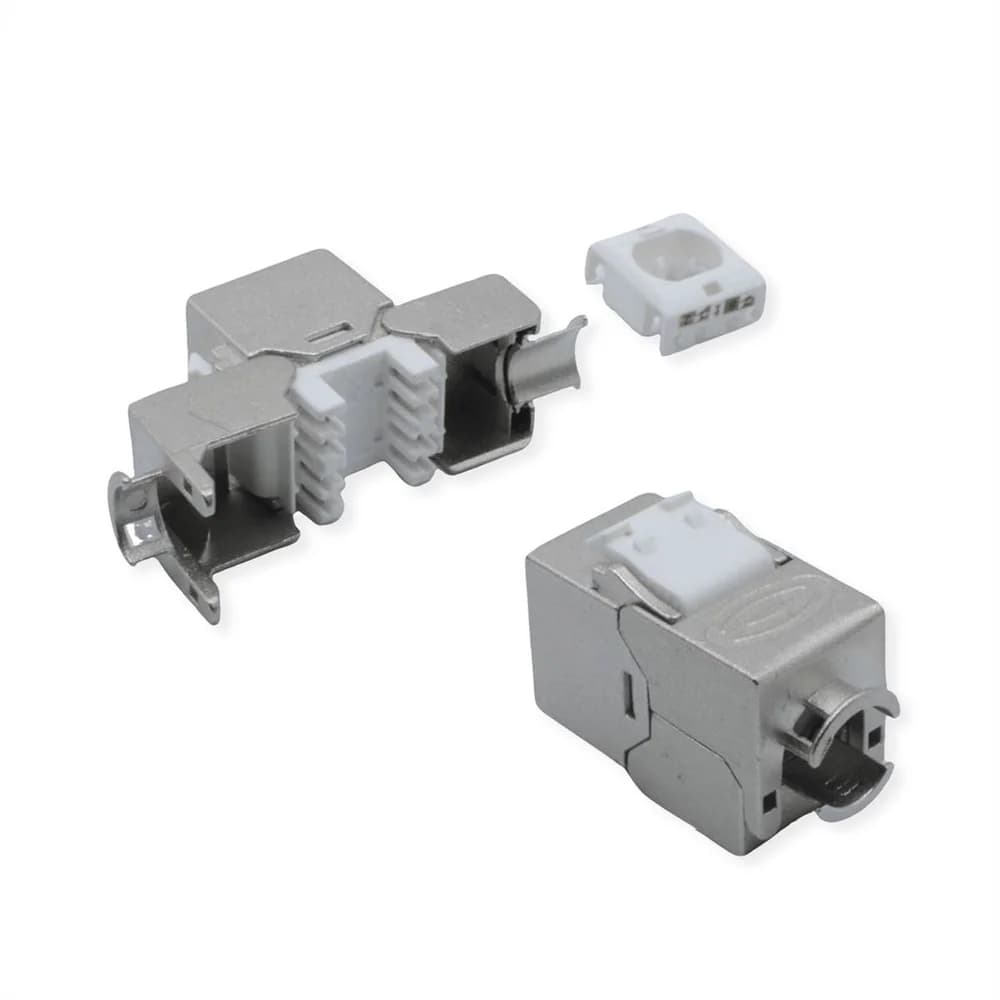

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module)
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at and POE++ per IEEE 802.3bt
- For cables with AWG 22-26
- For cables with OD: 5.0-8.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B

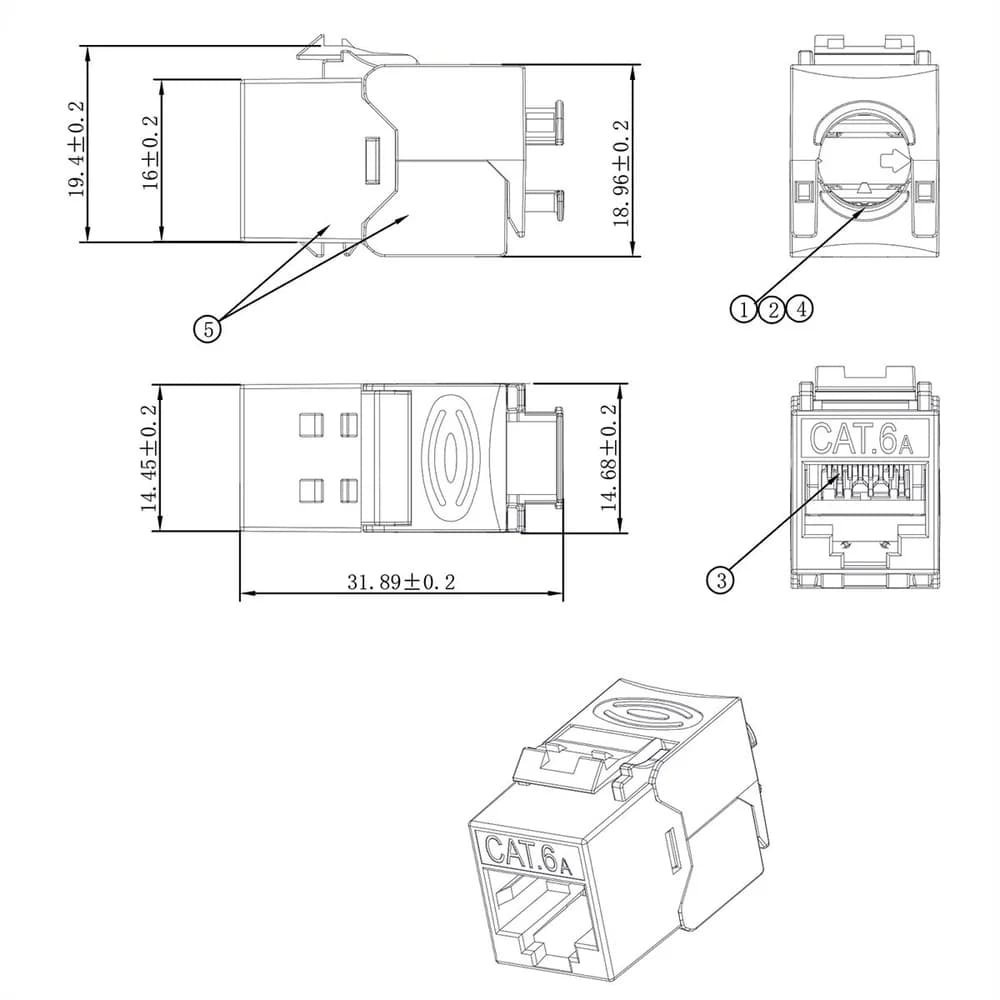

- Dimensions (H x W x D): 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
GHMT certified
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Scope of delivery
- Keystone
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Component-Level certified
- yes
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Dimensions (HxWxD)
- 18.96 x 14.68 x 31.89 mm (+/- 0.2 mm)
- Technical particularity
- GHMT certified
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 70 °C
- Height
- 18.96 mm
- Width
- 14.68 mm
- Depth
- 31.89 mm
- Weight
- 16 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.005 kg
