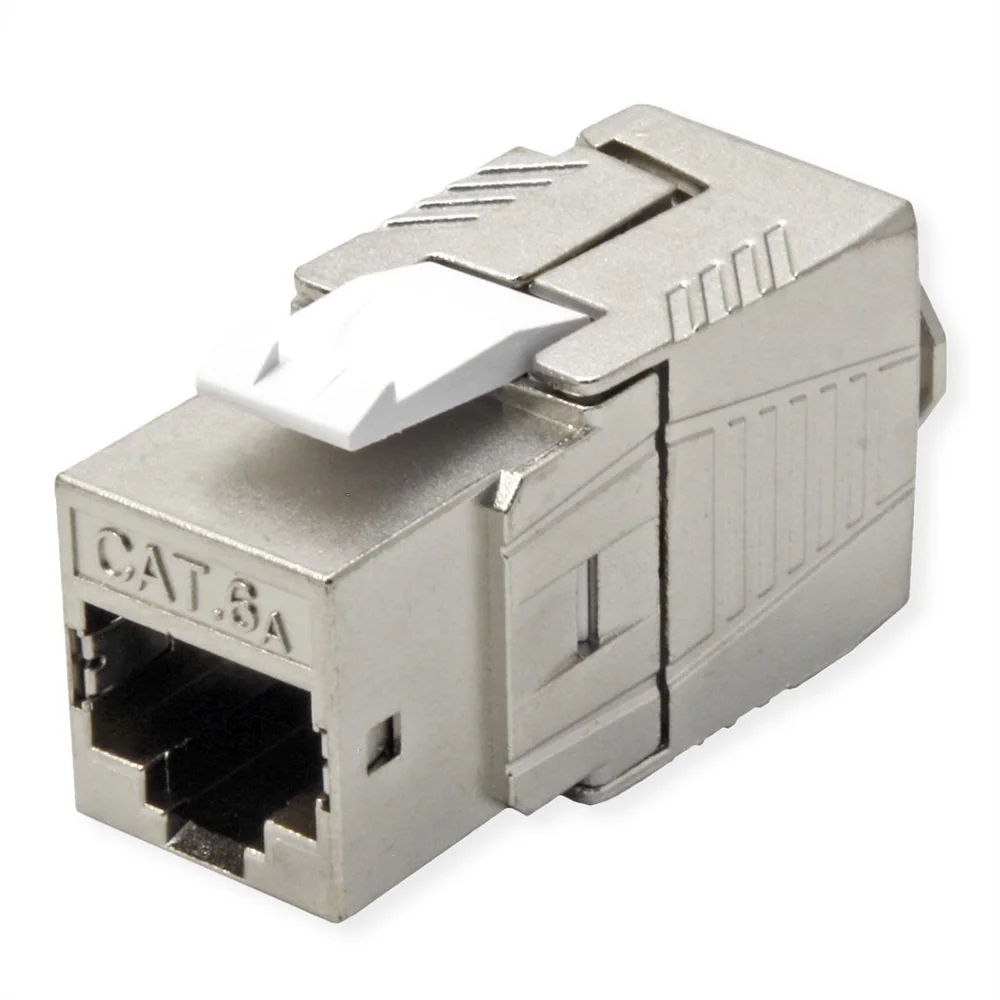

ROLINE Cat.6A (Class EA) Keystone, RJ-45, shielded, tool-free, GHMT, silver
- Item number
- 21.17.0327-20
- Part number
- 21.17.0327
- EAN
- 7630049688902
- Brand
- ROLINE
- Weight
- 22 g
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified
- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 23-26
- For cables with OD: 5.5-9.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 41.6×16.5×20.3mm
GHMT certified
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Technical particularity
- GHMT certified
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 20.3 mm
- Width
- 16.5 mm
- Depth
- 41.6 mm
- Weight
- 22 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 40 mm
- Package weight (single piece)
- 0.02 kg
